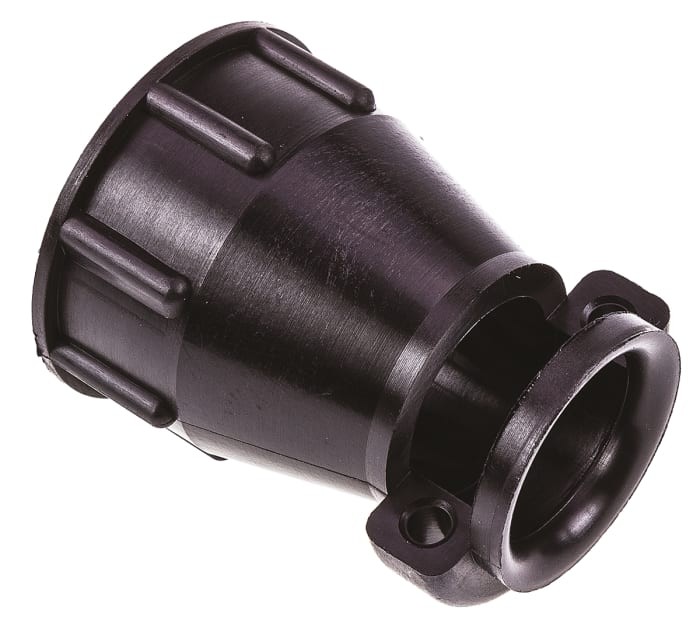

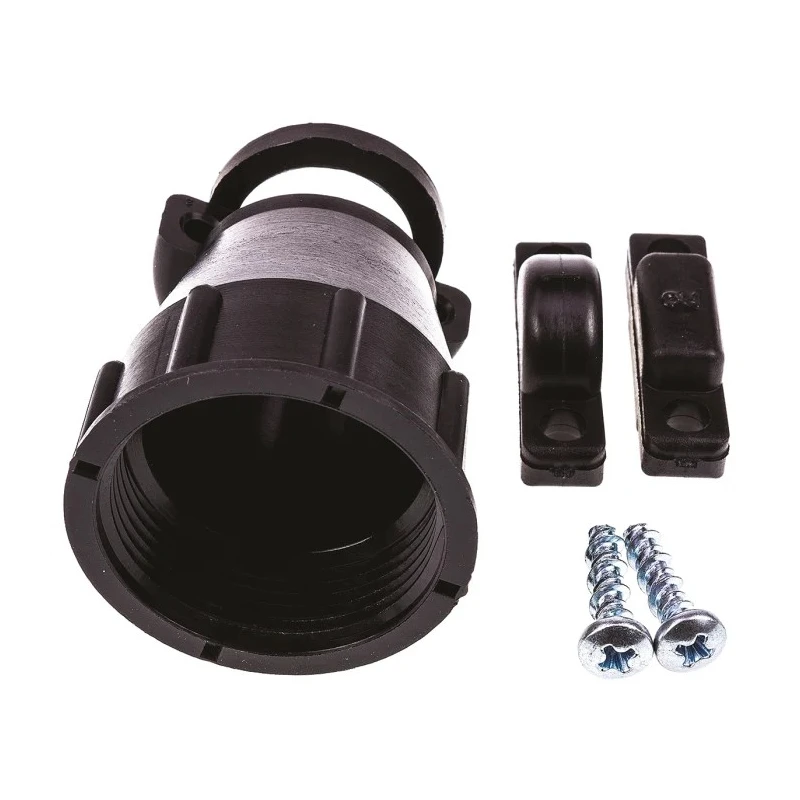

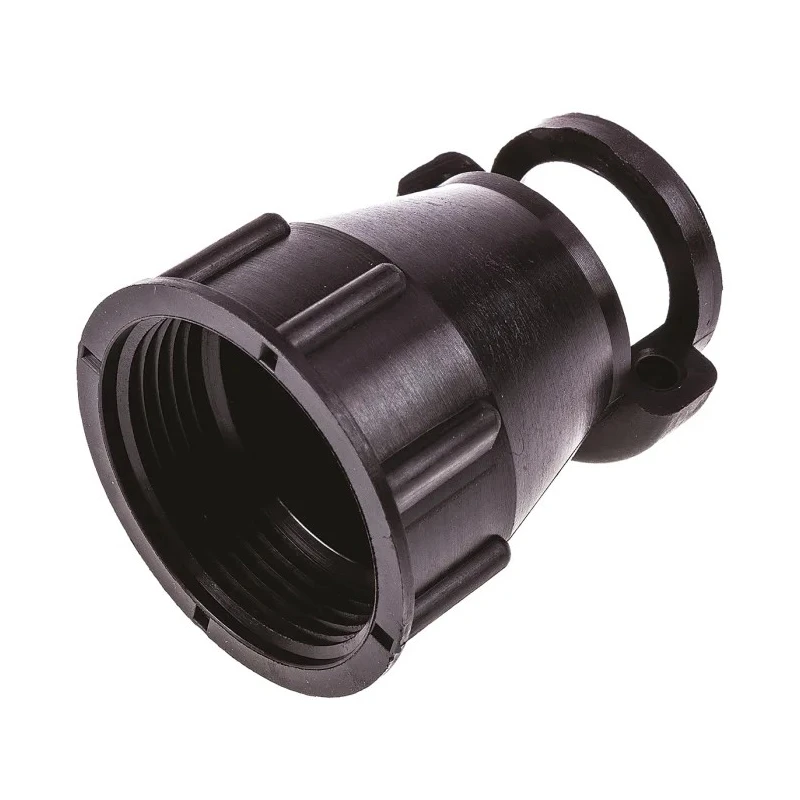

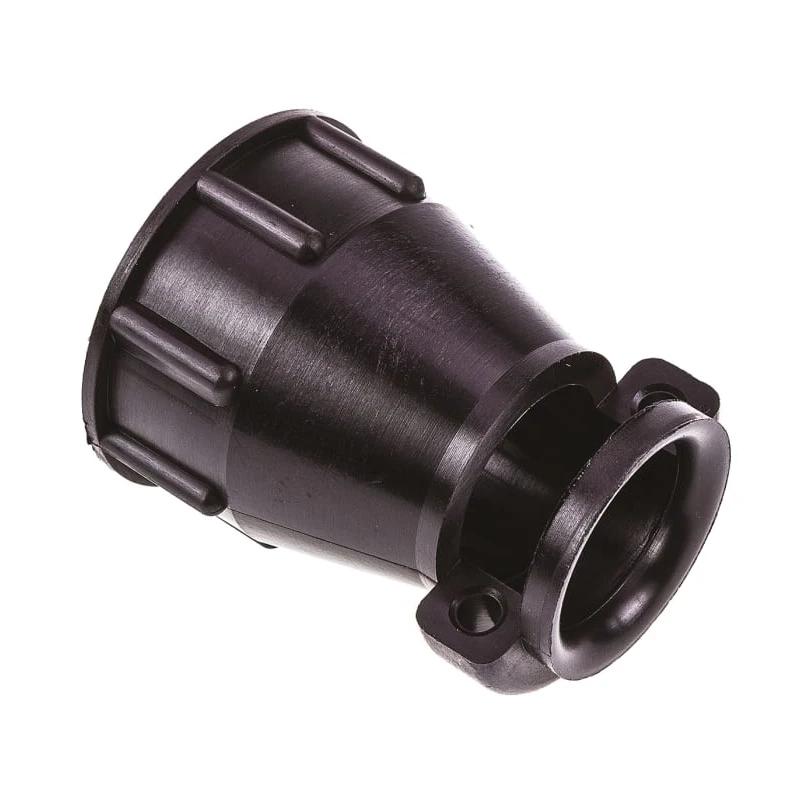

TE Connectivity Circular Connector Backshell Strain Relief Shell Size 17 Black 35.76mm Length CPC Series 206070-8

TE Connectivity 206070-8 circular connector backshell strain relief is a high-quality cable clamp designed for use with CPC series circular connectors. It is engineered from thermoplastic materials that offer durable performance and resistance in demanding industrial environments. The product features a shell size of 17 and an overall length of 35.76mm, making it suitable for a wide range of cabling needs.

This backshell strain relief efficiently accommodates cable bundles up to 11.51mm in diameter, providing robust mechanical support and protecting cables from strain and damage over extended use. The thread size of 15/16-20 UNEF-2B enables easy and secure mounting to all CPC series receptacles and plugs.

The adjustable clamping mechanism allows flexibility by inverting or replacing clamping inserts to match various cable diameters. Its design includes a thread assist and positive detent coupling system for quick connection and disconnection while maintaining a reliable mechanical lock. Additionally, the polarized design eliminates mating errors by ensuring the connector halves fit correctly.

The connector backshell supports several contact types including Type-III+, size 20 signal, Type-XII power, and AMP POWERBAND contacts. This versatility facilitates its use across signal, power, or combined connectors in industrial, aerospace, agricultural, communications, HVAC, transportation, and more.

Compliant with industry standards such as RoHS, ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and UL94 V-0 flammability rating, the TE Connectivity 206070-8 backshell strain relief ensures safety and environmental responsibility.

Constructed from durable thermoplastic material ensuring longevity and reliability. Designed to accommodate a maximum cable bundle diameter of 11.51mm for versatile applications. Features thread size of 15/16-20 UNEF-2B for secure attachment to CPC series connectors.

Provides effective strain relief compatible with all CPC series receptacles and plugs. Clamping areas are adjustable through inversion or changing of clamping inserts to suit varied cable sizes. Quick connect and disconnect capability with thread assist and positive detent coupling.

Polarized design for correct mating of connector halves avoiding misconnection. Supports Type-III+, size 20 signal contacts, Type-XII power contacts, and AMP POWERBAND contacts for diverse signal and power needs. Meets RoHS standards and certifications including ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and UL94 V-0 flame retardancy rating.

The TE Connectivity CPC series backshell strain relief is ideal for industrial, aerospace, defense, agricultural machinery, communications, networking, construction, HVAC, industrial automation, motor vehicles, off-road vehicles, rail, and transit applications. Its compliance with strict safety and environmental standards ensures reliability in critical environments.
