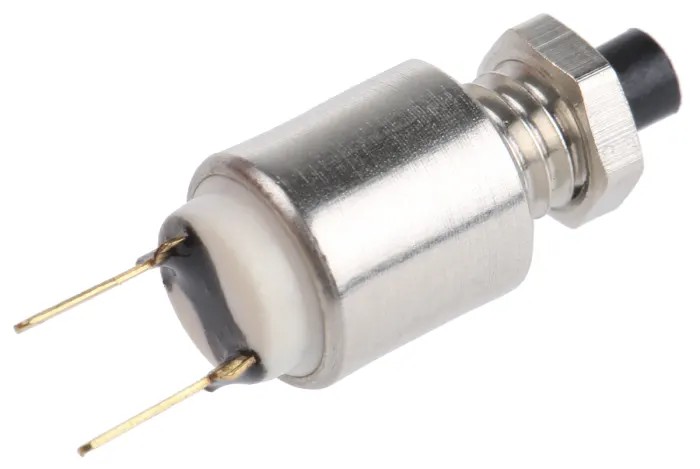

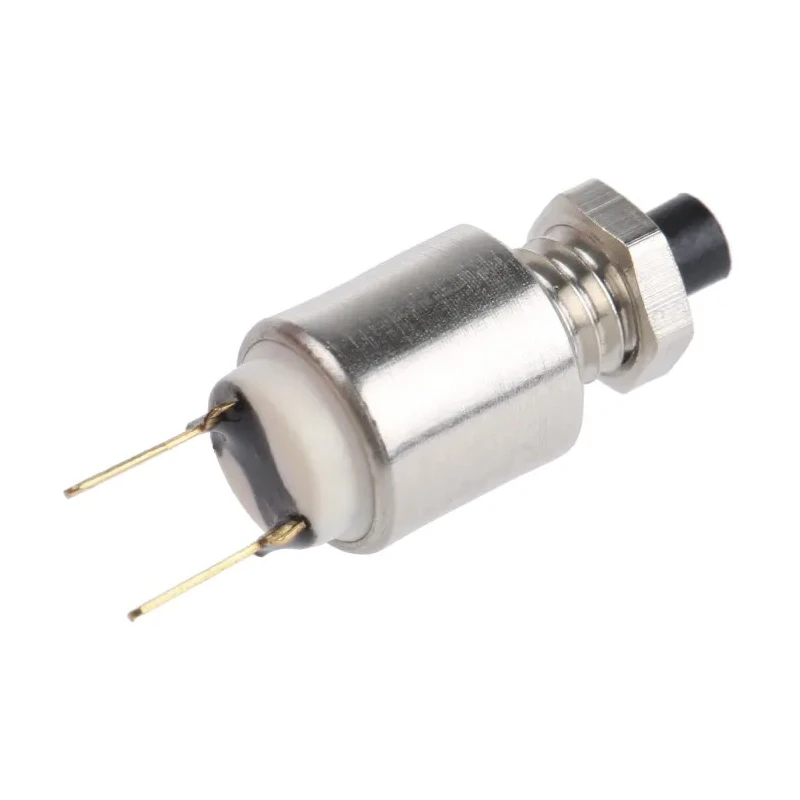

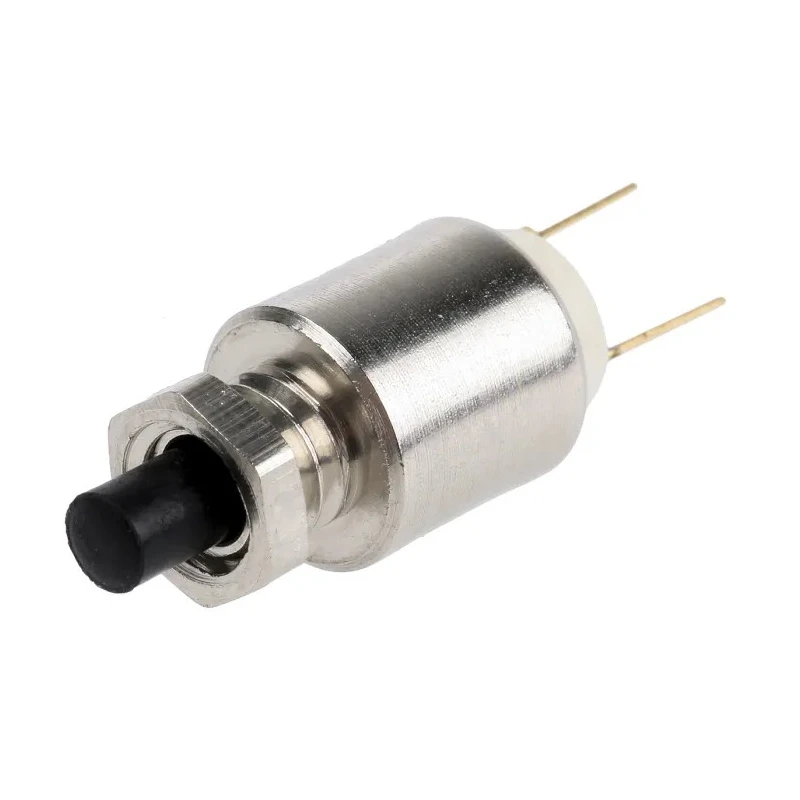

APEM 9000 Series Miniature Momentary Push Button Switch, PCB Mount, 4.2 mm Cutout, SPST, Model 9233CD

APEM 9233CD is a high-quality miniature push button switch from the 9000 Series by APEM. This switch is momentary in operation and features a single pole single throw (SPST) contact configuration, ideal for a wide range of electronic and industrial applications.

Its compact design includes a 4.2 mm panel cutout size which facilitates easy installation in devices requiring minimal footprint. The switch is designed primarily for printed circuit board (PCB) mounting using through-hole terminals that offer excellent mechanical and electrical reliability.

The actuator style is a robust plunger made of polyamide, glass filled material, supported by a brass nickel plated bushing to enhance wear resistance and durability. Within operational temperatures ranging from -30°C to 65°C, the 9233CD maintains consistent performance.

Electrical performance is emphasized with a contact current rating of 100mA and an electrical life expectancy of up to 250,000 cycles, making it suitable for applications where frequent switching is required. The switch complies with RoHS standards, ensuring it meets environmental safety requirements.

The switch features a brass nickel plated bushing for durability. Polyamide, glass filled plunger actuator provides reliable switching. PCB mounting with through hole terminals for secure connection. Momentary SPST contact configuration suits momentary control needs.

Operates within a temperature range from -30°C to 65°C. Electrical life cycle rating of 250,000 ensures longevity. RoHS compliant for environmental safety. 100mA contact current rating for low power circuits. 4.2 mm panel cutout enables compact mounting applications.

Typical applications of the APEM 9233CD switch include electronic instrumentation, control panels, automation equipment, and PCB assemblies in industrial, laboratory, and commercial environments.

Its compact size and reliable operation make it an excellent choice for designers looking for durable, momentary push button switches with precise electrical specifications. Explore more miniature switches and components in the electronics and electrical category at EnvMart for diverse application needs.
