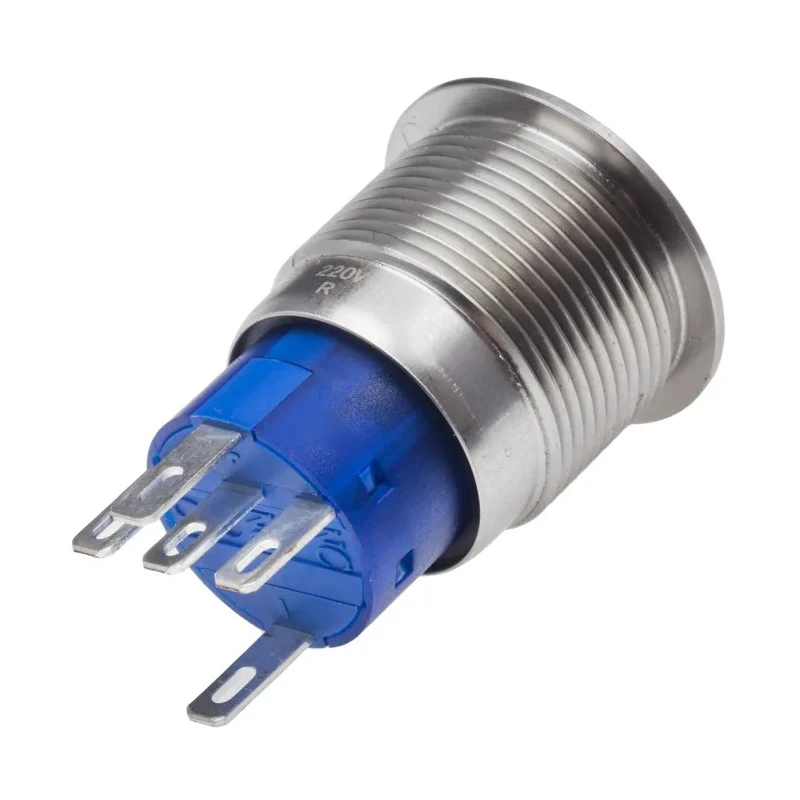

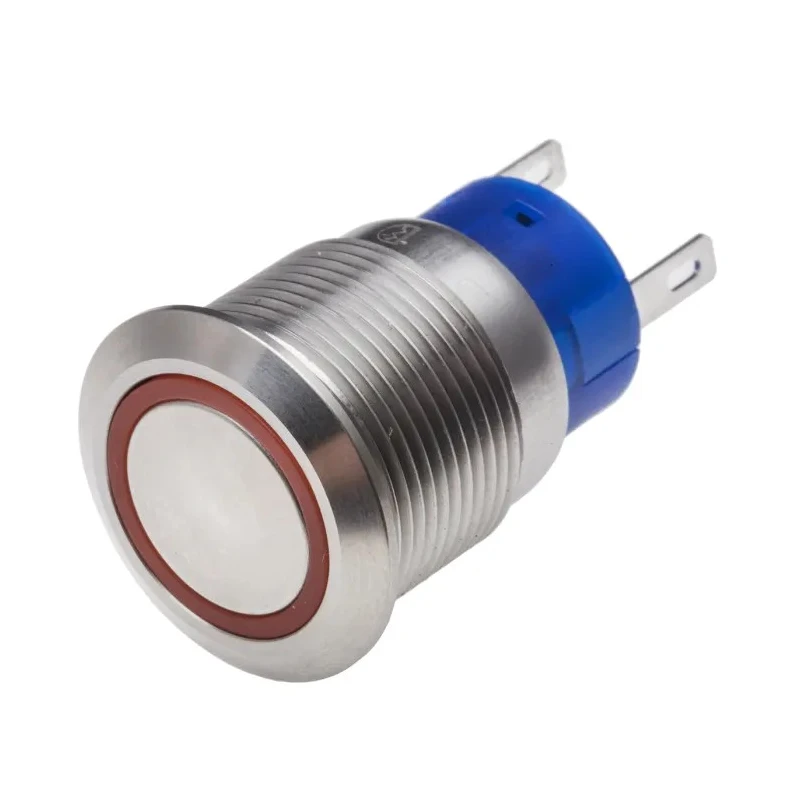

RS PRO Illuminated Latching Push Button Switch Panel Mount SPDT Red LED 19.2 mm Cutout IP67 250V 5A 111-5822
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-5822 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a silver actuator with red LED illumination for clear status indication.
- Constructed to IP67 rating ensuring protection against dust and water immersion.
- Supports contact voltages of 250 V AC and DC with a 5A contact current rating.
- Designed for reliable latching operation with 1 NO/1 NC switch configuration.
- Operates within a temperature range of -20°C to 55°C suitable for industrial environments.
- Complies with cULus Recognized, ENEC 18, and IK10 standards for durability and safety.
- Terminals configured for solder pin connections allowing secure installation.
- Robust stainless-steel construction suitable for medical, industrial, and communications equipment.
Product Description
RS PRO 111-5822 is a premium illuminated latching push button switch featuring a 19.2 mm panel cutout size, SPDT contact configuration, and red LED indicator. This switch is designed for panel mounting applications requiring a reliable latching operation, capable of handling 250 V AC/DC voltages with a contact current of 5A.
The actuator is silver-colored and styled round for ergonomic use, while the product boasts an IP67 ingress protection rating ensuring resistance to dust and immersion in water. Operating temperature ranges from -20°C to 55°C, making it suitable for a variety of industrial and commercial uses.
This push button switch is cULus Recognized, certified to ENEC 18, and rated IK10, confirming its high durability standards. The switch employs silver-plated copper contacts which provide firm, stable connections. It is ideal for applications including medical equipment, industrial control gear, and communications equipment, catering to demanding operating environments.
Silver actuator with red LED illumination for clear operational indication. Panel mounting with 19.2 mm cutout for compact installation. SPDT contact configuration enabling versatile circuit control. IP67 rated enclosure for dust and water ingress protection.
Contact current rated at 5A, suitable for robust electrical loads. Temperature operation from -20°C to 55°C supporting diverse environments. Compliant with cULus, ENEC 18, and IK10 certifications ensuring quality and safety.
Solder pin terminals for secure and stable electrical connections.
This switch is widely used in industrial automation, medical devices, communication systems, and other precision equipment. Its compact size and latching mechanism provide reliable manual switching in demanding applications.
Explore more high-quality push button switches and components at EnvMart to match your industrial and electrical control needs.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile circuit control.
It can operate at a maximum temperature of 55°C, making it suitable for various industrial environments.
It has an IP67 rating, ensuring protection against dust and immersion in water.
The required panel cutout size for installation is 19.2 mm.
The contact current rating is 5A, suitable for robust electrical loads.
It is equipped with solder pin terminals, allowing for secure and stable electrical connections.
This switch is cULus Recognized, certified to ENEC 18, and rated IK10, confirming its durability and safety standards.
The minimum operating temperature is -20°C, enabling its use in colder environments.
The LED indicator on this model is red, providing clear operational indication.
It features a round actuator style, designed for ergonomic use.
This push button switch is suitable for applications in medical equipment, industrial control gear, and communications equipment.
It utilizes a latching switch operation, allowing for reliable manual switching.
