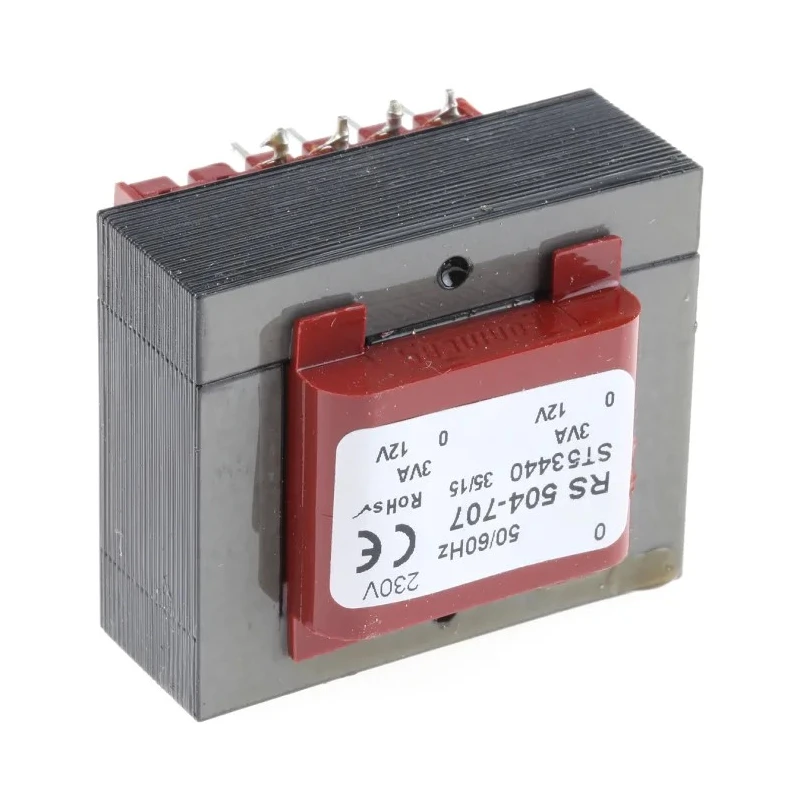

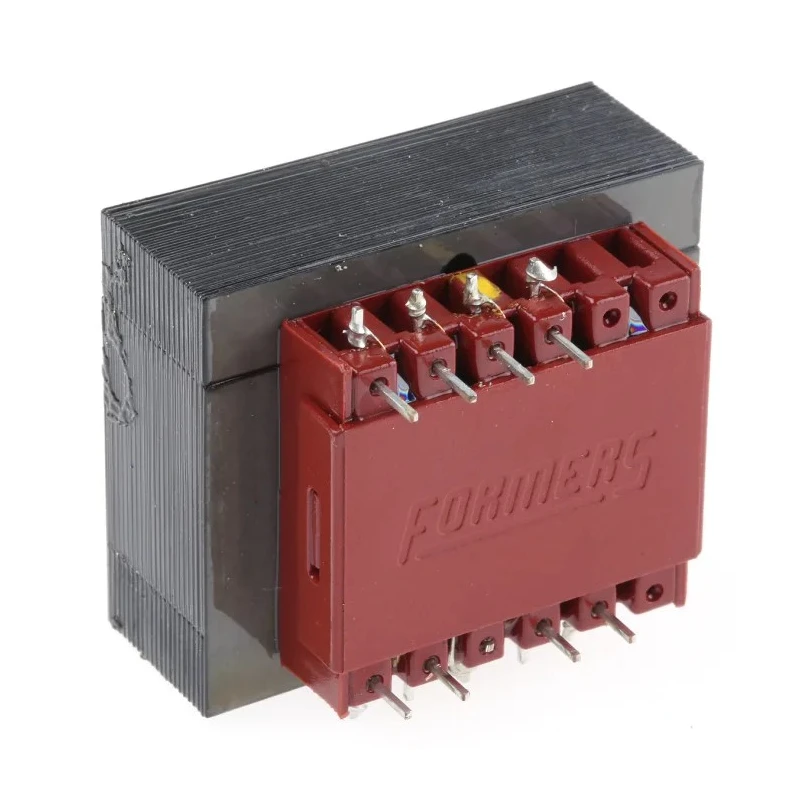

RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer, UL94-V0 Flame Retardant, Thermal Fuse, IEC/BS/EN 61558-1 504-707

RS PRO 504-707 6 to 15 V ac 2 Output Through Hole PCB Transformer is engineered for industrial and commercial electronic applications requiring reliable, compact power conversion on printed circuit boards. Its UL94-V0 rated flame retardant materials significantly enhance circuit safety and reduce fire risks.

This PCB transformer includes an integrated thermal fuse in the primary winding, providing robust protection against overloads and short circuits. The unit's dual independent secondary windings are configurable in series or parallel to deliver a flexible output voltage range of 6 to 15 V ac.

Designed for a 230 V ac single or twin primary input at 50/60Hz frequencies, the transformer ensures stable performance in a wide range of environments with a maximum operating temperature of 130°C. The fully shrouded winding design and extra mounting pins facilitate secure through-hole board installation with excellent electrical isolation rated at 4kVrms.

Compliance with stringent international standards including AS/NZS 61558.1, IEC/BS/EN 61558-1, and RoHS directives guarantees quality and safety. The device has been thoroughly tested according to EN 61558 (EN 60742) and EN 60950 standards, making it suitable for use in electronics industrial manufacturing, laboratory equipment, and commercial power supplies.

The transformer's double-section metric bobbin and full varnish impregnation ensure mechanical stability and protection against environmental stresses, supporting longevity and efficiency in demanding applications.

Manufactured in Poland under stringent quality controls, this product maintains new condition and represents dependable performance in electrical power distribution settings. This transformer features UL94-V0 flame retardant materials ensuring safety and reliability.

Equipped with a thermal fuse in the primary winding for overload and short circuit protection. Designed for use with a 230 V ac primary voltage and provides dual independent secondary outputs of 6 to 15 V ac. Compact dimensions of 43mm length, 36mm width, and 33mm depth suit PCB through-hole mounting.

Supports operating frequencies between 50Hz and 60Hz with maximum operating temperature of 130°C. Fully shrouded windings and extra pins secure mounting and electrical isolation rated up to 4kVrms. Meets multiple standards including AS/NZS 61558.1, IEC/BS/EN 61558-1 and RoHS compliance.

Designed and tested in adherence to EN 61558 (EN 60742) and EN 60950 standards. Double section metric bobbin construction with full varnish impregnation enhances durability and performance. Manufactured in Poland ensuring high quality and consistent product condition as new.
