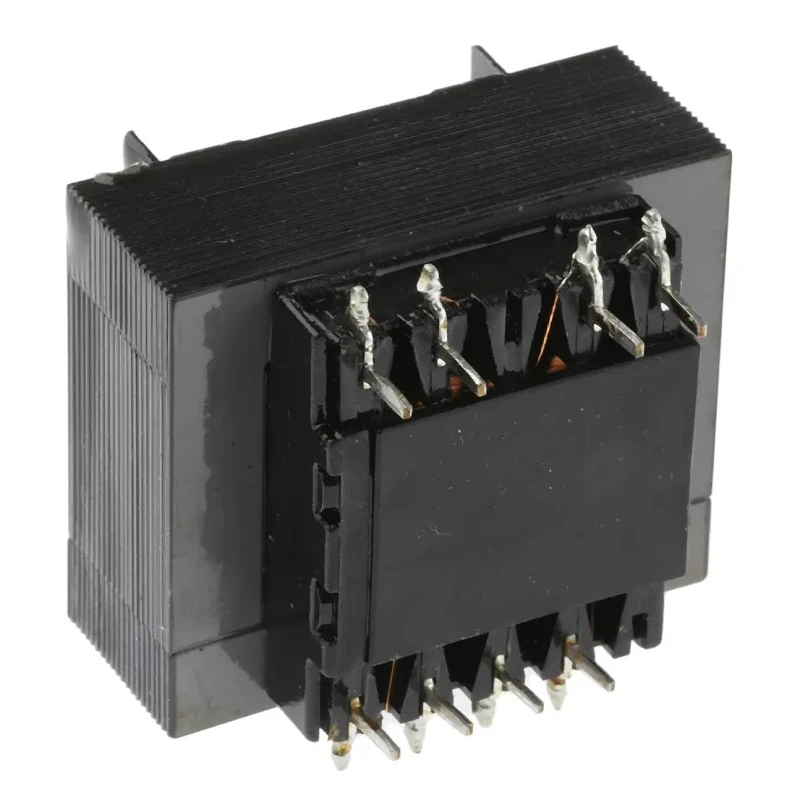

RS PRO PCB Transformer 24 V ac 2 Output Through Hole Mount 12VA Power 50-60Hz Frequency Model 504-385

RS PRO 504-385 PCB Transformer is a high quality power transformer designed for PCB mount applications. It features a secondary output voltage of 24 V ac with two output channels. The primary windings consist of twin 115 V ac rated for operation either in series to provide 230 V or in parallel for 115 V, ensuring versatile input voltage compatibility at 50/60 Hz frequencies.

The transformer is manufactured with fully shrouded bobbins and an open laminated frame, providing electrical safety and mechanical robustness. Additionally, it undergoes 100% electrical and flash testing in accordance with BS3535 and EN 60742 standards, ensuring reliability and compliance with critical international standards like ASNZS 61558.1, IECBSEN 615581, CE, and RoHS.

The full varnish impregnation and double section metric bobbin construction guarantee excellent insulation and long-term durability under a maximum operating temperature of 130°C. Its compact form factor with dimensions 38 mm length, 35 mm width, and 30 mm depth support integration into space-constrained electronic assemblies.

This transformer finds ideal uses in industrial, electronic component assemblies, power supply manufacture, and in environments requiring robust electrical isolation and efficient power conversion. The through hole mounting style facilitates secure PCB installation.

Operates reliably within 50 to 60 Hz frequency range. Primary windings offer flexibility for dual voltage input configurations. Compliance with multiple international safety and environmental standards. Compact and lightweight design at only 400 grams.

Suitable for industrial and commercial electronic equipment requiring PCB power transformers.

RS PRO products are engineered for quality and compliance, making them well suited for professional electronic design and manufacturing applications. Browse EnvMart for a wide range of industrial components and trusted RS PRO brands.
