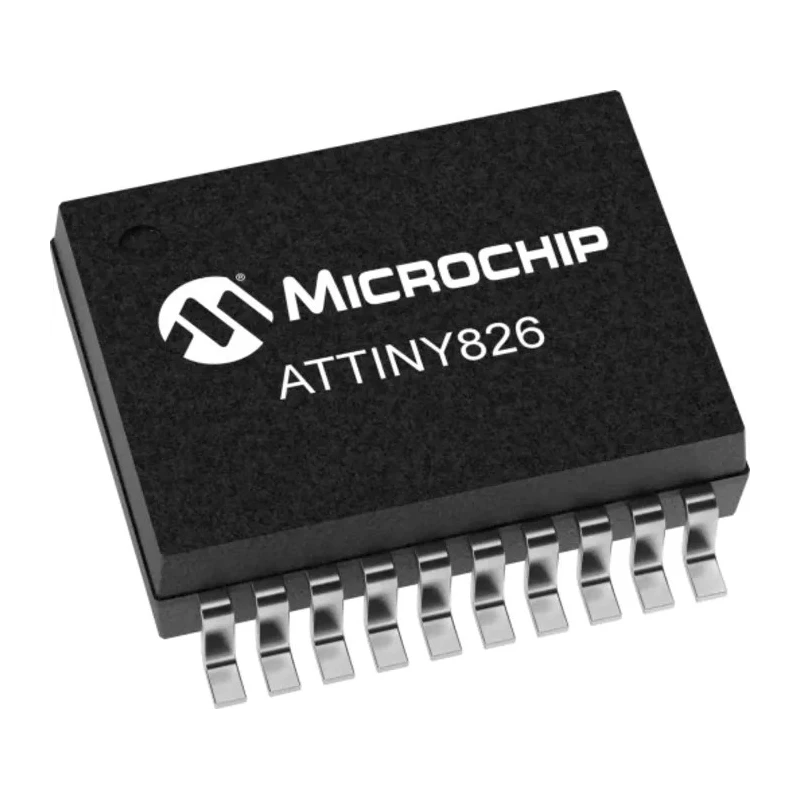

Microchip 12 bit AVR ATTINY Microcontroller, 20 MHz, 8kB FLASH, 20-Pin SSOP ATTINY826-XU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ATTINY826-XU |
| Width | 5.3mm |
| Mount Type | Surface |
| Series | ATTINY |
| Package Type | SSOP |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 1 |
| Number of Timers | 3 |
| Instruction Set Architecture | AVR |
| ADCs | 15 x 12 Bit |
| Program Memory Type | FLASH |
| Serial communication interfaces | 2x USART, SPI, I2C |
Key Features
- Features a 12-bit AVR CPU core with hardware multiplier providing efficient processing.
- Includes 8 KB of FLASH program memory, 1 KB SRAM, and 128 Bytes EEPROM for data storage.
- Operates within a voltage range of 1.8 V to 5.5 V, suitable for low power applications.
- Packaging in a 20-pin SSOP surface mount package with 5.3 mm width.
- Provides 15 channels of 12-bit ADCs and 1 analog comparator with internal DAC reference for precise analog measurements.
- Incorporates advanced peripherals like Configurable Custom Logic and 6-channel Event System for flexible control.
- Meets REACH and RoHS3 environmental standards ensuring compliance and sustainability.
Product Description
Microchip ATTINY826-XU is a high-performance 12 bit AVR microcontroller designed for efficient embedded applications. Operating at a maximum clock frequency of 20 MHz, it offers 8 KB of Flash memory, enhanced by 1 KB of SRAM and 128 Bytes of EEPROM for reliable data storage.
This device is housed in a compact 20-pin SSOP surface mount package measuring 5.3 mm in width, allowing for space-efficient design integration. It operates across a wide supply voltage range from 1.8 V to 5.5 V, making it suitable for battery-powered and low-voltage systems.
The ATTINY826-XU features 15 analog-to-digital converters with 12-bit resolution, an analog comparator with internal DAC reference, and 3 timers, supporting diverse timing and signal processing tasks. Communication capabilities include 2 USART ports, SPI, and I2C interfaces, facilitating robust data exchange in embedded systems.
Advanced peripherals such as the Configurable Custom Logic (CCL) and a 6-channel Event System allow enhanced hardware control and reduced CPU load, improving system efficiency and responsiveness. This microcontroller complies with REACH and RoHS3 standards, ensuring environmental safety and regulatory adherence.
Ideal for industrial, commercial, consumer electronics, and automotive applications requiring precise control, low power consumption, and flexible interfacing options. It supports the AVR instruction set architecture known for ease of programming and widespread community support.
Efficient 12-bit AVR CPU with hardware multiplier. 8 KB Flash, 1 KB SRAM, and 128B EEPROM memory. Wide operating voltage and compact SSOP package. Advanced analog and timing peripherals onboard. Multiple serial communication interfaces for connectivity.
Configurable logic and event system enhance control. Environmental certifications REACH and RoHS3 compliant. Explore more Microchip microcontrollers and embedded solutions in the Microcontrollers category at EnvMart for your design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features 8 KB of FLASH program memory for data storage.
The operating voltage range for the ATTINY826-XU is from 1.8 V to 5.5 V.
This microcontroller includes 15 channels of 12-bit ADCs.
It supports 2 USART ports, SPI, and I2C interfaces for communication.
The microcontroller is housed in a 20-pin SSOP surface mount package.
It incorporates advanced peripherals like Configurable Custom Logic and a 6-channel Event System for enhanced control.
The width of the package is 5.3 mm.
This model includes 3 timers for various timing tasks.
It complies with REACH and RoHS3 environmental standards.
The device is based on the AVR instruction set architecture.
It has 128 Bytes of EEPROM for data storage.
