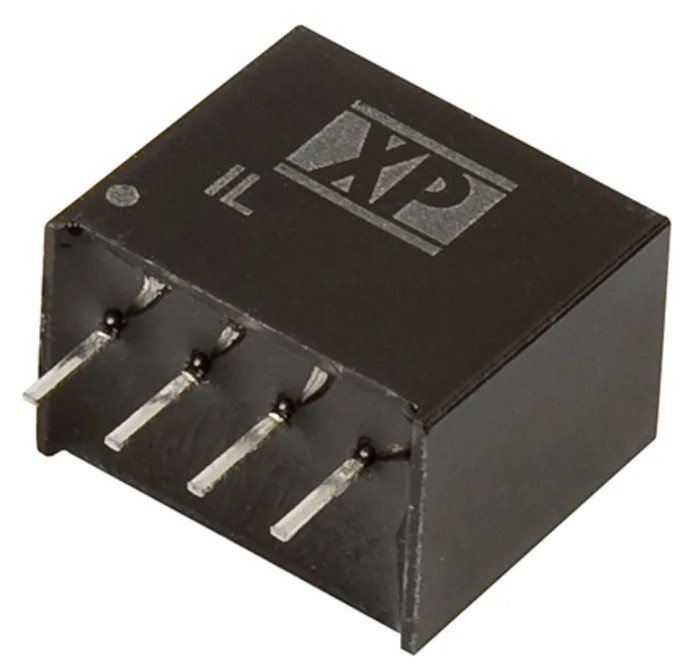

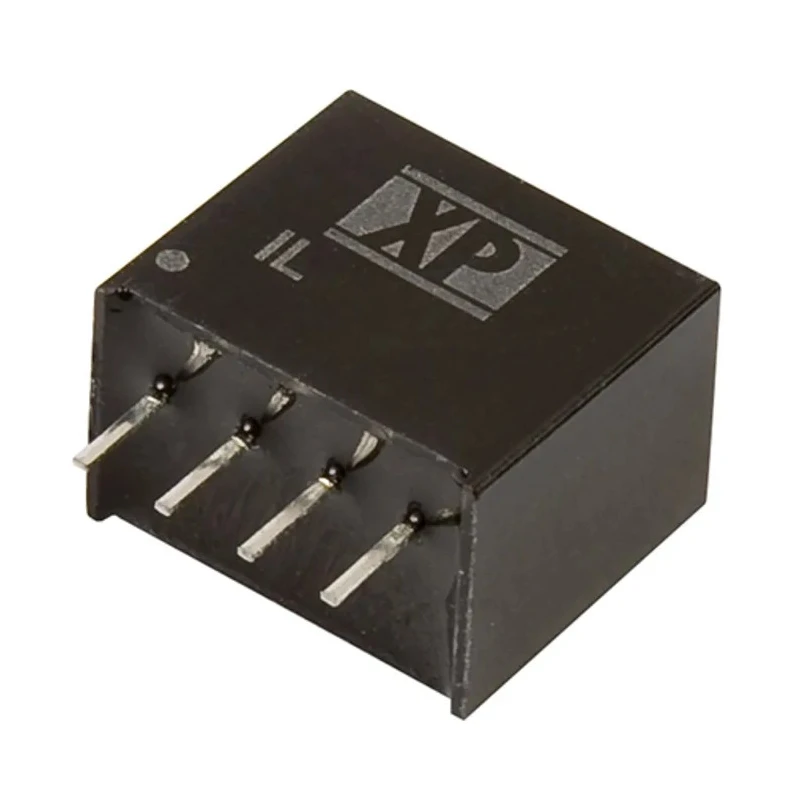

XP Power Isolated DC-DC Converter 5V DC Output 400 mA 5.5V/4.5V Input 2W Through Hole SIP Package IL0505S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IL DC/DC Converter, 5V dc/ 400 mA, 5 |
| Brand | XP Power |
| Efficiency | 77% |
| Length | 11.68mm |
| Model | IL0505S |
| Depth | 10.16mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -20°C |
| MTBF | 1210000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 400mA |
| Isolation Voltage | 1kV dc |
Key Features
- The device operates with an input voltage range from 4.5 V to 5.5 V DC.
- It features 1000 VDC isolation ensuring signal and power separation.
- Maximum operating temperature is 100°C, with a minimum of -20°C for reliable performance.
- Compact design with dimensions of approximately 11.68 mm length, 7.5 mm width, and 10.16 mm depth.
- MTBF rated at 1,210,000 hours indicating high reliability.
- Efficiency is 77%, suitable for efficient power conversion applications.
- Contains a single output and four pins for through-hole PCB mounting.
- Ideal for use in industrial, laboratory, communication, and embedded power systems.
Product Description
XP Power IL0505S is a reliable isolated DC-DC converter delivering 5 V DC output at 400 mA current with a maximum power of 2 W. It accepts input voltages from 4.5 V to 5.5 V DC and is housed in a standard SIP through-hole package measuring 11.68 mm in length, 7.5 mm in width, and 10.16 mm in depth. The device is engineered to operate in a temperature range of -20°C to 100°C, suitable for demanding environments requiring robust power conversion.
This converter features 1000 V DC isolation, protecting sensitive circuits from high-voltage disturbances, and has a high MTBF of 1,210,000 hours, assuring long-term reliability for industrial applications. The 77% efficiency makes it an energy-saving solution for power supplies in communications, instrumentation, industrial control, and embedded system designs.
The unit is designed for easy integration with through-hole mounting, utilizing four pins within the SIP package for secure PCB assembly. It supports single-output power conversion, making it ideal for applications requiring isolated 5 V rail power.
Typical usage includes power supplies for medical devices, industrial automation, telecommunications equipment, and laboratory instruments. The compact form factor and specified operating temperature range enable versatile deployment in various industrial and commercial power systems.
Key features include compact size, high isolation voltage, wide operating temperature range, and robust performance metrics. These make the XP Power IL0505S a dependable choice in DC-DC conversion technology.
The input voltage range of 4.5 V to 5.5 V DC ensures stable operation in variable supply conditions. Isolation voltage of 1000 V DC protects and separates input and output circuits for safety. High MTBF rating guarantees prolonged operational lifetime.
Through-hole SIP packaging facilitates easy mounting and secure connections. Wide operating temperature range suits harsh environmental conditions. Moderate efficiency optimizes power usage and minimizes heat generation.
Compact dimensions support space-constrained designs. Single output configuration simplifies integration in power systems.
Explore more DC/DC Converters and related power management solutions on EnvMart to find the right components that meet your specific industrial, laboratory, or commercial power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5 V to 5.5 V DC.
This unit has a maximum output power of 2 W.
The efficiency of this converter is rated at 77%.
The dimensions of the SIP package are approximately 11.68 mm in length, 7.5 mm in width, and 10.16 mm in depth.
It operates within a temperature range of -20°C to 100°C.
This model features a single output.
The isolation voltage is 1000 V DC, ensuring signal and power separation.
The mean time between failures (MTBF) is rated at 1,210,000 hours.
It utilizes a through-hole mounting method with four pins for PCB assembly.
This converter is suitable for applications in industrial automation, telecommunications equipment, medical devices, and laboratory instruments.
The minimum input voltage for this DC-DC converter is 4.5 V DC.
The package type is SIP (Single Inline Package).
