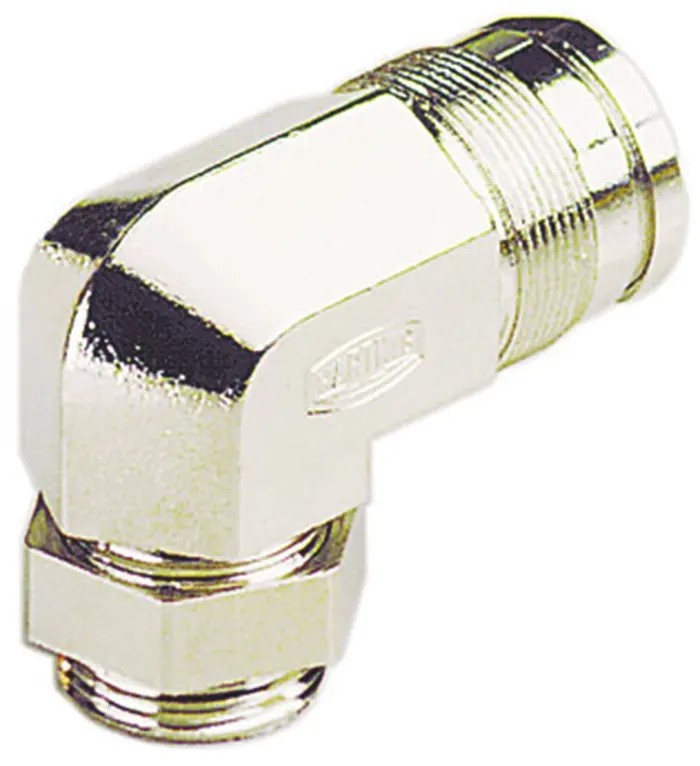

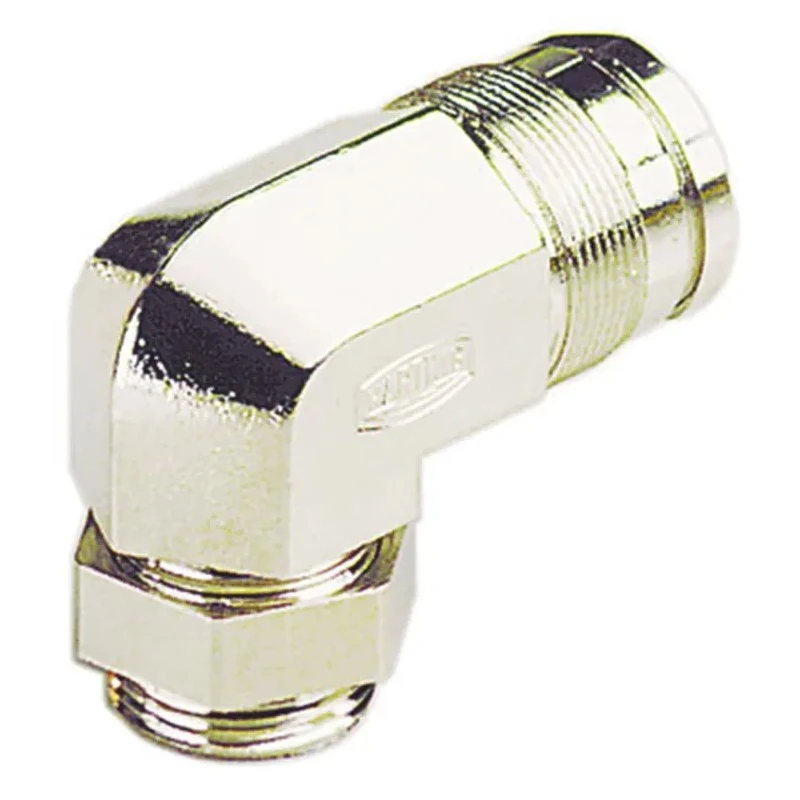

HARTING Industrial Circular Connector Housing 4 Contacts, Screw Mount, 13.5 mm, Socket Female, IP65, R15 Series 09150000122
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 25V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 10A |
| IP Rating | IP65 |
| Mount Type | Screw |
| Housing Material | Zinc |
| Contact Material | Copper Alloy |
| Series | R15 |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver over Gold Plated |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Mating Type | Screw Lock |
| Connector Size | 13.5 mm |
| Plug/Socket | Socket |
Key Features
- Complimented with screw lock mating system for secure connection.
- Designed for operation between -40°C to 125°C temperature range.
- Constructed with zinc housing material for durability.
- Contacts plated silver over gold improve conductivity and durability.
- Supports 25V voltage at 10A current rating suitable for industrial applications.
- Right angle orientation ensuring fit in tight spaces.
- Termination type is screw for reliable assembly.
- Provides IP65 rating protection against dust and water jets.
Product Description
HARTING 09150000122 industrial circular connector housing is a high-quality socket female housing designed for the R15 series Connectors. This product offers 4 contact points with a secure screw mounting system and a connector size of 13.5 mm. It features a robust zinc housing providing high durability and resistance suitable for demanding industrial environments.
The connector supports a nominal voltage of 25V and a current rating of 10A which makes it ideal for power and signal transmission in automation, manufacturing, and electrical equipment. It is designed for installation with a screw lock mating mechanism to ensure reliable and safe connections.
Operating temperature ranges from -40°C to 125°C allow use in extreme conditions while the right angle orientation facilitates efficient space utilization. The housing achieves an IP65 ingress protection rating, offering protection against dust ingress and water jets ensuring longevity and stable performance.
Contacts within the housing are made from copper alloy and plated with silver over gold, optimizing conductivity and corrosion resistance, essential for industrial and laboratory applications.
Complimented with screw lock mating system for secure connection. Designed for operation between -40°C to 125°C temperature range. Zinc housing provides robust mechanical protection and corrosion resistance. Contacts plated silver over gold improve conductivity and durability.
Rated for 25V voltage and 10A current suitable for industrial use. IP65 rating ensures protection in harsh environments. Right angle orientation aids installation in compact spaces. Screw termination for ease of assembly and maintenance.
This connector housing is widely used in industrial electrical systems, automation equipment, and power distribution units. It is a vital component for ensuring reliable, secure, and robust electrical connections in commercial and industrial settings.
Explore more HARTING connector housings and R15 series components in EnvMart for your industrial connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing supports a current rating of 10A, making it suitable for various industrial applications.
It is rated for a nominal voltage of 25V, which is appropriate for power and signal transmission in industrial settings.
This model operates effectively within a temperature range of -40°C to 125°C, allowing for use in extreme conditions.
This housing features 4 contacts, designed for secure and efficient electrical connections.
The housing is constructed from zinc, offering robust mechanical protection and corrosion resistance.
It uses a screw termination type, which facilitates reliable assembly and maintenance.
This model has a right angle orientation, which aids in installation in compact spaces.
The contacts are made from copper alloy and are plated with silver over gold, enhancing conductivity and corrosion resistance.
The connector size is 13.5 mm, suitable for various applications requiring compact connections.
It features a screw lock mating type, ensuring a secure connection during operation.
The country of origin for this connector housing is India.
