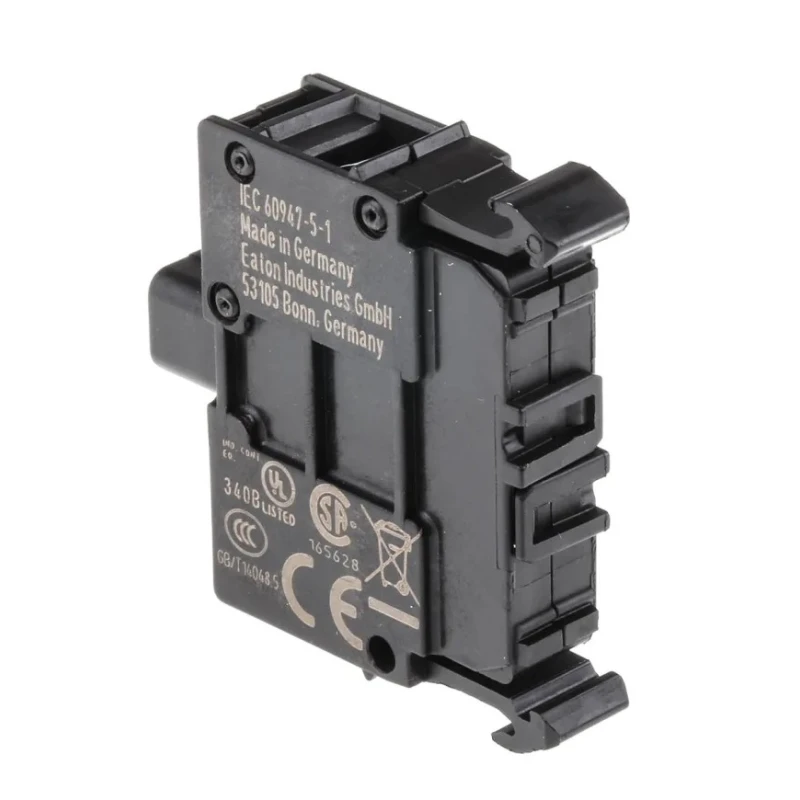

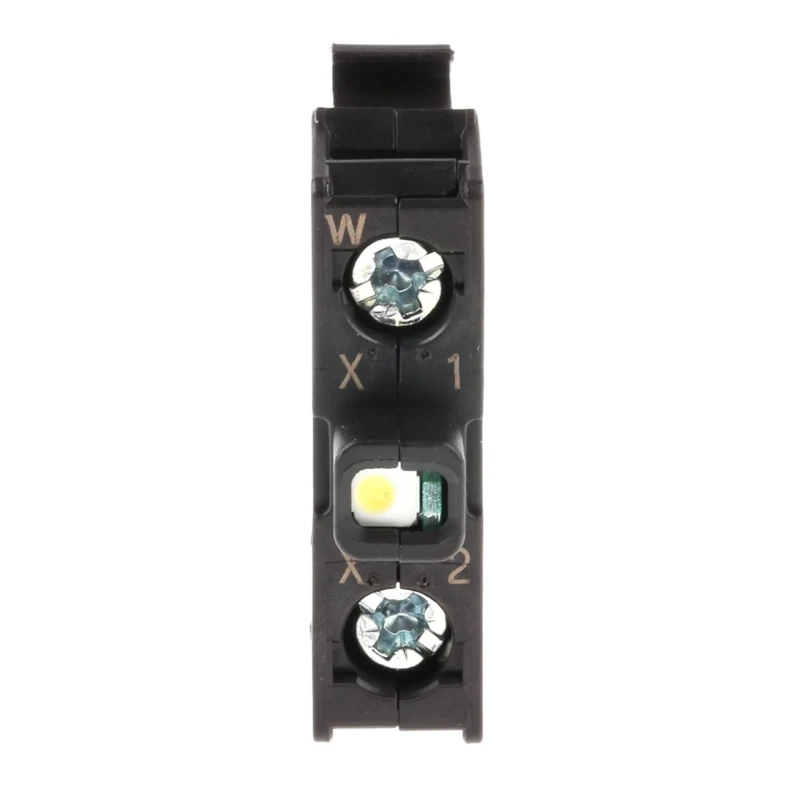

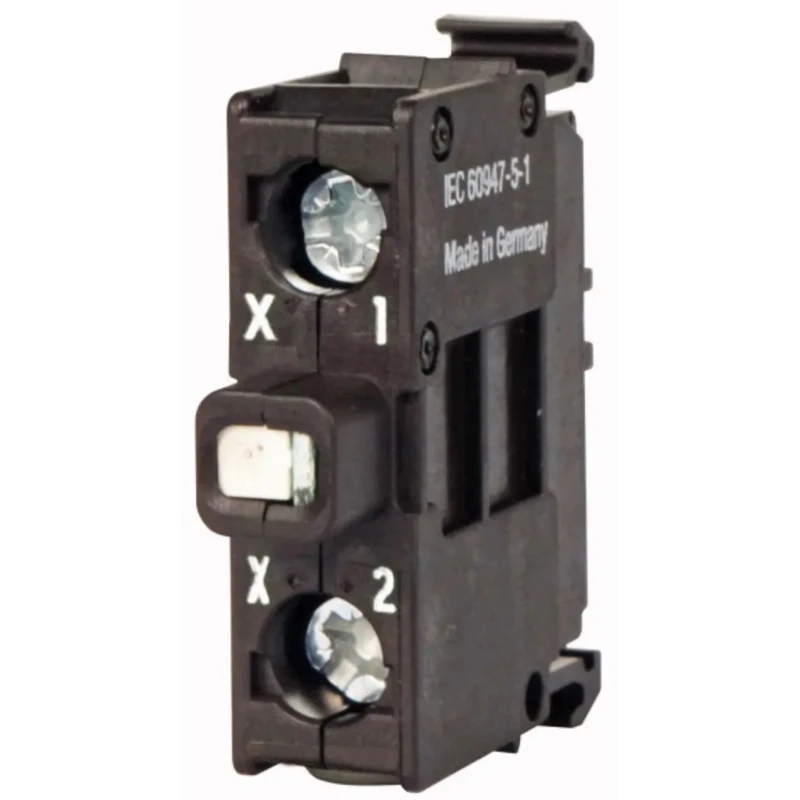

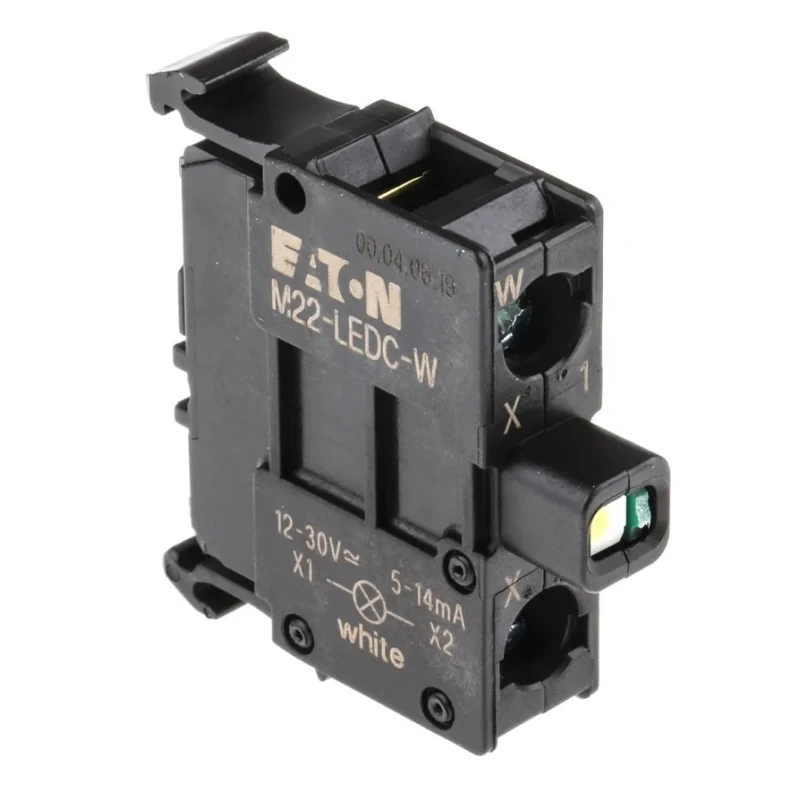

Eaton M22 Series LED Light Block, 12 V AC/DC, 30 V AC/DC, White Illumination, Screw Terminal 216560 M22-LEDC-W

Eaton 216560 M22-LEDC-W LED Light Block features white LED illumination compatible with 12 V AC/DC and 30 V AC/DC systems, designed for use in control panels and automation equipment. Its screw terminal design facilitates straightforward wiring without requiring specialized tools.

This Light Block supports a low current rating of 15 mA, making it ideal for low-power control circuits. Energy efficiency is optimized by its low power consumption of 0.26 W, producing minimal heat during operation. The device offers a substantial mechanical lifespan of up to 100,000 cycles, promoting reliability in intensive industrial applications.

Its robust construction allows operation within a wide temperature range from -25°C to 70°C, suitable for demanding environmental conditions. The IP20 rating provides protection against finger touch and solid foreign objects larger than 12 mm, ensuring safe handling and operation.

The 216560 M22-LEDC-W Light Block is rated to withstand impulse voltages up to 6000 V AC, offering resilience against power surges and transient voltage spikes. It meets major international standards including IEC/EN 60947-5, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, complies with CE marking directives, and is UL 508 certified, assuring users of its safety and compliance for industrial use.

Manufactured in Germany, this Eaton product is suitable for industrial automation, electrical control panels, HVAC systems, manufacturing equipment controls, and other low-voltage applications requiring reliable and visible push button illumination.

Low power consumption of 0.26 W for efficient energy use. Rated current of 15 mA for compatibility with low power control circuits. Durable mechanical lifespan rated to 100,000 cycles. Wide operating temperature range from -25°C to +70°C.

IP20 rating ensures safety against finger touch and small objects. Impulse withstand voltage of 6000 V AC protects against power surges. Screw terminal type for easy and secure wiring. White LED illumination provides clear visibility in dim environments.

Certified to IEC/EN, CSA, CE, and UL safety standards. German origin guarantees production quality. Discover the reliability and quality of Eaton's M22 Series Light Blocks on EnvMart, ideal for industrial and electrical system applications.
