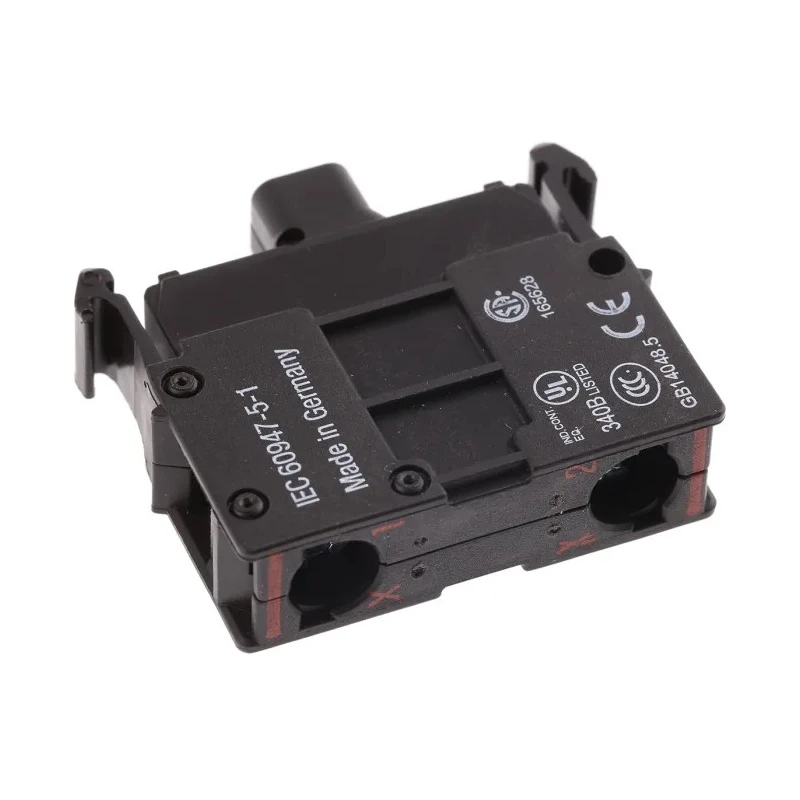

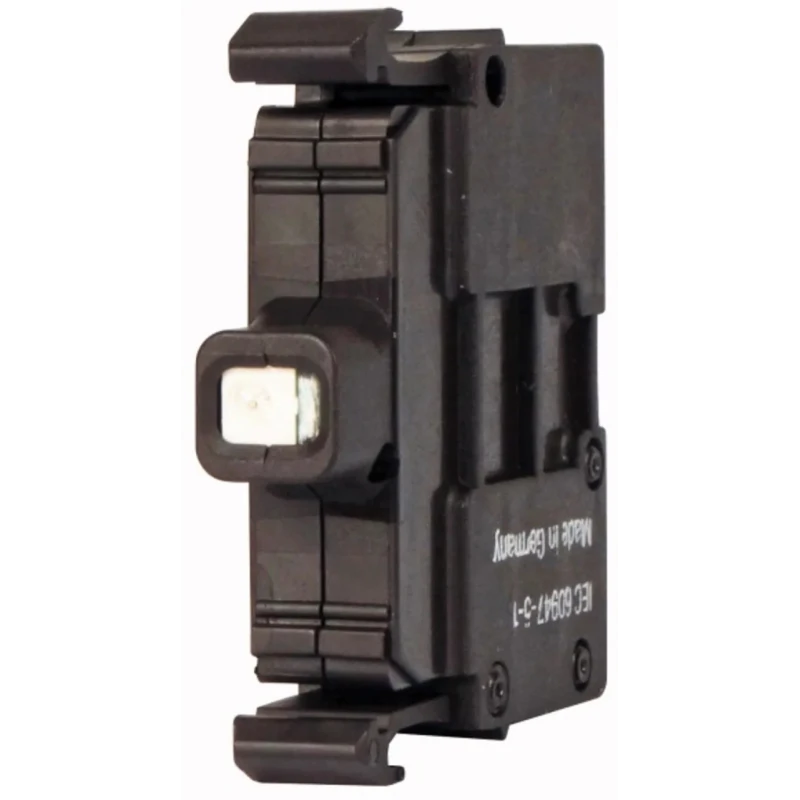

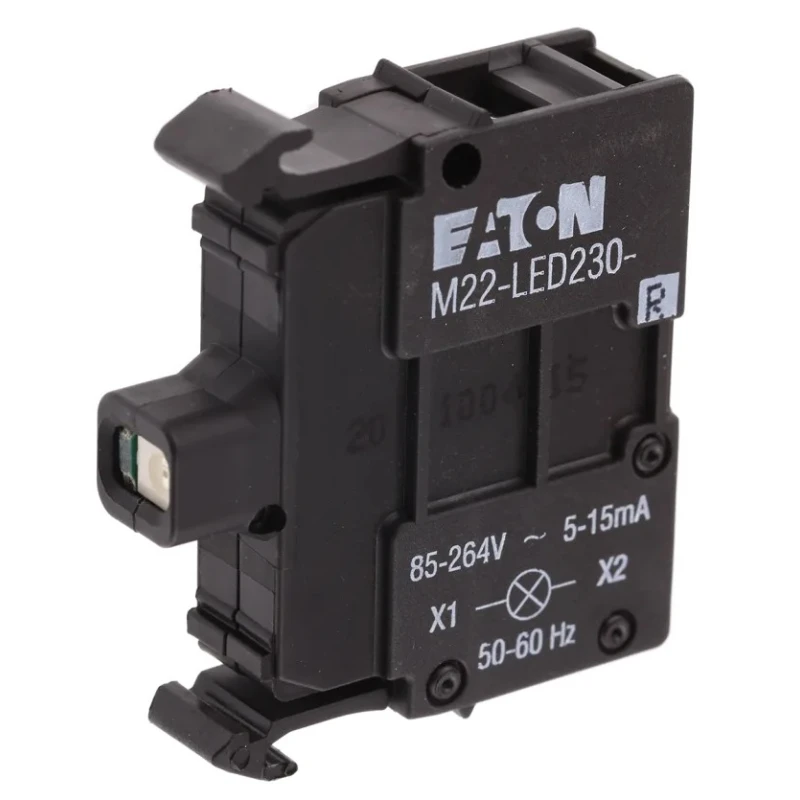

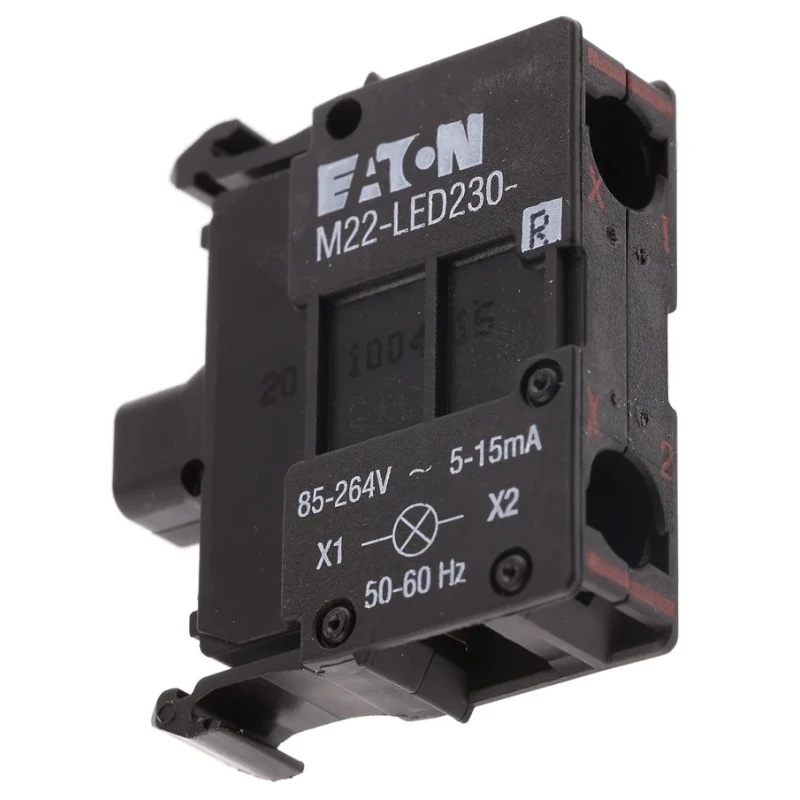

Eaton M22 Series LED Light Block Red Illumination 264V AC 0.33W Power 216564 M22-LED230-R

Eaton 216564 M22-LED230-R is a red LED Light Block designed for use in control and push button switch applications, operating safely at 264V AC. This LED block belongs to the M22 Series and consumes a low power of 0.33 watts, ensuring efficient energy use and minimal heat generation.

Its screw terminal design enables easy and secure installation without requiring specialized tools, making it ideal for maintenance and assembly in industrial and manufacturing settings. The block's compact size allows integration into a variety of panel layouts with its 71mm length, 30mm width, and 37.2mm height.

With a broad operating temperature range from -25°C to 70°C, this LED block performs reliably in harsh environmental conditions typical of industrial, factory, and automation equipment. It features a mechanical endurance rating of 100,000 cycles, ensuring long-term durability in high-use scenarios.

This component has an IP20 rating, providing finger-safe protection while guarding against entry of objects larger than 12mm, supporting safety compliance in electrical enclosures.

The Eaton M22 LED Block offers excellent electrical robustness with an impulse withstand voltage of 6000 volts and shock resistance up to 30g, making it suitable for equipment exposed to electrical surges and mechanical shocks.

Low power consumption of 0.33W for energy efficiency and minimal heat emission. Screw terminals enable quick and tool-free installation. Compact and panel-friendly dimensions of 71x30x37.2 mm. Wide operating temperature range from -25°C to 70°C for harsh environments.

High mechanical lifespan rated for 100,000 cycles. IP20 rating ensures finger protection and dust resistance. Impulse voltage resistance of 6000 volts enhances electrical safety. Shock resistance up to 30g for vibration-prone industrial use.

Conforms to CE, CSA, IEC, and UL safety and performance standards.

This LED block is ideal for industrial automation, control panels, manufacturing, and safety signaling applications. It supports visibility of emergency or stop push buttons with red illumination, enhancing machine operator safety and responsiveness.

It complements the M22 series push button and switch systems widely used in industrial and commercial electrical installations. Explore more Eaton M22 series components on EnvMart to find compatible switches, contact blocks, and LED indicators for your automation and electrical control solutions.
