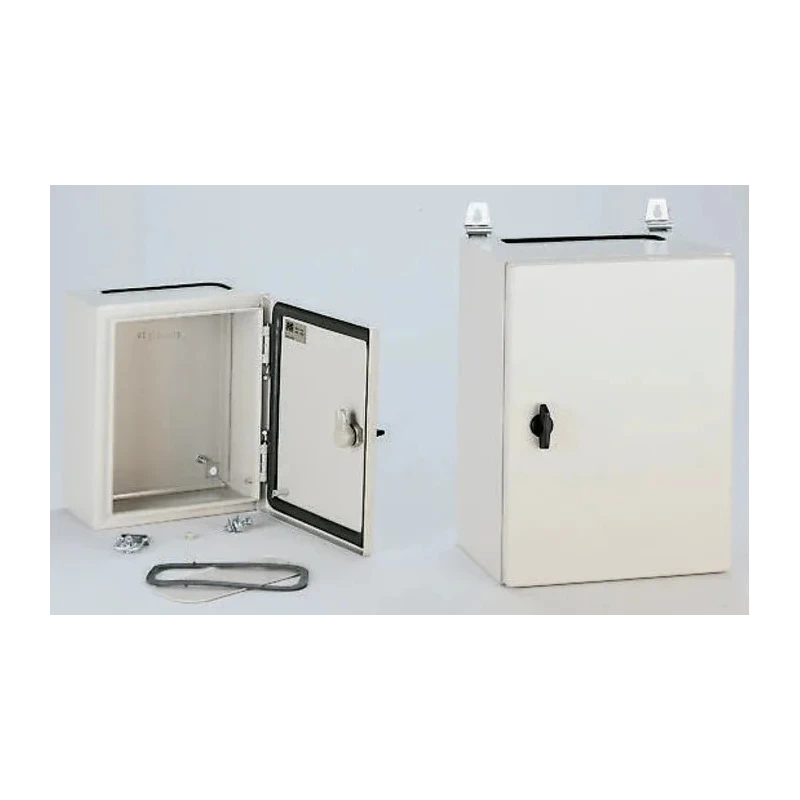

Schneider Electric Spacial CRN Series Multi-Purpose Steel Wall Box Enclosure IP66 1000 mm x 800 mm x 250 mm NSYCRN108250

Schneider Electric NSYCRN108250 Spacial CRN Series Steel Wall Box Enclosure is a robust, compact, multipurpose enclosure designed for industrial automation and electrical applications. Constructed from steel and finished with a grey epoxy-polyester powder coating (RAL 7035), this enclosure offers outstanding protection with an IP66 ingress protection rating, suitable for both indoor and outdoor installations.

The enclosure features a reversible plain front door opening up to 120° with a secure double-bar lock for enhanced safety. It includes two cable gland plates positioned at the bottom to facilitate structured cable entry and exit. The sides consist of a single folded section welded at the back with double profile reinforcement, providing a protected sealed area enhancing structural integrity.

With an overall size of 1000 mm height x 800 mm width x 250 mm depth, the enclosure supports mounting on walls and panel internal mounting. It is engineered with smart hinges for easy door removal and reversal, meeting the IK10 impact resistance standard, providing durability against mechanical shocks.

The enclosure complies with several international standards including RoHS, REACH, IEC 62208, UL, and cULus, ensuring environmental and safety benchmarks are met. Designed for disassembly, it supports sustainability claims by enabling efficient recycling and reuse of materials.

This universal wall box is ideal for applications in industrial automation, control systems, manufacturing, and electrical installations requiring reliable protection of components from environmental factors.

The supply package contains one steel body, one door, one lock, and two cable gland plates located at the bottom. Please note that mounting plates are not included with this enclosure and need to be sourced separately. Wall brackets are also sold separately.

The enclosure is crafted from steel with an epoxy-polyester powder coat for enhanced resistance to corrosion. IP66 compliant offering dust-tight and water-resistant properties for harsh environments. Reversible door with 120° opening and double-bar lock ensures convenience and security.

Includes standard bottom cable gland plates for cable management. Certified with IK10 impact resistance for mechanical durability. Designed to meet international environmental and safety standards. Suitable for industrial automation and electrical control installations.
