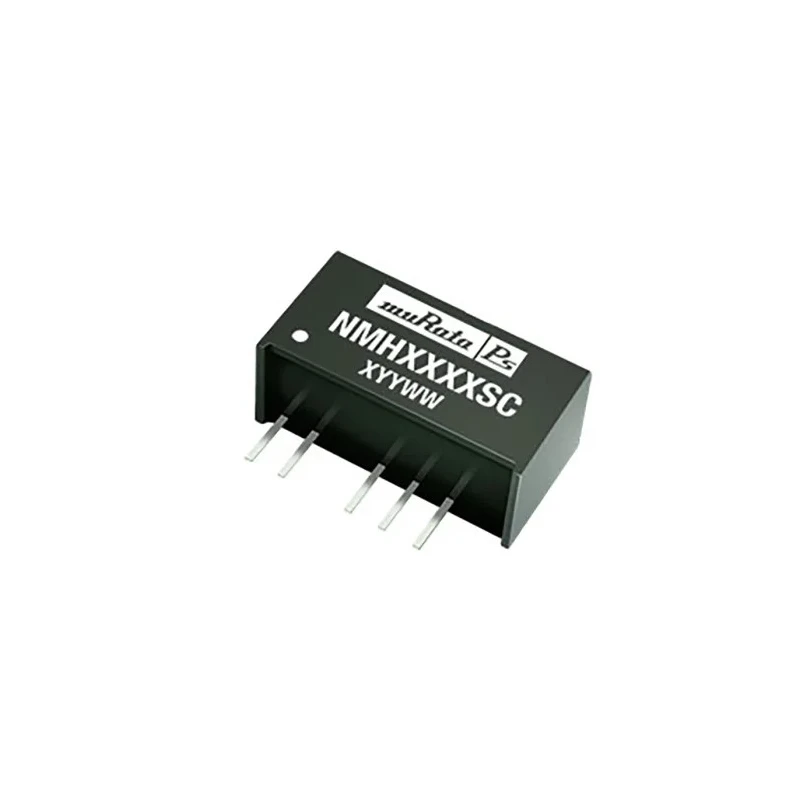

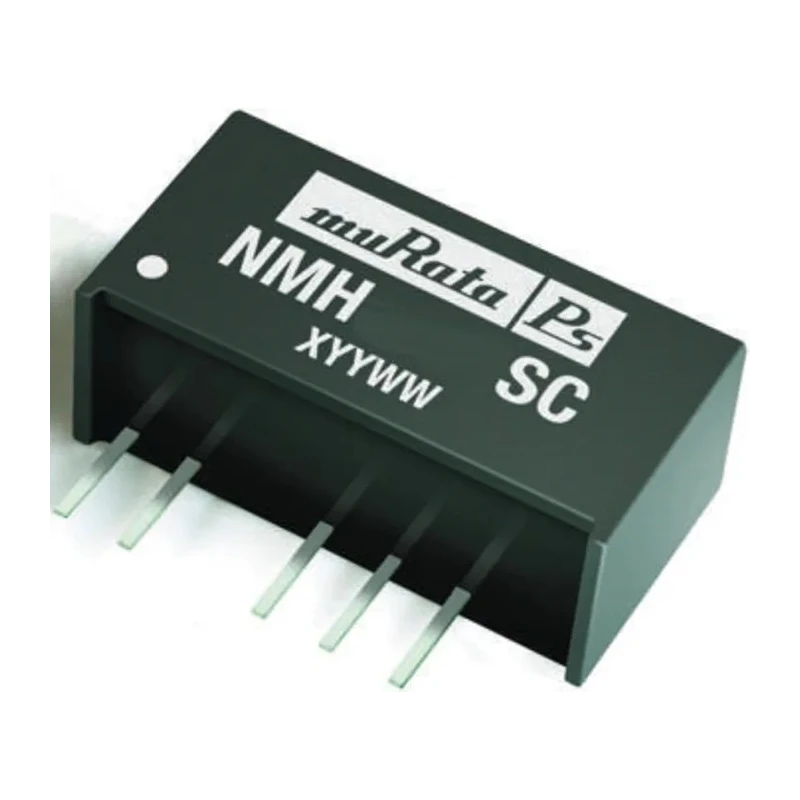

Murata Power Solutions 2W SIP Dual Output Unregulated Isolated DC-DC Converter Through Hole NMH0505SC

Murata Power Solutions NMH0505SC is a 2W SIP dual output unregulated isolated DC-DC converter specifically engineered for industrial, electronic component, power supply, and transformer applications. This module offers dual regulated outputs of +5 V dc and -5 V dc at 200 mA output current, powered at a nominal 5 V input voltage range from 4.5 V to 5.5 V dc. Its through-hole DIP7 package and plastic SIP form factor provide mechanical robustness and ease of integration onto printed circuit boards.

The NMH0505SC converter boasts a high efficiency of 80%, ensuring minimal power loss during conversion. The device includes a 1kV dc input to output isolation, critical for protecting sensitive downstream electronics from voltage spikes and noise. Low ripple and noise of 50 mV peak-to-peak further guarantees stable and clean power delivery, making it suitable for precision instruments and sensitive loads.

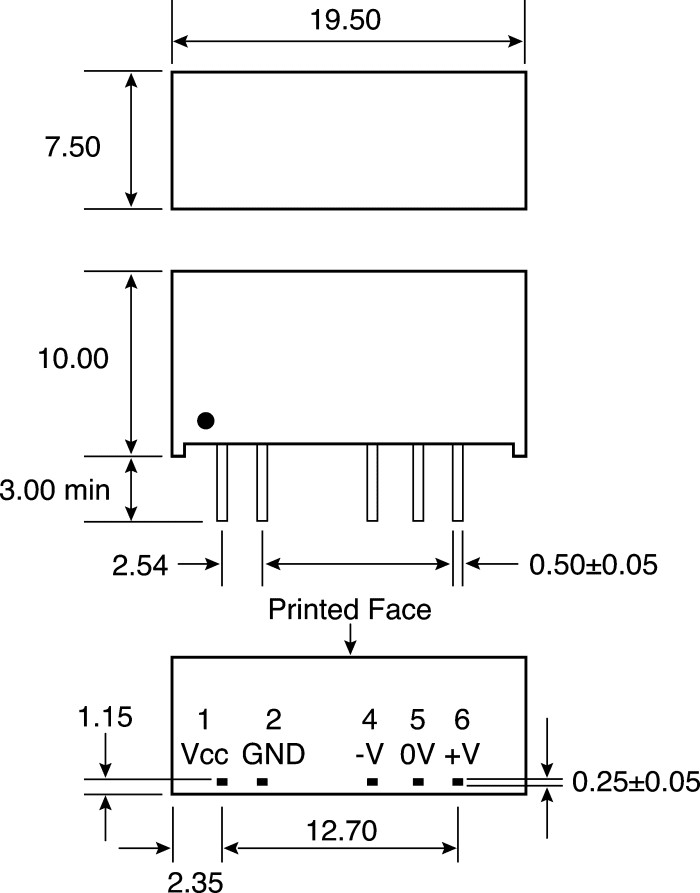

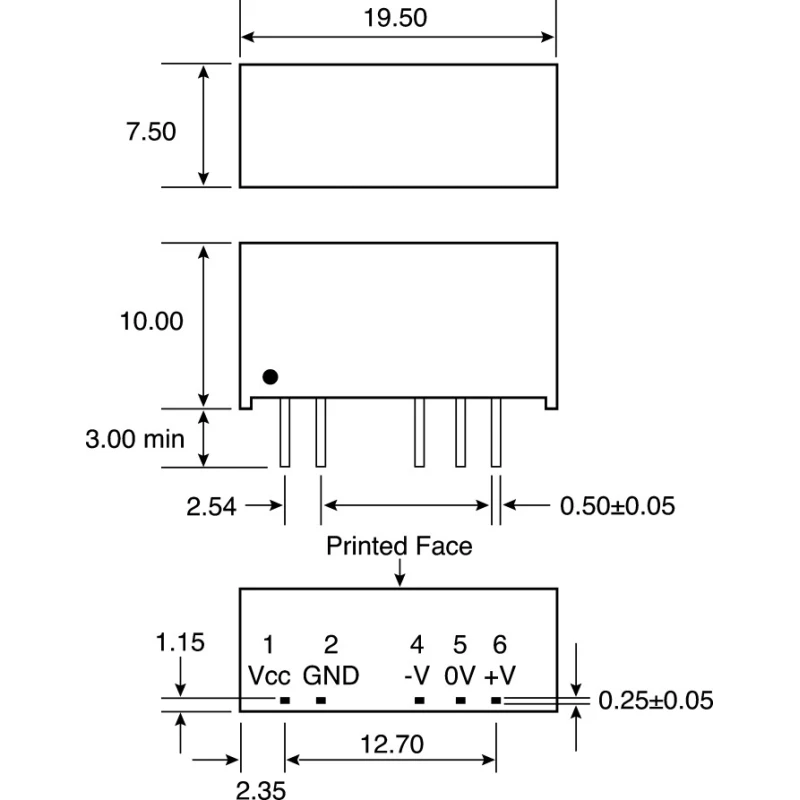

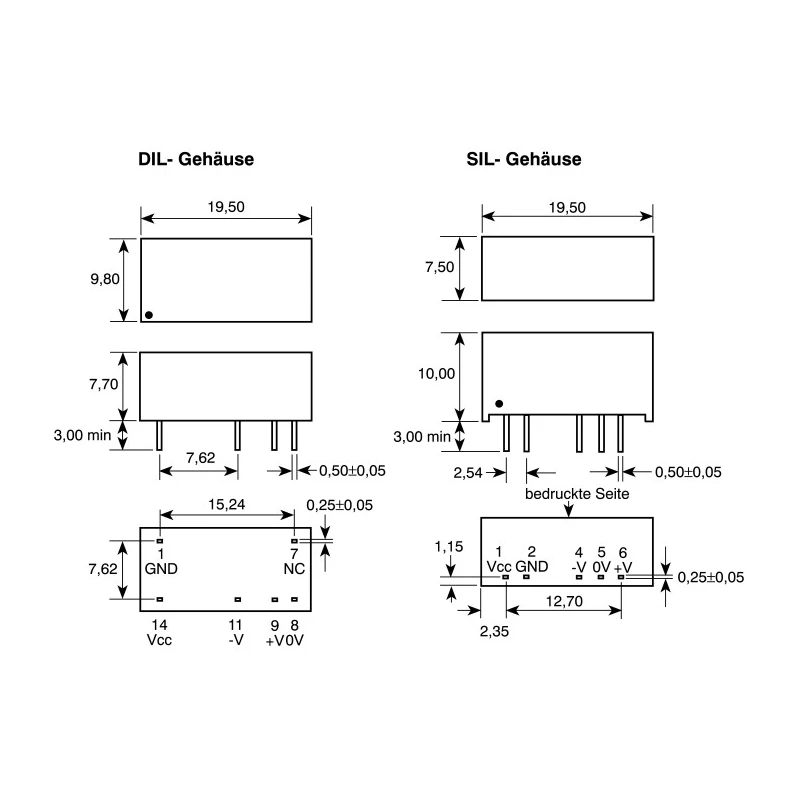

This converter complies with UL 60950 safety standards and RoHS environmental regulations, affirming the product’s quality and compliance for industrial and laboratory use. It has a wide operating temperature range from -40°C to 85°C, which suits harsh environments and extended temperature applications. The module’s compact size (19.5 mm x 19.5 mm x 10 mm) and light weight (2.76 grams) allow it to be used in space-constrained designs.

The robust MTBF of 1.5 million hours signifies durability and reliability over long operational periods. Its internal SMD construction and UL 94V-0 plastic material meet industrial-grade fire resistance criteria.

This Murata Power Solutions NMH series DC-DC converter is ideal for electronic manufacturing, telecommunications, instrumentation, and embedded system designs requiring stable dual voltage rails with galvanic isolation.

Provides 5 V and -5 V dual output voltage with 200 mA current. Input voltage range of 4.5 V to 5.5 V dc supports low voltage systems. Through-hole DIP7 package ensures reliable PCB mounting. 1 kV dc isolation protects circuits from interference and damage.

High efficiency prevents excessive heat dissipation. Compact form factor fits modern electronics and industrial instruments. Meets UL 60950 and RoHS standards for safety and compliance. Operates over a wide temperature range of -40°C to 85°C.

Low ripple and noise output maintains power integrity. High MTBF delivers dependable long-term operation. Explore this and other high-quality DC-DC converters in the Murata Power Solutions range on EnvMart for robust and efficient power management in your projects.
