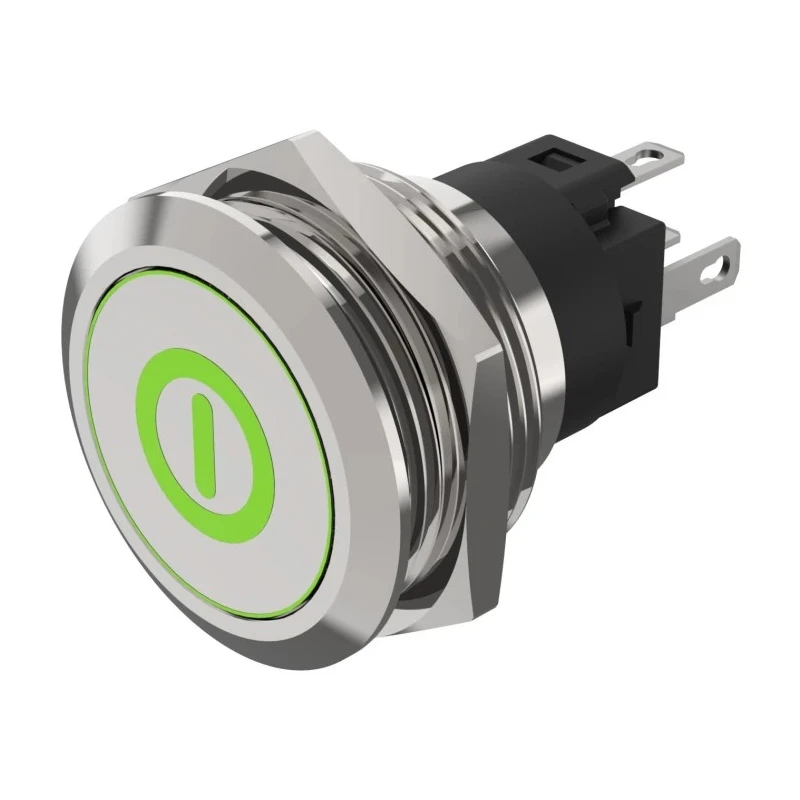

EAO Illuminated Push Button Switch Panel, Momentary, SPDT, 22.3 mm Cutout, Green and Red LED, IP65/IP67 82-6151.1AA4.B001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | EAO |
| Model | 82-6151.1AA4.B001 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Series | 82 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 22.3 mm |
| Standards/Approvals | CB, CCC, cUL, UL |
| LED Colour | Green, Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 240V dc |
| Actuator Style | Push-in |
| Switch Contact Current | 3A |
| Contact AC Voltage | 240V ac |
| Legend | On-Off |
Key Features
- Features a 22.3 mm panel cutout for easy mounting.
- Illuminated with green and red bi-colour LEDs for clear signaling.
- Supports a contact voltage of 240 V AC/DC.
- High ingress protection rating with IP65 and IP67 for water and dust resistance.
- Constructed with silver actuator and stainless steel 304 for durability.
- Rated for operation in temperatures from -30°C to 70°C.
- Offers vandal resistance with IK10 impact protection.
- Equipped with gold contacts suitable for low voltage and current switching.
Product Description
The EAO 82-6151.1AA4.B001 is an illuminated push button switch panel engineered for momentary switch operation with a SPDT contact configuration. It features a compact 22.3 mm panel cutout size and bi-colour LED illumination in green and red, providing effective visual feedback. The actuator is silver-colored and made from stainless steel 304, ensuring robustness and resistance to wear.
This push button achieves IP65 and IP67 ratings, offering excellent protection against dust and water ingress, making it suitable for harsh and exposed environments. It can operate reliably across a wide temperature range from -30°C to 70°C. The device includes gold contacts optimized for low voltage and current switching, enhancing signal integrity and longevity.
Its design offers IK10 vandal resistance, making it ideal for use in public venues like ticketing, vending machines, and other environments prone to impact. Typical applications span industrial machinery controls, building management systems, elevator and people mover controls, audio/video equipment, medical devices, and food industry equipment.
Key features include a push-in actuator style, front protection up to IP67, and excellent tactile feedback with over 1 million operational cycles guaranteed for long service life. This switch complies with international standards including CB, CCC, cUL, and UL certifications.
22.3 mm panel cutout ensures easy flush mounting. Bi-colour green and red LED illumination for status indication. Robust stainless steel 304 actuator construction. IP65 and IP67 rated for ingress protection. Wide operating temperature range from -30°C to 70°C.
Vandal-resistant IK10 impact protection. Gold contacts for reliable low voltage switching. Suitable for industrial, public, building, and medical applications. Compliant with CB, CCC, cUL, and UL standards. Explore the extensive selection of Push Button Switches and components offered in the EnvMart catalog for industrial, automation, and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, suitable for momentary switch operation.
The maximum operating temperature for this switch is 70°C.
It requires a panel cutout size of 22.3 mm for proper installation.
This switch has an ingress protection rating of IP65 and IP67, providing excellent resistance to dust and water.
The switch supports a contact voltage of 240V AC and 240V DC.
It features a silver actuator made from stainless steel 304, ensuring robustness and resistance to wear.
The switch is illuminated with bi-colour LEDs, featuring green and red colors for clear signaling.
The minimum operating temperature for this switch is -30°C.
This model is rated with IK10 impact protection, making it vandal-resistant.
It complies with international standards including CB, CCC, cUL, and UL certifications.
The switch is rated for a contact current of 3A.
Typical applications include industrial machinery controls, building management systems, and medical devices, among others.
