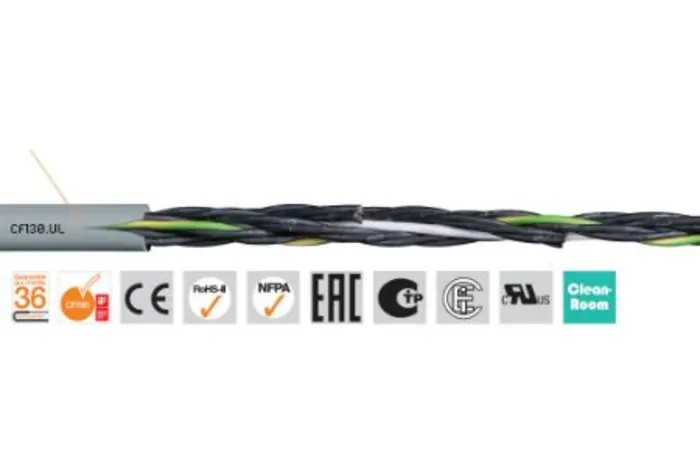

Igus Chainflex CF130.UL Control Cable, 18 Cores, 1mm² 17 AWG, Unscreened, Armoured, Thermoplastic CF130.10.18.UL (50m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF130.10.18.UL (50m) |
| Cable Length | 50m |
| Series | Chainflex CF130.UL |
| Outside diameter | 15mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 18 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 17AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
Key Features
- Designed for medium duty control cable applications with excellent abrasion resistance.
- Constructed with stranded copper conductors for flexibility and reliability.
- Thermoplastic elastomer sheath provides chemical and oil resistance.
- Armoured cable suitable for enhanced protection in industrial environments.
- Supports operating temperatures from -15°C to 70°C.
- Flame retardant in accordance with IEC 60332-1-2 standards.
- Typical uses include indoor automation, packaging, wood and stone processing, and handling equipment.
- Complies with EN and CE standards for safety and performance.
Product Description
Igus CF130.10.18.UL (50m) Control Cable is a robust and flexible solution for medium duty industrial control applications. With 18 cores of 1mm² (17 AWG) stranded copper conductor, it offers reliable electrical performance at a voltage rating of 300/500 volts. The cable is unscreened and armored, protected by a grey thermoplastic elastomer jacket that provides high abrasion resistance and outstanding chemical and oil resistance.
Engineered for demanding environments such as automation systems, packaging industries, wood and stone processing, and various supply and handling systems, this cable ensures long service life even under continuous flexing conditions. It operates efficiently across temperatures ranging from -15°C to 70°C.
The cable is flame retardant according to IEC 60332-1-2, CEI 20-35, FT1, VW1 standards and is silicone-free, making it suitable for clean room applications up to ISO Class 1. The design features a patented core bundled structure to reduce bend radius and increase durability in cable carrier and e-chain systems.
Igus Chainflex cables are extensively tested in a 2,750 meter laboratory, guaranteeing a 36-month service life assurance. CF130.UL is well-suited for indoor applications or outdoor use above freezing temperatures and supports a wide range of industrial uses including construction, manufacturing, HVAC controls, and water treatment automation systems.
Designed for medium duty industrial control applications with excellent abrasion resistance. Constructed with stranded copper conductors and thermoplastic elastomer sheath. Armoured and flame retardant with compliance to EN and CE standards.
Operating temperature range from -15°C to 70°C ensures versatility. Patented core bundle design minimizes bend radius for e-chain use. Oil resistant and suitable for chemical exposure environments. Manufactured in Germany with strict quality controls.
Offers long travel capabilities up to 400 meters in e-chain systems. 36-month service guarantee based on extensive laboratory testing.
Discover a wide range of Control Cables and automation wiring solutions in the Electronics & Electricals category at EnvMart. Enhance your industrial installations with trusted quality products from Igus and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus Chainflex CF130.UL control cable has a voltage rating of 300/500 volts.
This model can operate at a maximum temperature of 70°C.
The CF130.UL control cable features 18 cores.
It is constructed with stranded copper conductors and a thermoplastic elastomer sheath, providing abrasion and chemical resistance.
The outside diameter of the cable is 15mm.
The Igus Chainflex CF130.UL control cable is unscreened.
It is flame retardant in accordance with IEC 60332-1-2 standards.
The minimum operating temperature for this control cable is -15°C.
This cable is suitable for indoor automation, packaging, wood and stone processing, and handling equipment.
The conductor size of this control cable is 1mm², which is equivalent to 17 AWG.
This cable is manufactured in Germany.
It complies with EN and CE standards for safety and performance.
