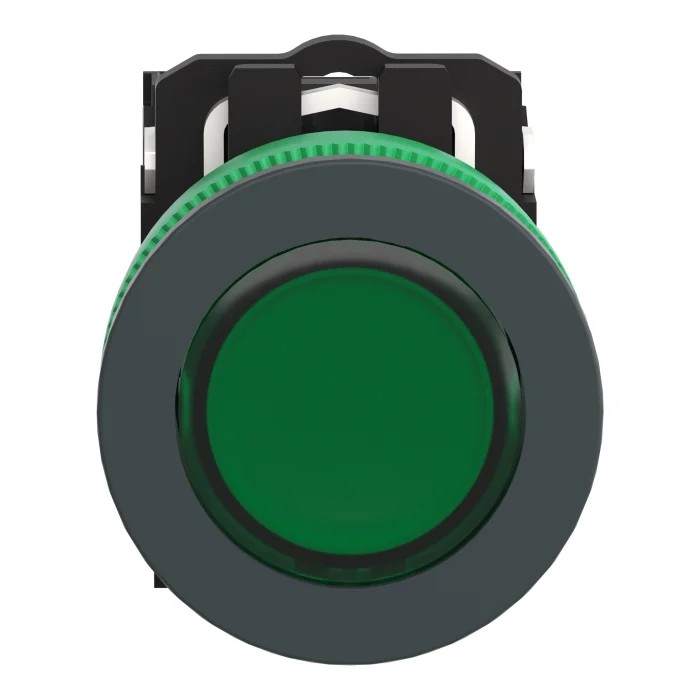

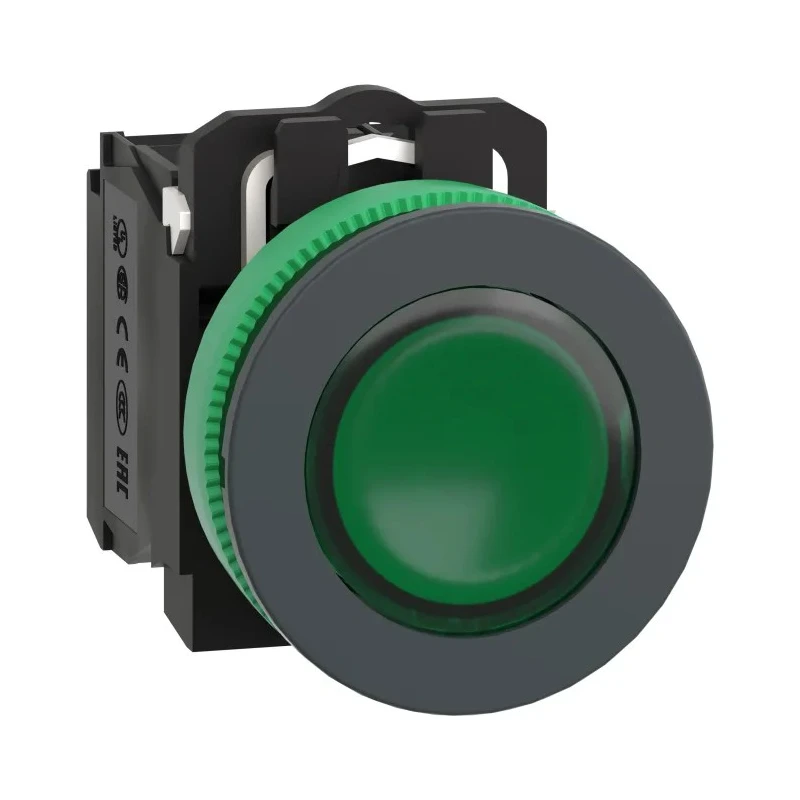

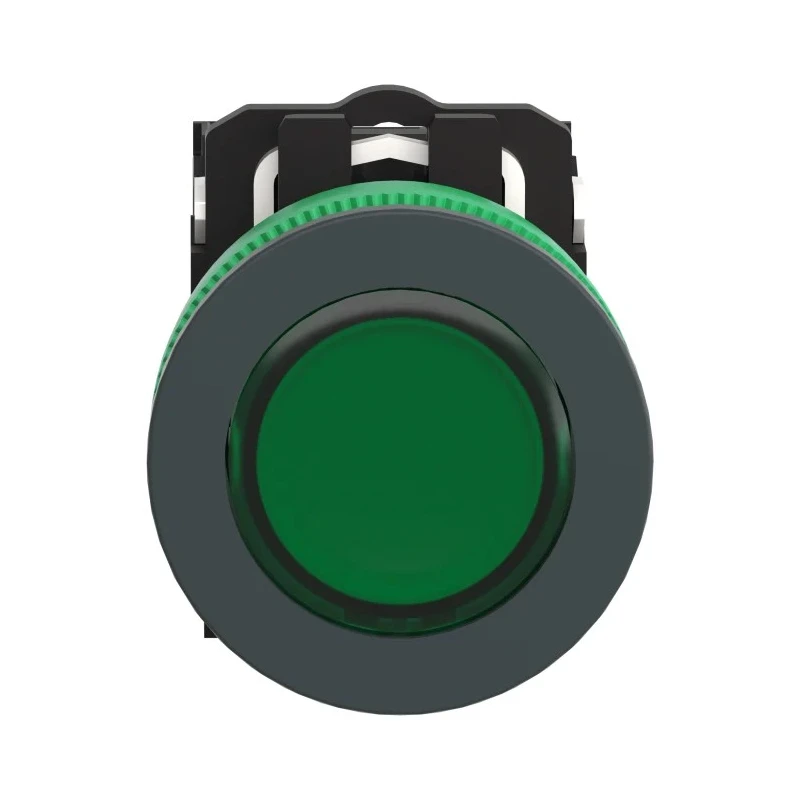

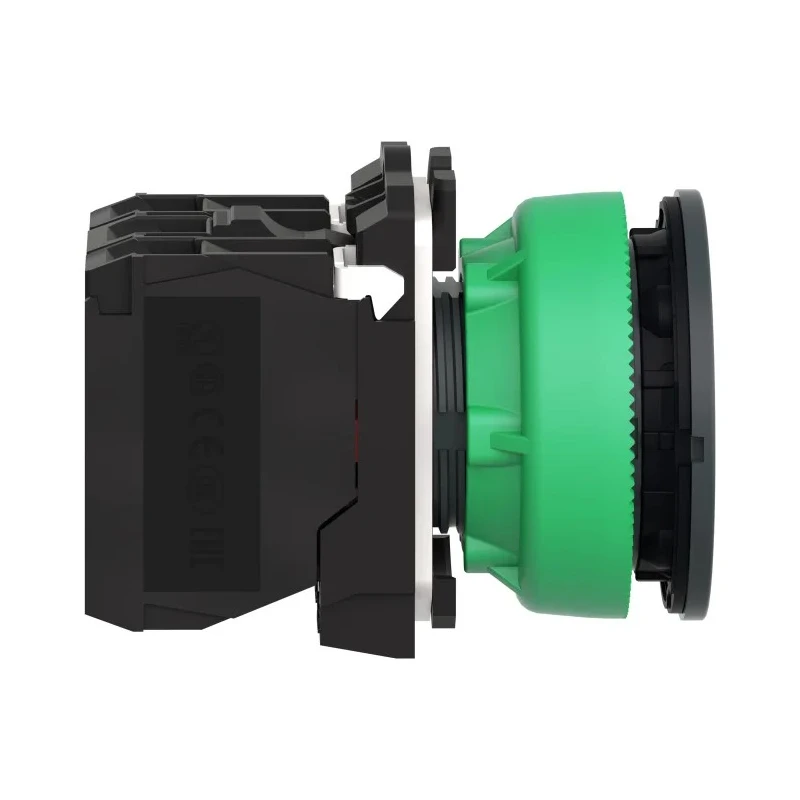

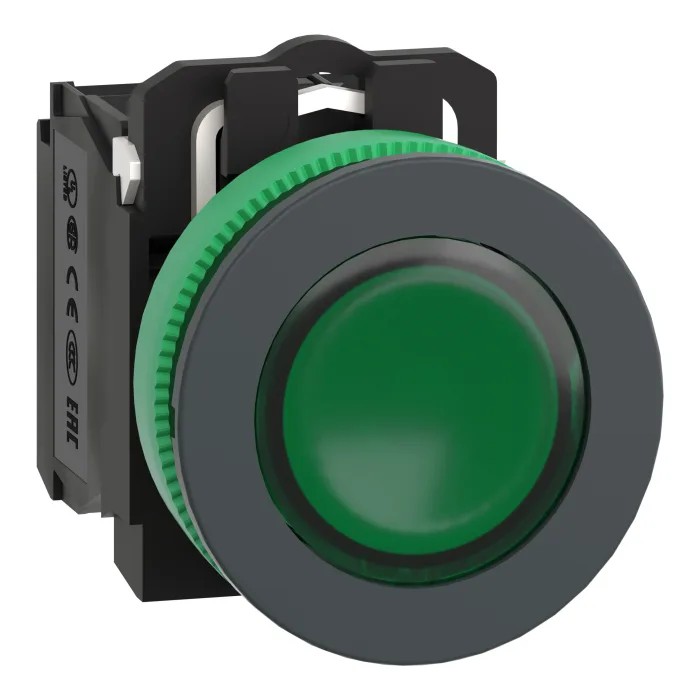

Schneider Electric Harmony Series Illuminated Push Button Switch SPRING RETURN Panel Mount 30 mm Cutout SPDT Green XB5FW33M5
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 55mm |
| Model | XB5FW33M5 |
| Width | 36.6mm |
| Mount Type | Panel |
| Series | Harmony |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |

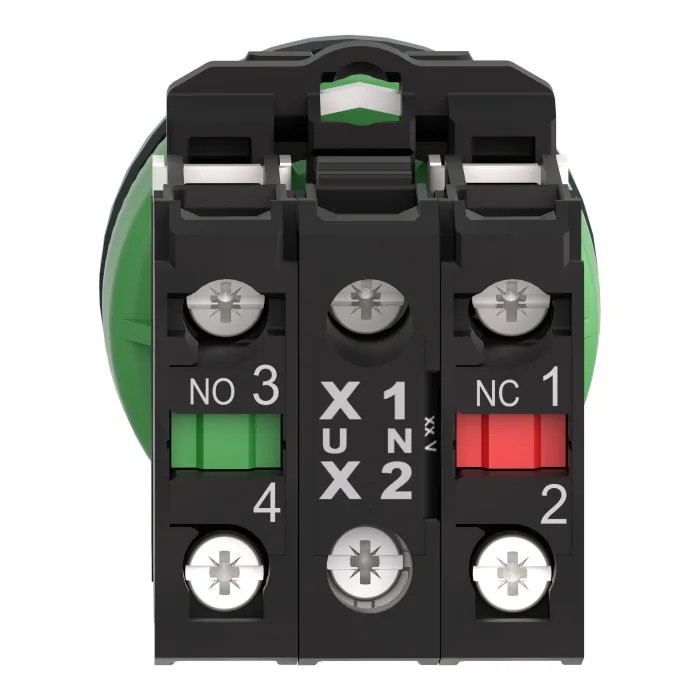

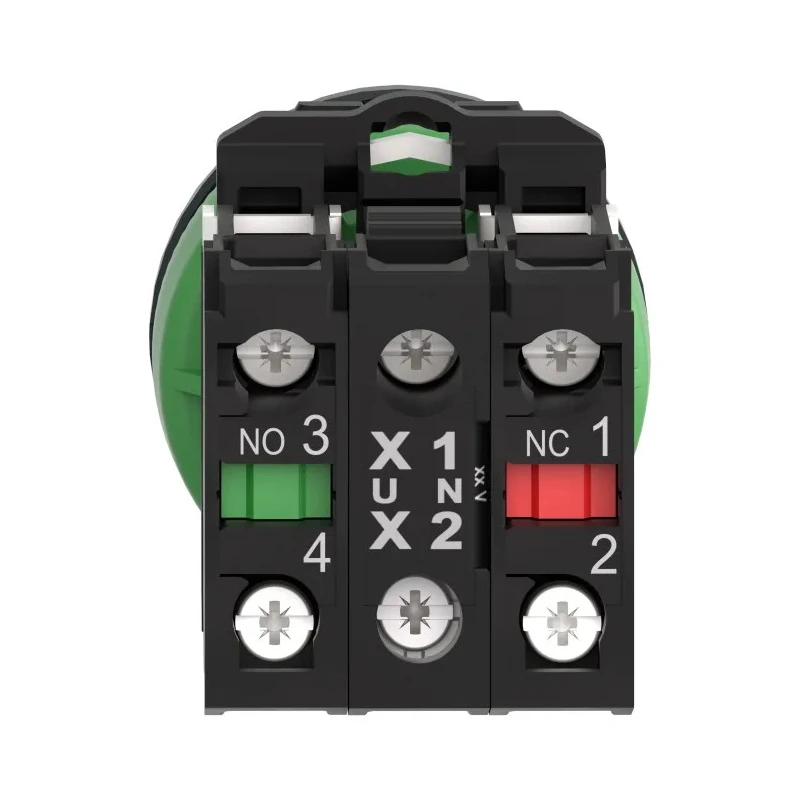

| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Green |
| Switch Operation | Spring Return |
| Actuator Colour | Green |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 6A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| General purpose offer covering all segments and applications | Industry |
| Ideal in extreme environments | food and beverage, marine, etc. Building and infrastructure |
Key Features
- Operates reliably between -40°C and 70°C operating temperature range.
- Equipped with screw terminal type for secure electrical connections.
- Features 1 normally open and 1 normally closed switch configuration rated at 6 A current.
- Designed to withstand harsh chemical environments including cleaning solvents and detergents.
- Complies with multiple international standards including EN/IEC 60947-1 and UL 508.
- Illuminated green LED actuator enhances visibility in panel applications.
- Offers modular design allowing customization with various accessories and contact blocks.
- Ideal for industrial, food and beverage, marine, building, and infrastructure applications.
Product Description
Schneider Electric XB5FW33M5 Harmony Series Illuminated Push Button Switch is a high-performance industrial switch designed for robust operation in harsh environments. It features a spring return mechanism and is panel mounted with a 30 mm cutout, making it suitable for integration into control panels and electrical enclosures.
The switch is illuminated with a green LED for clear status indication and utilizes a Single Pole Double Throw (SPDT) contact configuration with 1 normally open and 1 normally closed contact. Electrical connections are secured via screw terminals, ensuring reliability even in high vibration conditions. This model operates efficiently within a temperature range of -40°C to 70°C.
Constructed with high chemical robustness, it is resistant to cleaning solvents, alcohol, detergents, cutting oils, and milk, making it ideal for food and beverage industries and marine environments. It holds multiple international certifications including EN/IEC 60947-1, UL 508, and CSA C22.2 No 14, among others, ensuring global compliance and reliability.
Operates reliably between -40°C and 70°C. Equipped with screw terminal type for secure connections. Switch contact current rated at 6 A. Illuminated green LED actuator for easy identification. Compact size with height 42 mm, length 55 mm, and width 36.6 mm.
Modular design with extensive accessory compatibility. Repairable by the end user to reduce downtime. Suitable for industrial, building infrastructure, and extreme environment applications. Manufactured in France adhering to strict quality standards.
This push button switch from Schneider Electric’s Harmony Series is designed for versatile industrial use cases including manufacturing, automation, electrical panels, and energy distribution. Its durability and performance in challenging environments make it a valuable component in control systems requiring reliable and visible operational feedback.
Explore more Schneider Electric products and other Push Button Switches at EnvMart for high-quality industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably between -40°C and 70°C.
This model features a Single Pole Double Throw (SPDT) contact configuration with 1 normally open and 1 normally closed contact.
It is designed for panel mounting with a cutout size of 30 mm.
The switch contact current is rated at 6 A.
Electrical connections are secured via screw terminals, ensuring reliability even in high vibration conditions.
The dimensions of this model are 42 mm in height, 55 mm in length, and 36.6 mm in width.
It features an illuminated green LED actuator for clear status indication.
Yes, it is designed to withstand harsh chemical environments including cleaning solvents, alcohol, detergents, and cutting oils.
It complies with multiple international standards including EN/IEC 60947-1, UL 508, and CSA C22.2 No 14.
Yes, it offers a modular design allowing customization with various accessories and contact blocks.
It is ideal for industrial, food and beverage, marine, building, and infrastructure applications.
It is manufactured in France adhering to strict quality standards.
