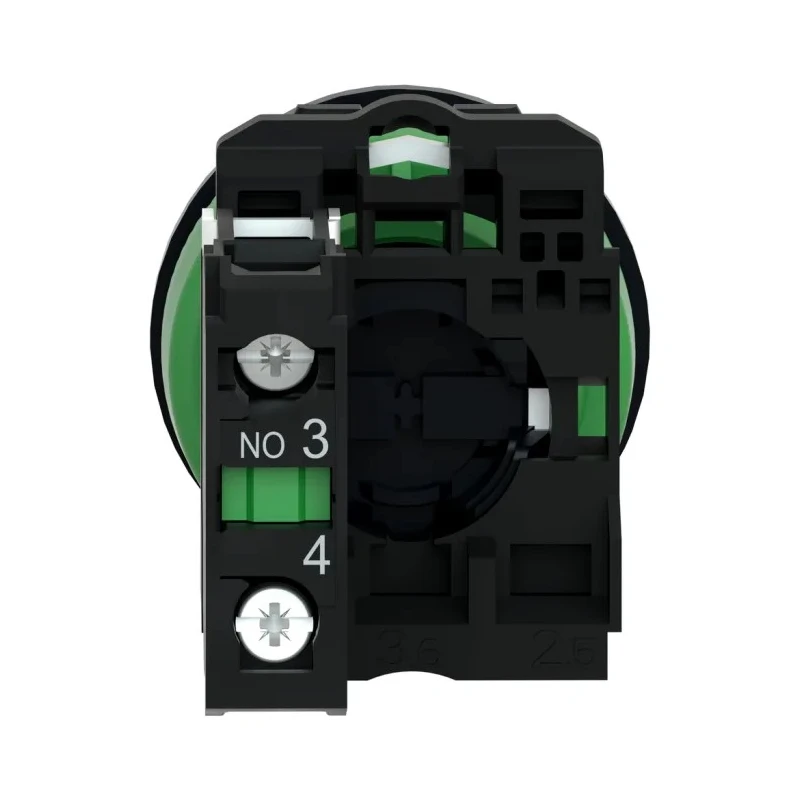

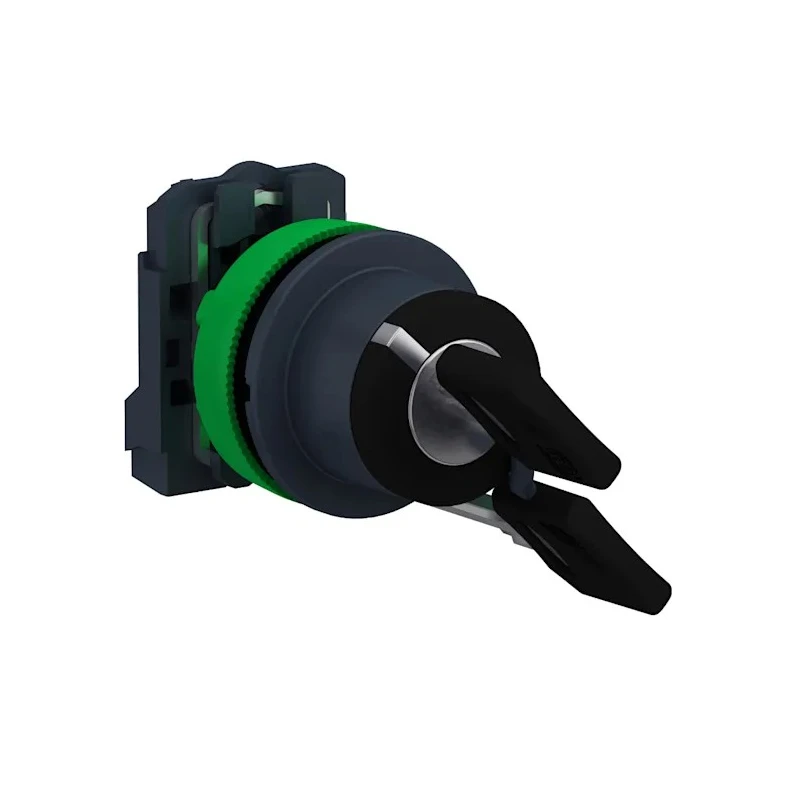

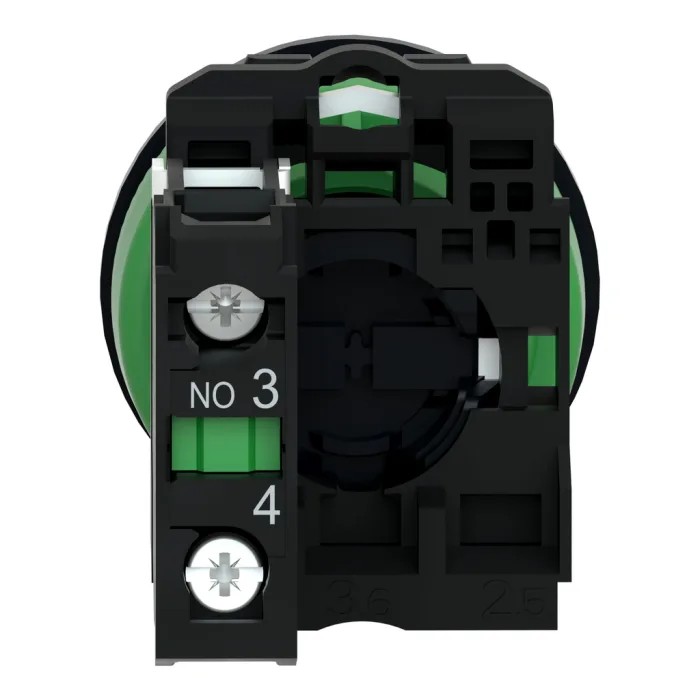

Schneider Electric IP67, IP69, IP69K, IP66 Key Switch SPST 2-Position 6A Screw Terminal XB5FG21
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | XB5FG21 |
| IP Rating | IP67, IP69, IP69K, IP66 |
| Contact Material | Silver Alloy |
| Series | XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Number of Positions | 2 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switch Operation | Stay Put |
| Contact DC Voltage | 600V dc |
| Switch Contact Current | 6A |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 600V ac |
| Better World Claim | Repairable by the End User |
| Key Type | 455 |
| Key Index Angle | 90° |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| General purpose offer covering all segments and applications | Industry |
| Ideal in extreme environments | food and beverage, marine, etc. Building and infrastructure |
Key Features
- The key switch is flush mounted with a mounting diameter of 30.5 mm and round head bezel.
- It features screw clamp terminals for reliable connection and a silver alloy contact material.
- The switch supports 600V AC/DC contact voltage and provides 1NO slow break contact configuration.
- Operating temperature ranges from -40°C to 70°C with a mechanical life of 1,000,000 cycles.
- This unit is compatible with key number 455 and has a 90° key index angle for precise operation.
- The product is designed for high vibration resistance with shake-proof terminal screws.
- It is suitable for a wide range of industrial applications including food and beverage, marine, and building infrastructure.
- Accessories such as metal circular blanking plugs, spacers, and protective washers are available separately.
Product Description
Schneider Electric XB5FG21 is a flush mounted key switch from the Harmony XB5 plastic series. Engineered for industrial and commercial applications, this key switch supports 2 positions with a 90° stay put operation, featuring a robust IP66, IP67, IP69, and IP69K protection rating that ensures high resistance to dust, water, and mechanical impact.
It is equipped with a SPST (Single Pole Single Throw) contact configuration, supporting 6A contact current and 600V AC/DC voltages. The silver alloy contacts and screw terminals guarantee secure electrical connections and durability over time. The switch's round head bezel and 30.5 mm mounting diameter contribute to its ergonomic design and ease of installation.
Rated for operation between -40°C and 70°C and providing a mechanical life of 1,000,000 cycles, the XB5FG21 key switch offers exceptional longevity and reliability. Its shake-proof terminal screws enhance vibration resistance, making it suitable for harsh environments such as food processing, marine settings, and building infrastructure.
Customization options include marking through Schneider Electric's web tool, and various accessories like metal circular blanking plugs, metal rings, spacers, protective washers, and flush mounting kits are available to aid installation and panel customization.
The product originates from France and meets industry standards for quality and performance. It is designed to deliver both aesthetic appeal and functional robustness for industrial equipment panels.
The key switch supports SPST 2-position, stay put operation with silver alloy contacts. Its protection ratings include IP67, IP69, IP69K, and IP66 for water, dust, and impact resistance. It is compatible with key number 455 and has a 90-degree key index angle.
Screw clamp terminals and shake-proof screws enhance connectivity and vibration resistance. The mechanical life extends up to 1,000,000 operation cycles, supporting industrial durability. Operating temperature ranges from -40°C to 70°C.
Customizable markings and multiple accessories facilitate flexible panel installation. Explore EnvMart’s extensive range of Schneider Electric switchgear and Key Switches for comprehensive electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XB5FG21 features a SPST (Single Pole Single Throw) contact configuration.
This model has protection ratings of IP66, IP67, IP69, and IP69K, which ensure high resistance to dust, water, and mechanical impact.
The maximum operating temperature for this key switch is 70°C.
The mechanical life of the XB5FG21 is rated at 1,000,000 cycles.
The contact current rating for the XB5FG21 is 6A.
It uses screw clamp terminals for reliable electrical connections.
The key switch is compatible with key number 455 and has a 90° key index angle.
This key switch is suitable for harsh environments such as food and beverage processing, marine applications, and building infrastructure.
Accessories such as metal circular blanking plugs, spacers, and protective washers are available separately to aid installation.
The minimum operating temperature for the XB5FG21 is -40°C.
The XB5FG21 key switch originates from France.
Various types of connections are available, including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
