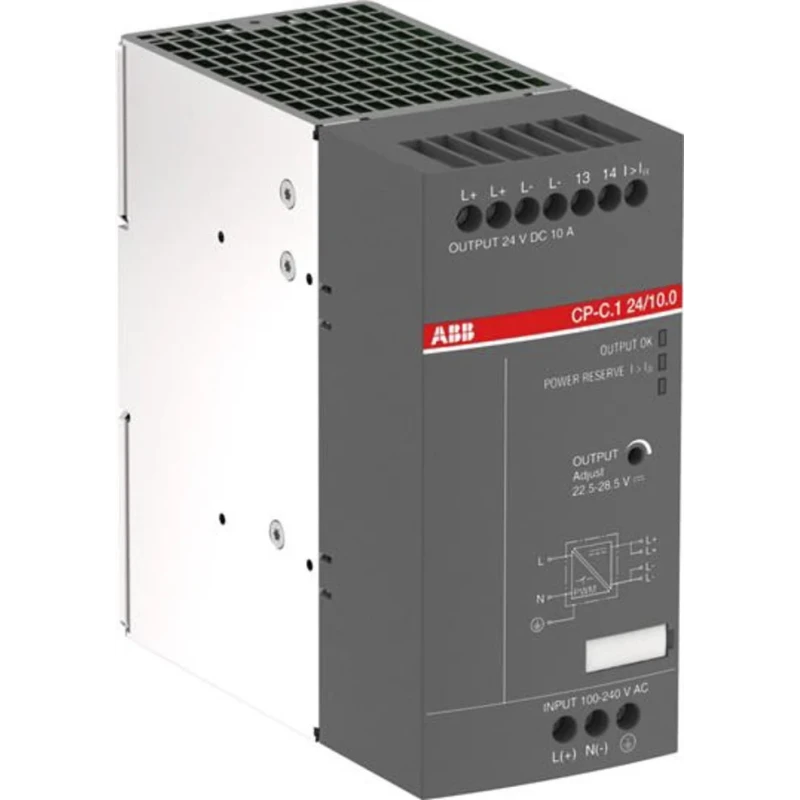

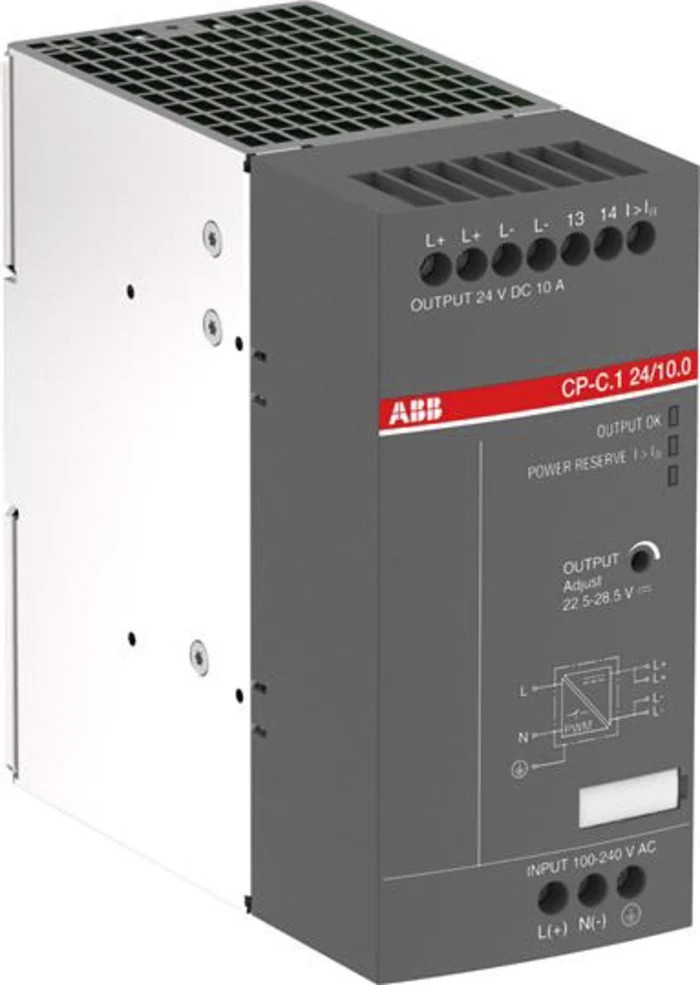

ABB CP-C.1 Switched Mode DIN Rail Power Supply 240W 24V DC Output 10A AC/DC Input 90-264V 1 1SVR360663R2001 CP-C.1 24/10.0-C

ABB 1SVR360663R2001 CP-C.1 24/10.0-C is a high-performance switched mode DIN rail power supply designed for industrial and commercial electrical applications. It offers a rated output power of 240 W with 24 V DC output voltage and supports an output current of up to 10 A. The power supply accepts a wide AC/DC input voltage range from 90 V to 264 V AC and from 90 V to 300 V DC, making it compatible with diverse power environments.

Constructed with a compact footprint measuring 129.4 mm in height, 60 mm in width, and 136 mm in depth, this power supply fits efficiently onto DIN rails in electrical panels and control cabinets. Its IP20 ingress protection rating allows for safe use in protected indoor environments. The operating temperature range of -40°C to 85°C ensures reliable operation even in extreme temperature conditions.

The output voltage is adjustable from 22.5 V to 28.5 V DC, providing flexibility for various load requirements. Its U/I output characteristic comes with a power reserve of up to 50%, allowing for reliable performance under fluctuating demands. Parallel operation capability facilitates increased capacity and system redundancy, supported by available redundancy unit and buffer modules as accessories.

ABB's CP-C.1 series power supplies are certified under multiple international standards including IEC EN 61000-6-2 for immunity, IEC EN 61000-6-3 for emissions, UL 508 for industrial control equipment, IEC EN 60079 series for explosive atmospheres, CSA C22.2 No.107.1, and others. The product's ATEX hazardous area certification further extends its application to potentially explosive industrial environments.

This product is well suited for applications in industrial automation, manufacturing machinery, control panels, HVAC systems, and other critical electrical systems requiring stable and efficient DC power supply.

Supports AC/DC wide input voltage range from 90 to 264 V for flexible operation. Compact design with dimensions 129.4 mm height, 60 mm width, and 136 mm depth. IP20 rated enclosure suitable for protected indoor installations.

Operating temperature range from -40°C to 85°C ensuring reliable performance in harsh environments. High efficiency of 94% minimizes energy loss and heat generation. Features output voltage adjustable between 22.5 V to 28.5 V DC.

Enables parallel operation to increase capacity and redundancy. Certified to multiple industrial standards including IEC EN 61000 series and UL 508. Designed for 1-phase power systems with a single output configuration. ATEX certified for hazardous area applications.
