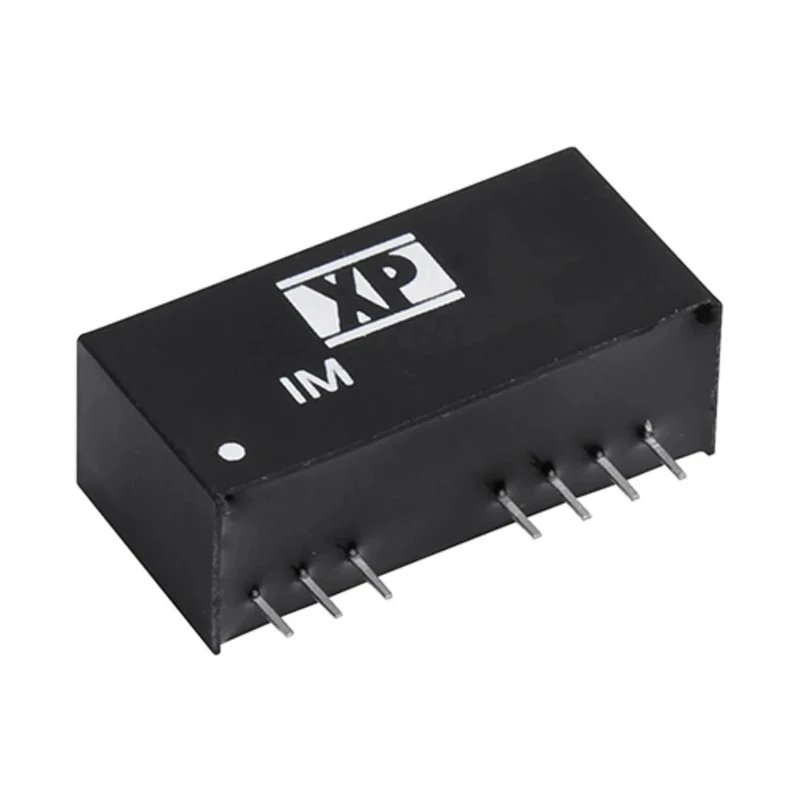

XP Power 2W Isolated SIP DC/DC Converter 3.3V DC 500mA 18-75V DC Input Through Hole IM4803SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 75% |
| Length | 26mm |
| Model | IM4803SA |
| Depth | 12.5mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IM |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -20°C |
| MTBF | 1210000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 9 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Operates from a wide input voltage range of 18V to 75V DC.
- Provides high isolation voltage of 1500 VDC for noise immunity and safety.
- Compact SIP package with 9 pins supports easy through hole mounting.
- Efficiency rated at 75% ensures low power loss during operation.
- Wide operating temperature range from -20°C to 100°C for harsh environments.
- Designed for continuous short circuit protection to enhance durability.
- High MTBF of 1,210,000 hours ensures long service life.
- Ideal for industrial, commercial, and laboratory applications requiring stable DC power conversion.
Product Description
XP Power IM4803SA is a high-performance isolated DC/DC converter capable of delivering 2 W output power. It provides a regulated 3.3V DC output at 500mA current. The unit is enclosed in a compact SIP package with through hole mounting, measuring 26mm length, 9.2mm width, and 12.5mm depth. This converter supports a broad input voltage range from 18 V to 75 V DC and features a high isolation voltage of 1500 VDC, ensuring excellent noise rejection and enhanced system safety.
With a continuous operating temperature range from -20°C to +100°C, the IM4803SA is engineered for demanding industrial and commercial environments. It boasts good efficiency at 75%, reducing energy waste and heat generation. This model offers remote on/off functionality and continuous short circuit protection, further enhancing its robustness and versatility.
The converter’s high Mean Time Between Failures (MTBF) of over 1.2 million hours guarantees reliability and longevity, making it suitable for critical applications in power supplies, instrumentation, control systems, and other electronic equipment requiring stable isolated power conversion.
The IM series from XP Power is well-regarded for providing regulated single and dual output isolated DC/DC converters with industry standard SIP packaging and advanced features optimized for electronic and industrial uses.
Operates from 18V to 75V DC input voltage range. Delivers a regulated 3.3V DC output at 500mA output current. Compact, through hole SIP package for easy PCB integration. Supports 1500 VDC isolation voltage for electrical safety.
Efficiency of 75% minimizes energy consumption and heat. Wide temperature tolerance from -20°C to +100°C operation. Continuous short circuit protection for reliability. High MTBF of 1,210,000 hours for long-term stability.
Designed for industrial, laboratory, and commercial power supply applications. Explore more high-quality DC/DC Converters and power supply solutions at EnvMart to support your electronic system design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter operates from a wide input voltage range of 18V to 75V DC.
It provides a regulated output voltage of 3.3V DC at a maximum output current of 500mA.
The efficiency of this DC/DC converter is rated at 75%, which helps minimize energy loss during operation.
This model features a high isolation voltage of 1500 VDC, ensuring excellent noise immunity and safety.
The converter measures 26mm in length, 9.2mm in width, and 12.5mm in depth.
It has a wide operating temperature range from -20°C to 100°C, suitable for harsh environments.
This unit is designed for through hole mounting, making it easy to integrate into PCBs.
It is ideal for industrial, commercial, and laboratory applications requiring stable DC power conversion.
It offers continuous short circuit protection to enhance reliability during operation.
The MTBF is rated at over 1,210,000 hours, indicating a long service life.
This model has one output channel.
The converter is enclosed in a compact SIP package, which is standard for this type of device.
