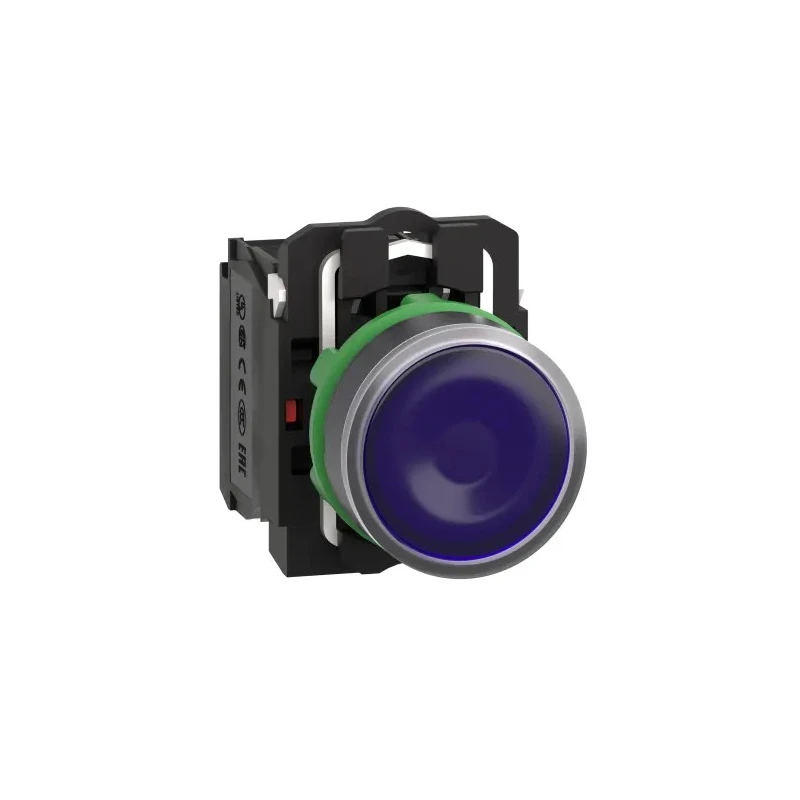

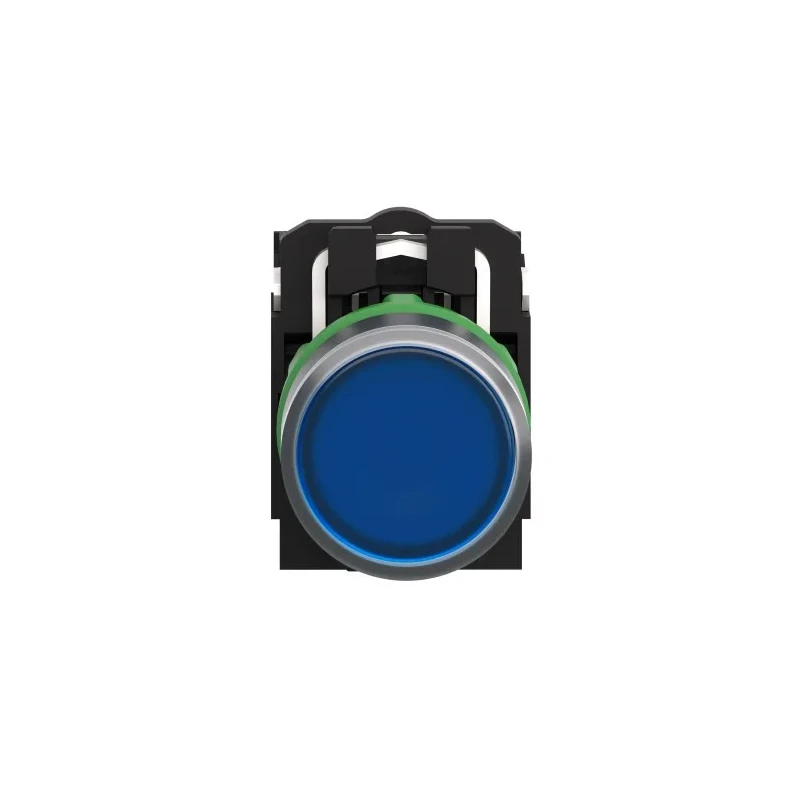

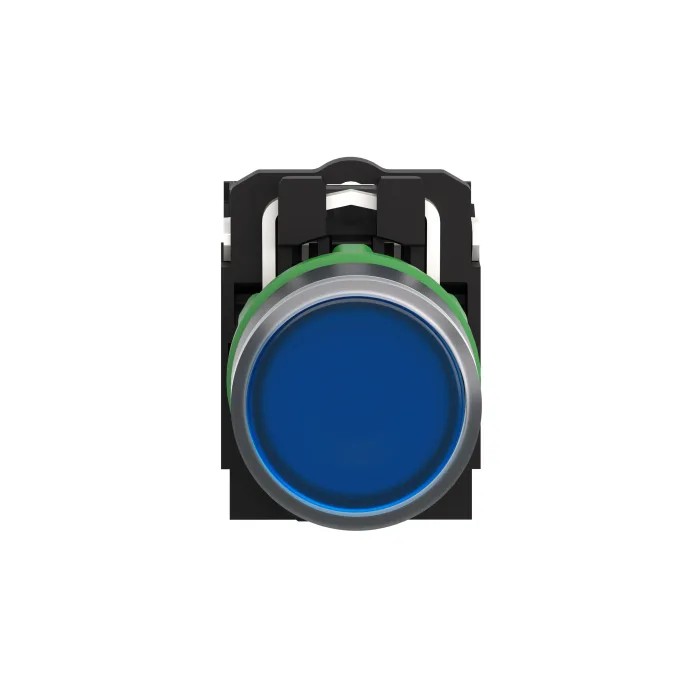

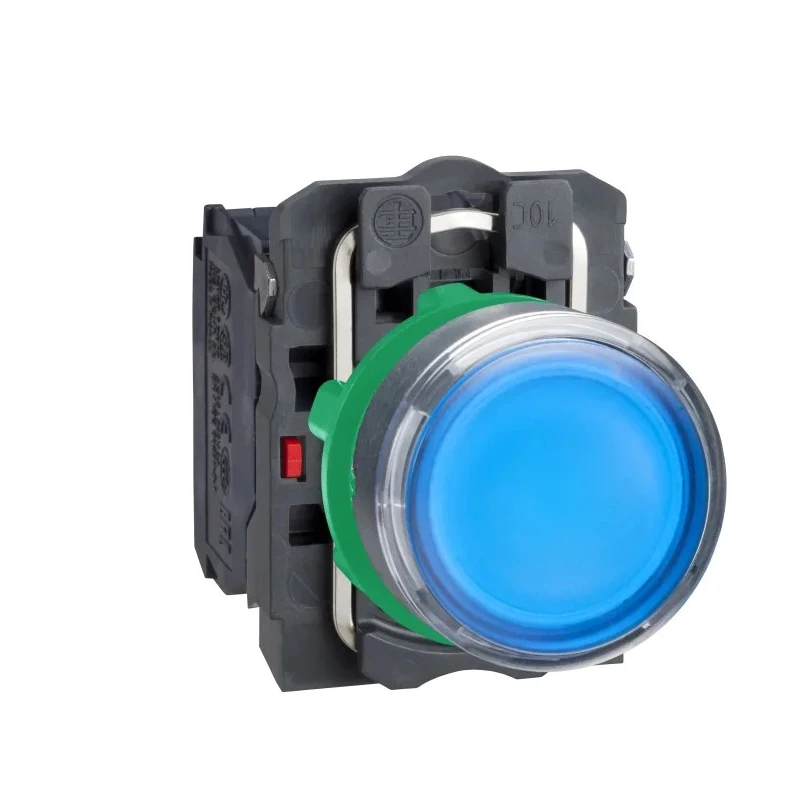

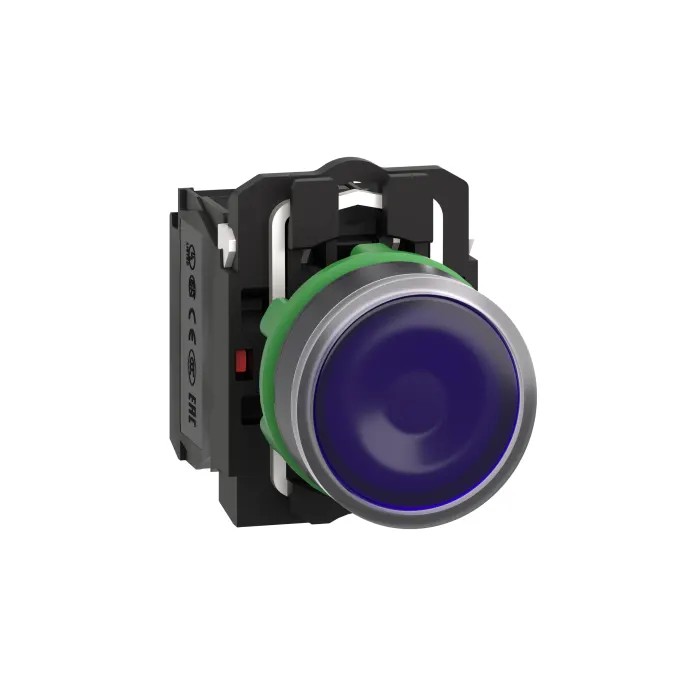

Schneider Electric Illuminated Push Button Switch, Blue LED, Spring Return, Panel Mount, 22 mm Cutout, SPDT, 24V XB5AW36B5
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 57mm |
| Model | XB5AW36B5 |
| IP Rating | IP66, IP67, IP69K |
| Width | 30mm |
| Mount Type | Panel Mount |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Blue |
| Switch Operation | Spring Return |
| Actuator Colour | Blue |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 100mA |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- Designed for panel mounting with a 22 mm cutout for space efficiency.
- Features a single-pole double-throw (SPDT) contact configuration with screw terminals.
- Operates at 24V AC/DC with a bright blue LED illumination for clear status indication.
- Designed to endure harsh environments with IP66, IP67, and IP69K ratings.
- Wide operating temperature range from -25°C to 70°C for extreme conditions.
- Reliable electrical performance with silver-alloy contacts rated for 100 mA switching current.
- Suitable for industrial automation, safety control systems, and machinery panels.
- Repairable by the end user, supporting sustainability and long-term use.
Product Description
Schneider Electric XB5AW36B5 Illuminated Push Button Switch combines durability with advanced functionality for industrial applications. Featuring a blue LED illumination and spring return operation, this switch is ideal for panel mounting in control systems.
The compact 22 mm cutout and round actuator style allow space-saving installations while providing a clear tactile response. With a robust IP66, IP67, and IP69K rating, it withstands moisture, dust, water jets, and steam cleaning, making it well-suited for food processing, mining, and packaging industries.
The switch operates at 24V AC/DC and supports a contact voltage of up to 600V AC/DC with a switch contact current of 100 mA. Silver-alloy contacts ensure reliable conductivity and excellent wear resistance under electrical arcing conditions.
The device is engineered to work reliably in extreme conditions ranging from -25°C to +70°C. Screw terminals provide secure connections and resistance to vibration and shocks.
This pushbutton is an excellent choice for industrial automation, safety control systems, medical devices, and machinery that require illuminated pushbutton switches with high ingress protection and long service life.
Designed for efficient panel mounting with a 22 mm cutout size. Illuminated with a bright blue LED for clear operational status. Spring return mechanism ensures the button returns to the default position after actuation.
IP66, IP67, and IP69K ratings enable use in harsh and wet environments. Silver-alloy contacts provide excellent electrical conductivity and durability. Compact dimensions reduce panel space usage without compromising functionality.
Compatible with a wide range of industrial and commercial applications including mining, packaging, and food processing. End-user repairable design supports sustainability and reduces downtime.
Choose Schneider Electric pushbutton switches from EnvMart for reliable, high-quality components suitable for demanding industrial uses. Explore related products and technical solutions in our comprehensive industrial automation category to enhance your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration.
It operates at 24V AC/DC and supports a contact voltage of up to 600V AC/DC.
The switch has a height of 42 mm, a width of 30 mm, and a length of 57 mm.
It operates effectively in a temperature range from -25°C to +70°C.

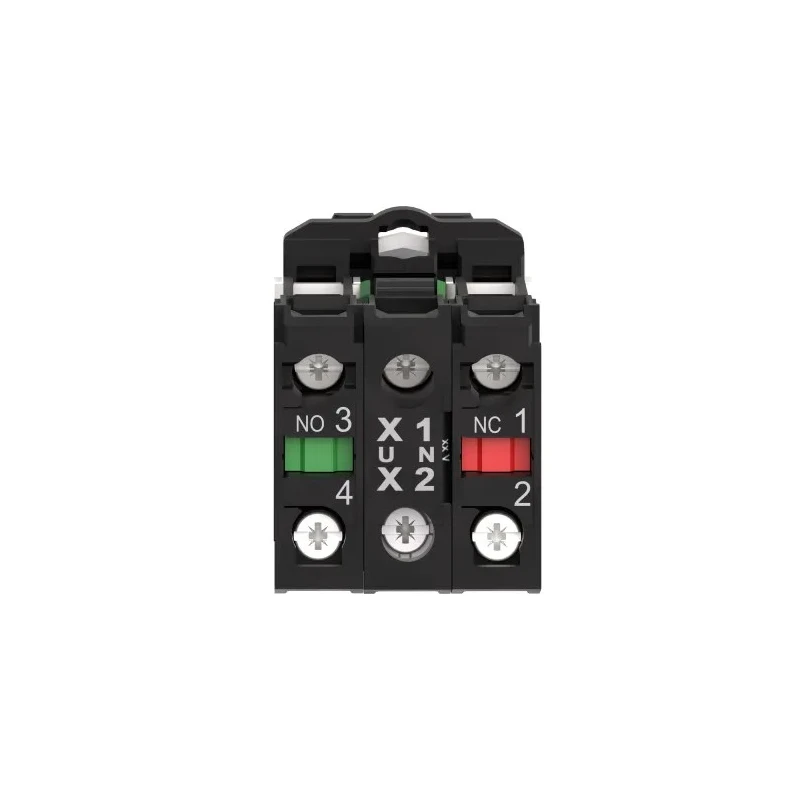

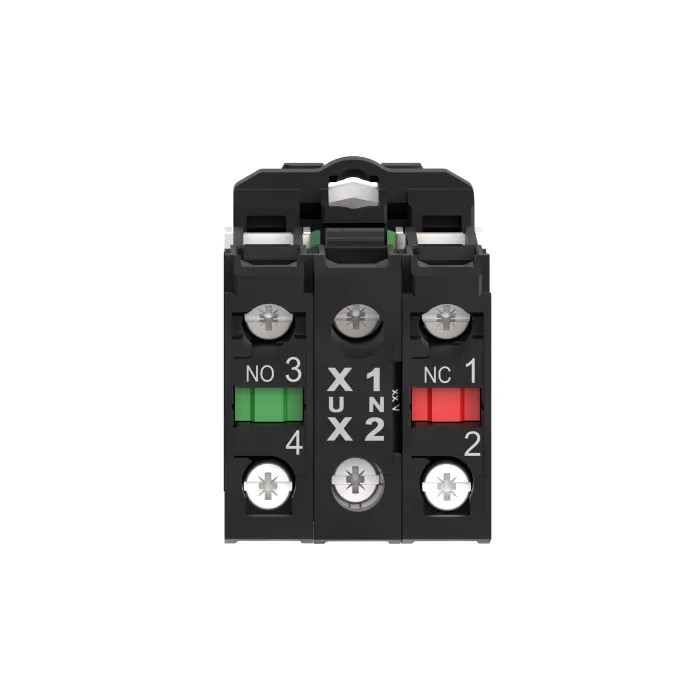

The switch is equipped with screw terminals for secure connections.
It has an IP66, IP67, and IP69K rating, making it suitable for harsh and wet environments.
The spring return mechanism ensures that the button returns to its default position after actuation.
The switch features a bright blue LED illumination for clear operational status indication.
It is suitable for industrial automation, safety control systems, and machinery panels.
The switch is rated for a maximum switching current of 100 mA.
The country of origin for this product is France.
Yes, it is designed to be repairable by the end user, supporting sustainability and long-term use.
