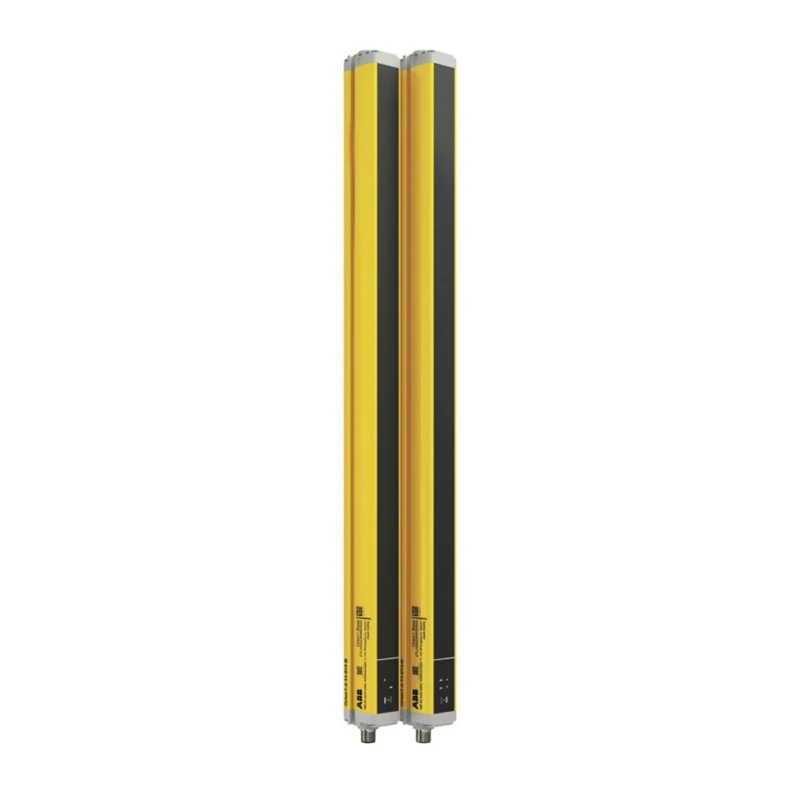

ABB Light Curtain Receiver and Sender 64 Beams 30 mm Resolution Type 4 Safety 24V DC 2TLA022302R0700 Orion1-4-30-120-B

Free Delivery in India | Lowest Global Shipping Charges

ABB Light Curtain Receiver and Sender 64 Beams 30 mm Resolution Type 4 Safety 24V DC 2TLA022302R0700 Orion1-4-30-120-B



Category Safety Light Curtains Brand ABB Condition New

Specifications

Country of Origin	Hungary
Brand	ABB
Height	37mm
Length	1.28m
Model	2TLA022302R0700 Orion1-4-30-120-B
Number of Beams	64
Width	32mm
Terminal type	M12 Connector
Component Type	Receiver, Sender
Standards/Approvals	e
Maximum Supply Voltage	24V dc
Safety Type	Type 4
Protective Height	1200mm
Maximum Protective Width	19m
Minimum Scanning Distance	0.2m
Maximum Scanning Distance	19m
Maximum Response Time	21ms
Beam Resolution	30mm
A local reset button can be connected directly to the light curtain	no need for cable between the reset button and the electrical cabinet or for an extra control module
EN ISO 13849-1	2008 PL e, Cat 4
EN 61508-1..4	2010 SIL3
EN 62061	2005/A1:2013 SIL CL 3
ABB Light Curtain Receiver, Sender, 16 Beam(s), 30 mm ResolutionBrand	ABB

Key Features

Designed for finger and hand detection in hazardous areas.
Includes both receiver and sender components for complete protection.
Features 64 beams providing 1200 mm protective height and 19 m maximum width.
Equipped with M12 connectors for rapid cabling.
Maximum response time of 21 ms supports fast machine stop.
Supports local reset button without extra control modules.
Wide alignment angle and rotation brackets simplify installation.
Protective tubes and lens shields ensure reliability in harsh environments.

Product Description

ABB 2TLA022302R0700 Orion1-4-30-120-B Light Curtain Receiver and Sender is a sophisticated Type 4 safety device designed for industrial automation applications requiring finger and hand detection close to hazardous machinery. Operating at 24V DC, this light curtain features 64 beams with a 30 mm resolution, providing a protective height of 1200 mm and an extensive protective width of up to 19 meters.

The device includes both the transmitter and receiver components, enabling reliable monitoring of dangerous zones and ensuring compliance with the highest safety standards. Integration is simplified with M12 connectors, rotation brackets for simplified alignment, and local reset button compatibility eliminating the need for additional control modules.

Its compact profile with dimensions of 37 mm height, 32 mm width, and 1.28 m length facilitates mounting near machinery while ensuring robustness. The 21 ms maximum response time allows rapid shutdown in emergency conditions.

Built for industrial, manufacturing, automation control, and safety engineering uses, this light curtain supports applications in repetitive machine access zones where operator safety is critical. Protective tubes and lens shields provide additional durability for harsh environmental conditions.

Standards compliance includes EN ISO 13849-1:2008 PL e Category 4, EN 61508 SIL3, and EN 62061 SIL CL 3, with CE, cULus, and TUV approvals. The product is manufactured in Hungary and offers reliable, efficient safeguarding for automated machinery and manual servicing environments.

Designed for finger and hand detection with 64 beams for high safety. Includes receiver and sender for complete area protection. Compact dimensions for close proximity mounting to hazardous machines. Local reset button compatibility speeds up troubleshooting and control.

M12 connectors simplify installation and cabling tasks. Robust design with protective tubes and lens shields for longevity. Meets stringent safety standards including EN ISO 13849-1 and SIL certifications. Ideal for industrial automation, manufacturing, and safety protection applications.
