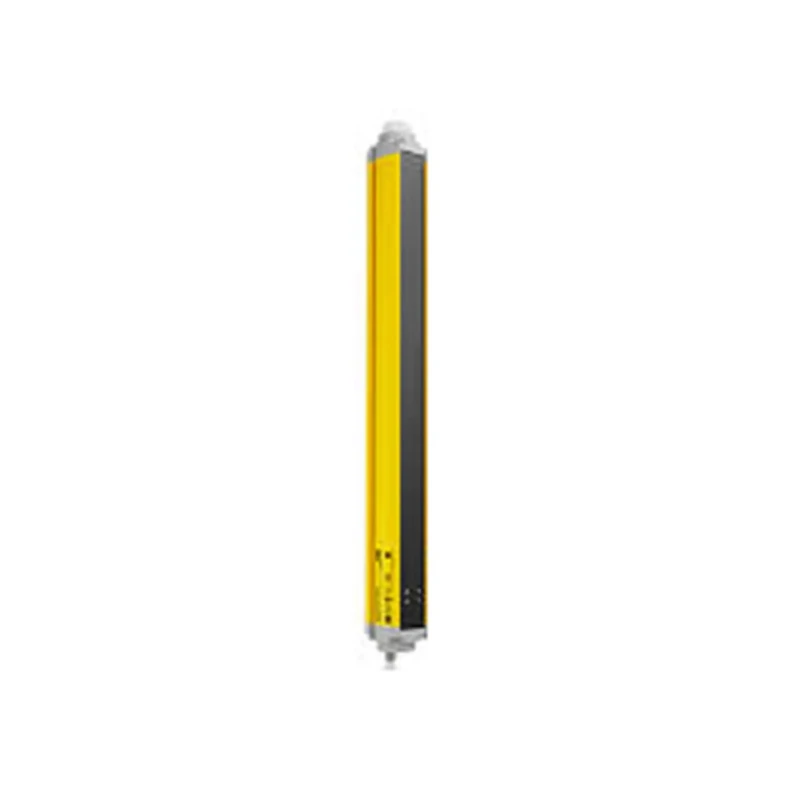

ABB Light Curtain, Type 4 Safety, 3 Beams, 800mm Protective Height, 8m Max Scanning 2TLA022306R0100 Orion3-4-K2C-080-B

Free Delivery in India | Lowest Global Shipping Charges

ABB Light Curtain, Type 4 Safety, 3 Beams, 800mm Protective Height, 8m Max Scanning 2TLA022306R0100 Orion3-4-K2C-080-B



Category Safety Light Curtains Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	56.9mm
Length	906.35mm
Model	2TLA022306R0100 Orion3-4-K2C-080-B
Number of Beams	3
Width	52mm
Terminal type	8-Pin M12
Standards/Approvals	e
Safety Type	4
Protective Height	800mm
Maximum Protective Width	65mm
Minimum Scanning Distance	0.5m
Maximum Scanning Distance	8m
Maximum Response Time	12ms
EN ISO 13849-1	2008 PL e, Cat 4
EN 61508-1..4	2010 SIL3
EN 62061	2005/A1:2013 SIL CL 3
A local reset button can be connected directly to the light grid	no need for cable between the reset button and the electrical cabinet or for an extra control module

Key Features

Type 4 safety rating ensures maximum protection in hazardous environments.
Protective height of 800mm suitable for body detection applications.
Operating scanning distance ranges from 0.5m to 8m for flexible installation.
8-Pin M12 terminals enable reliable and fast cabling connections.
Light grids combine active and passive units to reduce overall wiring requirements.
Supports local reset button connection without extra cabling or control modules.
Provides extensive error indications to minimize troubleshooting time.
Sturdy profile construction ensures durability in industrial settings.

Product Description

ABB 2TLA022306R0100 Orion3-4-K2C-080-B Light Curtain is a high-performance safety sensor designed for industrial, automation, and control gear applications. Featuring three beams with a protective height of 800mm, it ensures reliable body detection and perimeter guarding. The device combines transmitter and receiver into a single active unit, with beams reflected by a passive mirror unit, significantly reducing cabling complexity.

Designed for environments requiring stringent safety, the light curtain operates effectively between 0.5 meters minimum scanning distance and up to 8 meters maximum scanning distance. Its type 4 safety classification and compliance with international standards including EN ISO 13849-1 (PL e, Category 4), EN 61508 SIL3, and EN 62061 SIL CL 3 guarantee robust and reliable protection for machinery and personnel.

The unit includes features such as a local reset button connection capability without additional wiring or control modules, error indication to facilitate swift troubleshooting, and alignment aids through rotational brackets and alignment level indicators. The sturdy profile construction and 8-Pin M12 terminal connectors support installation in demanding industrial and manufacturing settings.

Applications include body detection, perimeter guarding, and scenarios where power is available on one side and a rugged protective profile is essential. Both base and extended model options provide detection, external device monitoring (EDM), and local reset functions. The extended model additionally supports muting sensor integration without requiring remote muting modules.

This product originates from Italy, ensuring adherence to high manufacturing standards. It is suitable for use in industrial automation, manufacturing facilities, HVAC systems, and safety-critical environments.

Type 4 safety rating providing highest protection level. Three beams with 800mm protective height for effective body detection. 0.5m to 8m scanning distance for versatile installation. 8-Pin M12 terminal type for easy cabling.

Active unit combines transmitter and receiver, passive mirror reduces wiring. Local reset button connection without extra cabling or control modules. Complies with EN ISO 13849-1, EN 61508 SIL3, EN 62061 SIL CL 3 standards.

Extensive error indication reduces downtime. Sturdy profile suitable for industrial environments. Explore the full range of ABB Safety Light Curtains at EnvMart for industrial and commercial safety solutions.
