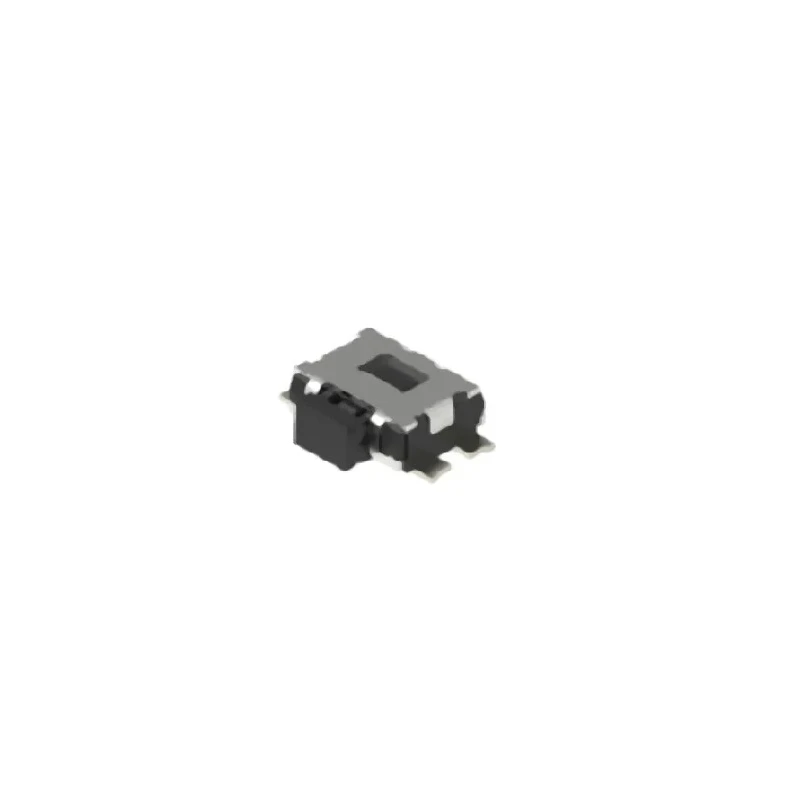

Alps Alpine Black Tactile Switch Button 0.65 mm SPST 50mA 12 V dc Surface Mount SKSCLBE010

Name: Alps Alpine Black Tactile Switch Button 0.65 mm SPST 50mA 12 V dc Surface Mount SKSCLBE010
Brand: Alps Alpine
SKU: 388838
Price: 37.92 INR
Availability: InStock



Category Tactile Switch Brand Alps Alpine Condition New

Specifications

Country of Origin	Japan
Brand	Alps Alpine
Height	1.25mm
Length	3.5mm
Model	SKSCLBE010
Width	3.55mm
Mount Type	Surface
Series	SKSC
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Actuator Length	0.65mm
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	2.2N
Mechanical Life	100000Cycles

Key Features

The switch supports a maximum current of 50mA at 12 V dc.
It features a black button actuator with a straight orientation.
The mount type is surface mount with low contact resistance and high reliability.
The operating temperature range is from -30°C to 85°C.
The mechanical life of the switch is rated for 100,000 cycles.
The switch operates with an actuation force of 2.2N.
The compact dimensions include 3.5 mm length, 3.55 mm width, and 1.25 mm height.
The product complies with RoHS standards and originates from Japan.

Product Description

Alps Alpine SKSCLBE010 Black Tactile Switch Button is a compact, surface mount tactile switch designed for low current applications. This SPST (single pole single throw) momentary switch features a black actuator button with a 0.65 mm travel, offering precise tactile feedback and reliable operation suitable for various electronics applications.

The switch has a rated contact current of 50mA at 12V dc, making it ideal for low power control circuits, audio and visual equipment, and automotive electronics. With low contact resistance and high contact reliability, it ensures a consistent switching performance over its mechanical life of 100,000 cycles.

The switch's operating force is 2.2N, allowing for easy actuation without excessive pressure. Its dimensions of 3.5 mm length, 3.55 mm width, and 1.25 mm height support compact PCB designs and surface mount assembly processes. The actuator is oriented straight to provide a tactile button feel.

Operating temperature ranges from -30°C up to 85°C, supporting use in various environmental conditions. The SKSCLBE010 switch meets RoHS compliance standards, ensuring environmentally safe manufacturing practices.

Maximum contact current of 50mA at 12 V dc. Momentary SPST switch operation with snap action. Surface mount design with compact form factor. Black button actuator with 0.65 mm travel length. Operating force of 2.2N for reliable tactile feedback.

Rated mechanical life of 100,000 cycles. Temperature range from -30°C to 85°C suitable for diverse applications. RoHS compliant and manufactured in Japan.

This tactile switch is widely applicable across industrial automation, consumer electronics, automotive controls, and other electronic devices requiring reliable momentary switching.
