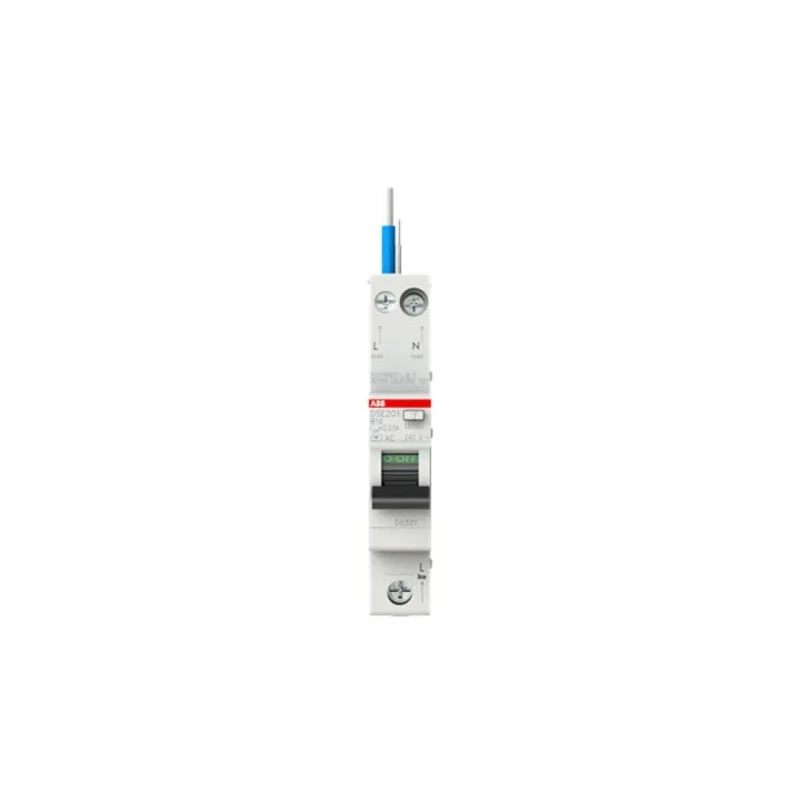

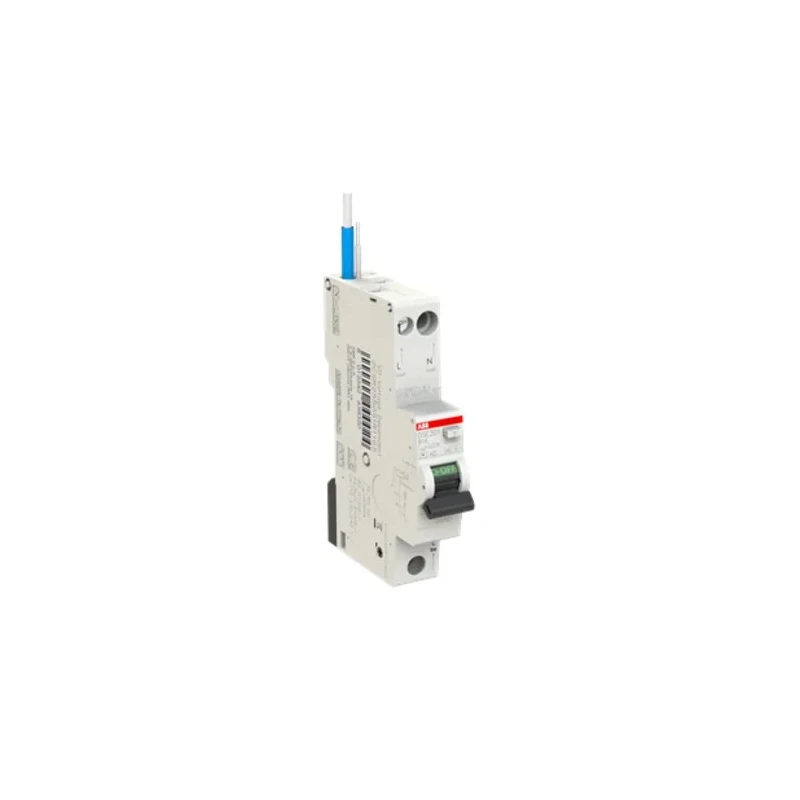

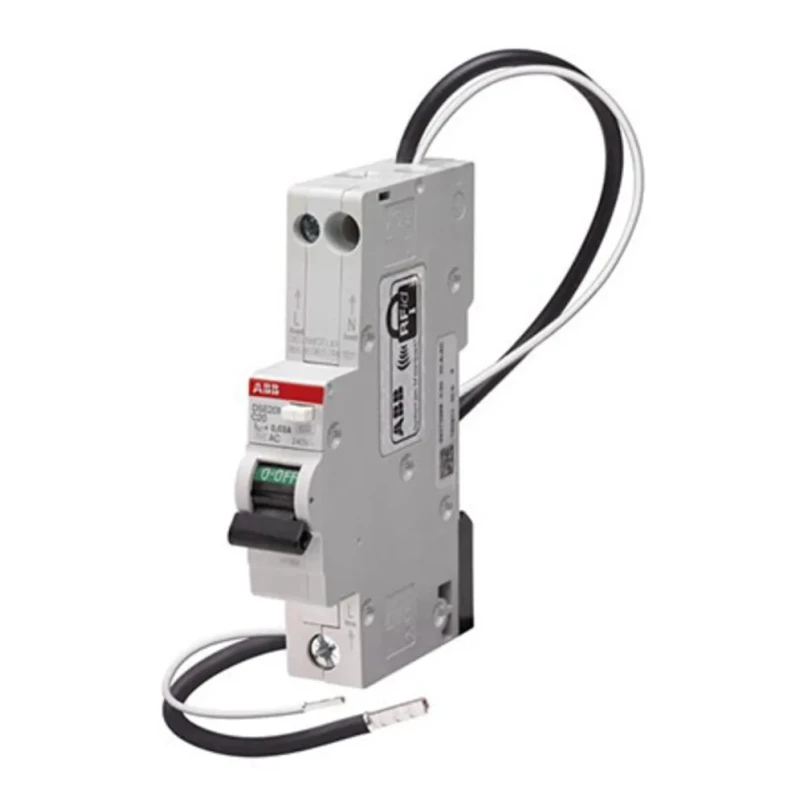

ABB Residual Current Circuit Breaker with Overload Protection 16A, 1-Pole, 30mA 2CSR255051R1165 DSE201 B16 AC30 - N Blue
Specifications
| Country of Origin | Italy |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 100mm |
| Model | 2CSR255051R1165 DSE201 B16 AC30 - N Blue |
| Depth | 68.9mm |
| Width | 17.6mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | DSE201 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 61009, IEC/EN 62606 |
| Rated AC Voltage | 240V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
| RCBO's | DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz |
Key Features
- Built for DIN rail mounting enabling easy integration into consumer units.
- Features a thermal magnetic tripping mechanism for accurate overcurrent and ground-fault protection.
- Operates at rated AC voltage of 240V with a breaking capacity of 6kA.
- Equipped with a toggle switch with red and green indicators for simple operation.
- Complies with IEC/EN 61009 and IEC/EN 62606 standards ensuring safety and quality.
- Type B tripping characteristic allows rapid circuit interruption at 3 to 5 times rated current.
- Screw terminal connection supports cable or bus bar termination for installation flexibility.
- Operating temperature range from -25 to +55 °C suits various environments.
Product Description
ABB 2CSR255051R1165 DSE201 B16 AC30 - N Blue Residual Current Circuit Breaker (RCBO) combines earth leakage and overload protection in a single module, designed for single-phase circuits in residential and commercial electrical systems.
It is part of the DSE201 series, optimized for DIN rail installation and constructed to meet international safety standards IEC/EN 61009 and IEC/EN 62606. The device features a 16A current rating with a trip sensitivity of 30mA, making it suitable for fault detection and timely circuit interruption.
The RCBO incorporates a type B thermal magnetic tripping mechanism, which ensures quick disconnection when currents reach 3 to 5 times the rated load. This protects wiring and connected devices from damage due to short circuits, overloads, and earth faults.
Its robust design includes screw terminals for secure cable or bus bar connections, with wide terminal openings allowing easy access. The toggle switch includes red and green indicators clearly displaying on/off status and can be padlocked to prevent unauthorized operation.
Designed for versatility, it suits consumer units, distribution boards, and control cabinets. Functional neutral and earth wires are included, facilitating straightforward wiring and installation.
Rated for 240V AC voltage operation. Breaking capacity of 6kA to handle fault currents effectively. Compact dimensions (100mm height, 68.9mm depth, and 17.6mm width) minimize space usage. Operational in temperatures ranging from -25 to +55 °C and frequency range 50 to 60Hz.
This ABB RCBO provides a high level of electrical safety and protection in residential, commercial, and industrial electrical installations. It ensures the safety of electrical circuits by preventing electrical shock and fire due to earth faults and overloads.
Explore more high-quality circuit protection devices within the ABB product range at EnvMart for reliable power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 16A, suitable for single-phase circuits.
The breaking capacity is 6kA, which allows it to handle fault currents effectively.
This model features a thermal magnetic tripping mechanism, ensuring quick disconnection during overloads or faults.
It operates at a rated AC voltage of 240V.
The dimensions are 100mm in height, 68.9mm in depth, and 17.6mm in width.
It is designed for DIN rail mounting, facilitating easy integration into consumer units.
The trip sensitivity is 30mA, making it suitable for detecting earth faults.
It complies with IEC/EN 61009 and IEC/EN 62606 standards, ensuring safety and quality.
It operates within a temperature range of -25 to +55 °C, suitable for various environments.
It features screw terminals for secure cable or bus bar connections, allowing for flexible installation.
It supports an optimum frequency range of 50 to 60Hz.
This model provides AC type earth leakage protection, which is essential for safety in electrical installations.
