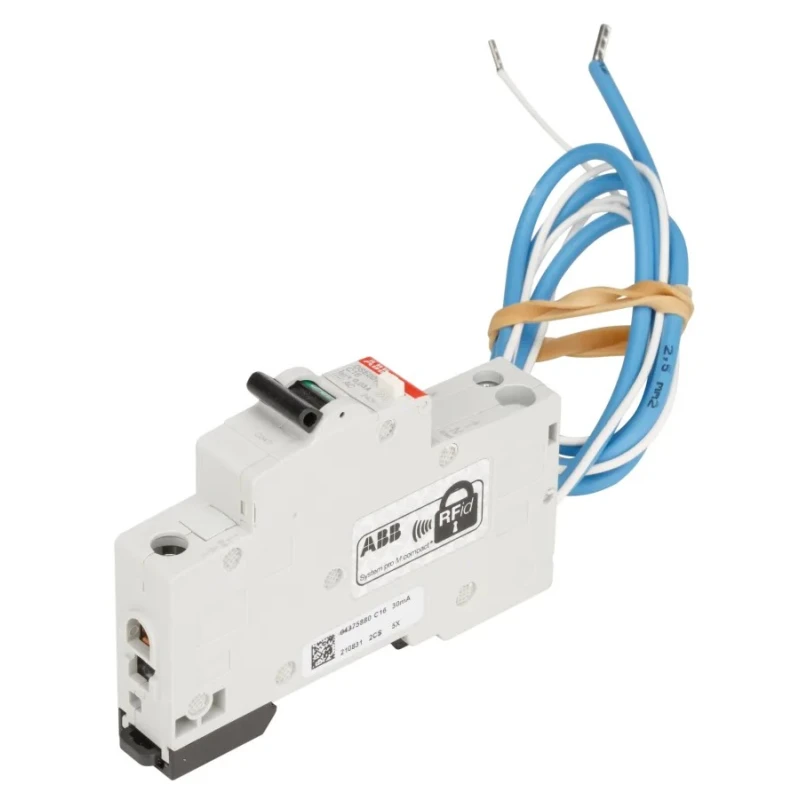

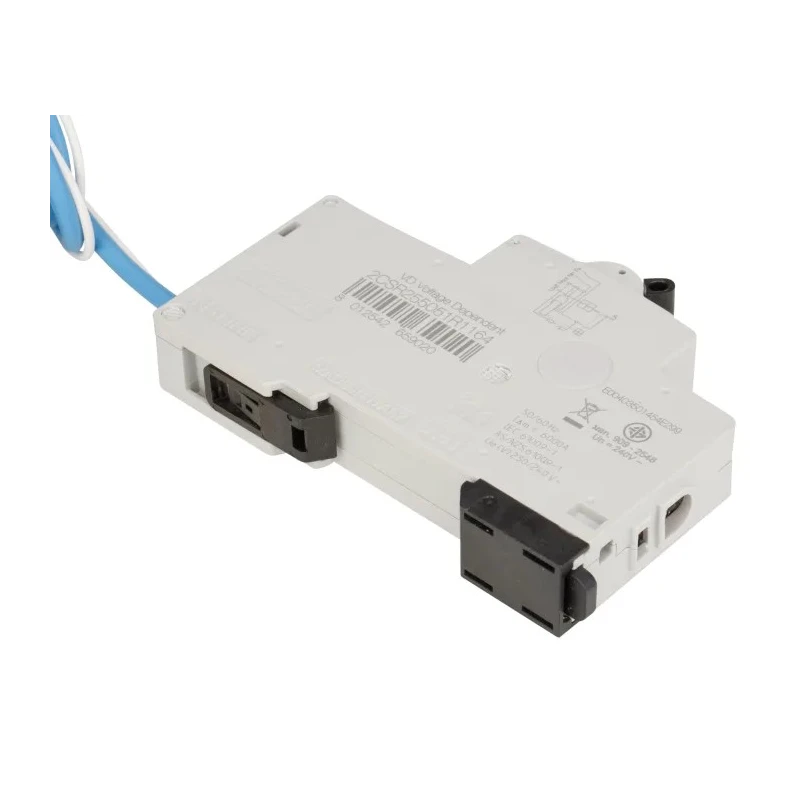

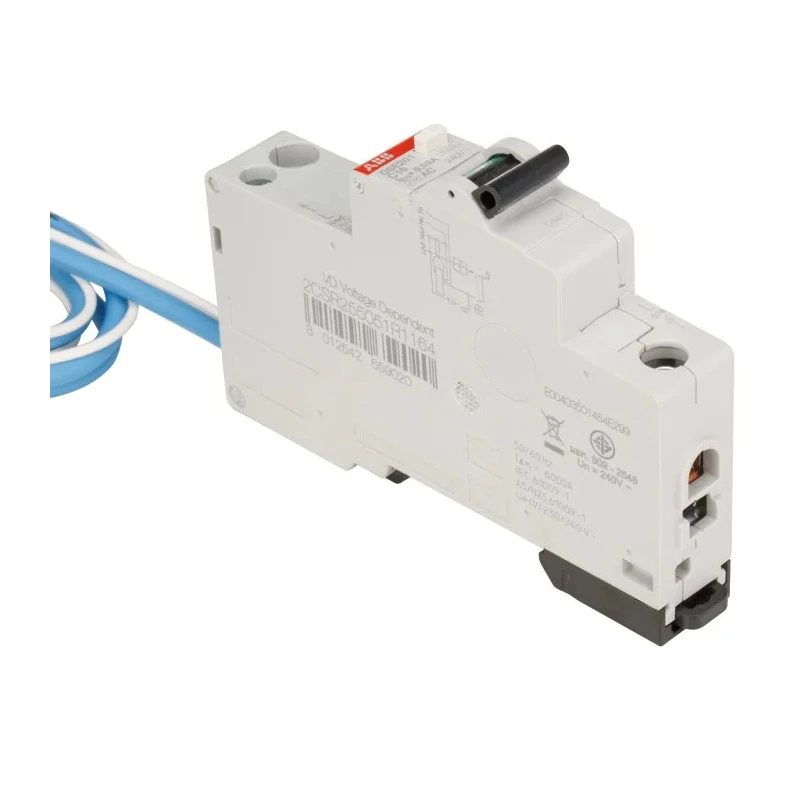

ABB Residual Current Circuit Breaker with Overload Protection 16A, 1-Pole, 30 mA 2CSR255051R1164 DSE201 C16 AC30 - N Blue

ABB 2CSR255051R1164 DSE201 C16 AC30 - N Blue Residual Current Circuit Breaker combines residual current detection and overload protection to safeguard electrical systems. Rated for 16A current and 240V AC, it is designed for single-pole installations requiring a 30 mA sensitivity trip for earth leakage protection. The device uses a thermal magnetic tripping mechanism with Type C characteristics, ideal for managing short circuits and overloads in commercial, domestic, and industrial settings.

This DIN rail mountable RCBO features a compact form factor with dimensions of 100mm height, 17.6mm width, and 68.9mm depth, facilitating easy retrofit and installation in consumer units and distribution boards. Screw-type terminals ensure solid contact connections, while the toggle switch provides a clear reset function. The contact position indicator offers visible confirmation of the switch status, improving inspection safety.

Additional safety is provided by the larger neutral hole allowing insulated screwdriver use, mitigating installation risks. This product upholds international safety standards, including RoHS and IEC certifications, and is manufactured in Italy for assured quality.

Common applications include use in the construction industry, automated process control panels, as well as domestic, commercial, and industrial distribution systems. The device ensures protection from earth faults, indirect contacts, and electrical faults that could result in equipment damage or fire hazards.

Provides combined residual current and overload protection for electrical circuits. Equipped with thermal magnetic tripping mechanism ensuring reliable short circuit and earth fault protection. Compact design with 100mm height and DIN rail mount compatibility for easy installation.

Features screw terminals for secure electrical connections and toggle switch reset actuator. Breaking capacity of 6kA supports industrial and domestic electrical safety requirements. Type C tripping characteristic suitable for inductive loads and commercial installations.

Earth leakage protection type is AC with 30 mA sensitivity for enhanced safety. Larger neutral hole permits insulated screwdriver tightening for operational safety. Contact position indicator displays device ON/OFF status to aid safety checks.

Manufactured in Italy under RoHS and IEC standards ensuring compliance and quality assurance. Explore more ABB electrical protection devices and circuit breakers on EnvMart for reliable, advanced industrial and commercial applications.
