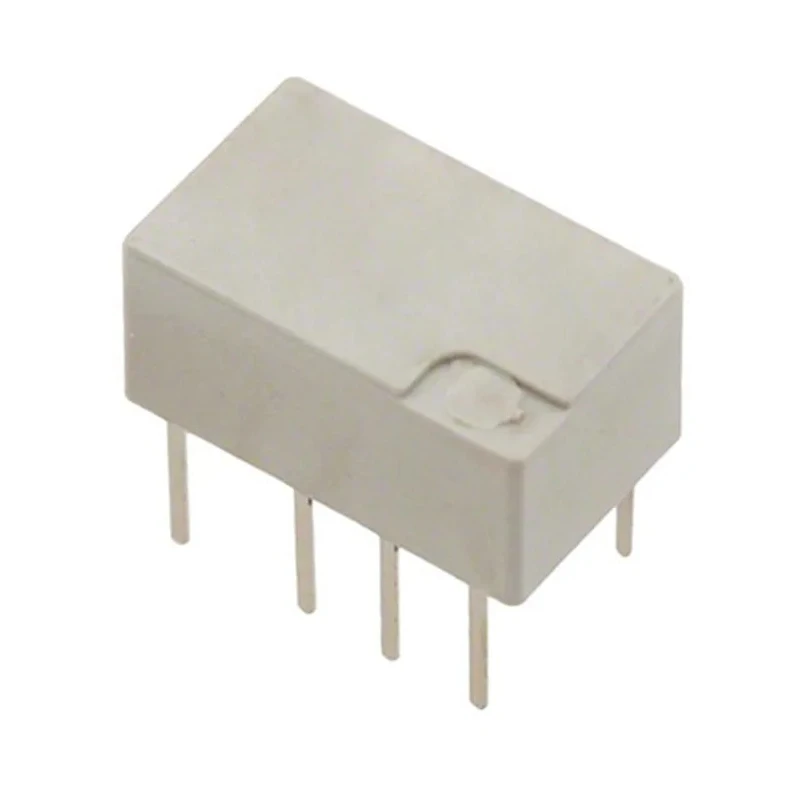

TE Connectivity PCB Signal Relay 3V DC Coil 2A DPDT IM Series 1462037-4
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 5.2mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 64Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
Key Features
- The relay features a low coil power consumption of 140mW for efficient operation.
- Slimline IM series design with a low profile of 5.65mm to minimize board space usage.
- Gold plated bifurcated contacts ensure reliable conductivity and durability.
- Hermetically sealed with IP67 rating providing protection against environmental factors.
- Capable of mechanical shock resistance up to 300G functional and 500G survival.
- Supports switching AC voltage up to 250V and DC voltage up to 220V.
- The product operates reliably in temperatures ranging from -40°C to 85°C.
- Coil resistance rated at 64Ω and terminal type designed for soldering on PCBs.
Product Description
TE Connectivity 1462037-4 PCB Signal Relay is part of the IM series slimline PCB mount relays that offer a low profile height of 5.65mm and compact footprint of 60 mm². Designed with a coil voltage of 3V DC and a switching current capacity of 2A, this relay is ideal for electronic circuits requiring reliable DPDT signal switching.
The relay's gold plated bifurcated contacts ensure high reliability with minimal contact resistance. Its hermetic sealing provides an IP67 rating, making it well protected against dust and water ingress, suitable for demanding environments. The unit withstands significant mechanical shocks (up to 300G functional), making it robust for industrial and commercial applications.
With a coil power consumption of only 140mW, this relay is energy efficient. It supports switching voltages up to 250V AC and 220V DC, facilitating integration into diverse electrical and electronic systems. Operating temperature range is wide, from -40°C to 85°C, enabling use across various climates and operational conditions.
Applications include telecommunications equipment, optical network terminals, office and medical equipment, test and measurement apparatus, and automotive electronics.
Coil resistance is specified at 64Ω, and the relay is designed for PCB mounting with solder terminals. The compact form factor and robust features make it suited for automated and signal conditioning equipment in industrial, laboratory, and commercial contexts.
The relay has a height of 5.2 mm, width of 6 mm, and length of 10 mm. Contact material is gold plated for corrosion resistance and reliable signal transfer. It complies with RoHS standards ensuring environmental safety. Country of origin is Portugal. This product is new and built by TE Connectivity, a global leader in connectivity and sensor solutions.
Explore more precision relays and signal conditioning components within the Relays & Contactors category at EnvMart to find suitable parts tailored to your industrial and commercial electrical design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 3V DC.
It has a switching current capacity of 2A.
The relay has a height of 5.2 mm, a width of 6 mm, and a length of 10 mm.
This model is designed for PCB mounting with solder terminals.
It supports switching voltages up to 250V AC and 220V DC.
The coil power consumption is 140mW.
It operates reliably in temperatures ranging from -40°C to 85°C.
The contact configuration is DPDT (Double Pole Double Throw).
The contacts are made of gold plated material for reliable conductivity.
It has an IP67 rating, providing protection against dust and water ingress.
It can withstand mechanical shock resistance up to 300G functional and 500G survival.
Yes, it complies with RoHS standards for environmental safety.
