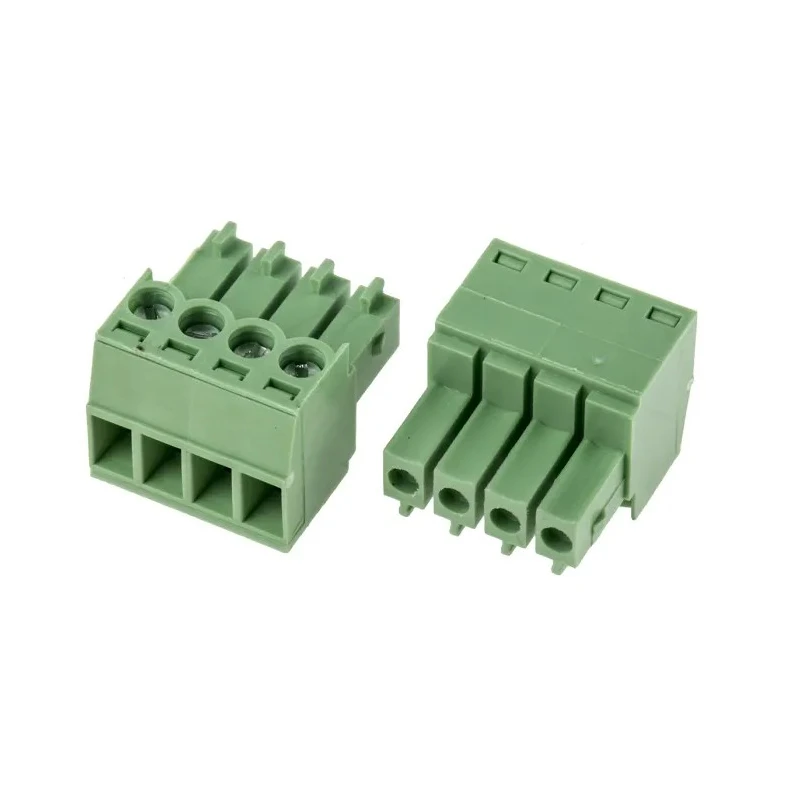

RS PRO Pluggable Terminal Block 4-Contact 3.5 mm Pitch 1 Row Green Polyamide Housing 200V 10A 897-1004
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Right Angle |
| Current | 10A |
| Length | 14mm |
| Model | 897-1004 |
| Depth | 15.6mm |
| Width | 11.4mm |
| Housing Material | Polyamide |
| Series | RS PRO |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 4 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.13mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Wire Connection Method | Screw |
| RS PRO Pluggable Terminal Block, 4-Contact, 3.5 mm Pitch, 1 RowBrand | RS PRO |
Key Features
- This terminal block has a green polyamide (PA66) housing known for UL94-V0 fire safety certification.
- It features 4 female contacts with a right-angle orientation for easy mounting.
- The screw termination method ensures secure wire connections within 0.13 mm² to 1.3 mm² wire size limits.
- The terminal block supports a current rating of 10 A and operates at 200 V.
- It uses a through-hole mount design for straightforward PCB installation.
- The tin-plated steel screws and contacts provide resistance to corrosion and oxidation.
- This versatile connector is suitable for electronic equipment and industrial circuit applications.
Product Description
RS PRO 897-1004 Pluggable Terminal Block, 4-Contact, 3.5 mm Pitch, 1 Row is designed for effective and safe electrical circuit connections on printed circuit boards (PCBs). The 3.5 mm pitch dimension and single-row layout make it compact and efficient for PCB installations.
This connector uses a green polyamide housing material (PA66), certified to UL94-V0, ensuring excellent fire safety and durability under demanding conditions. It features a female connector gender with a right-angle orientation facilitating robust and convenient connections on boards.
The terminal block supports wire sizes from 0.13 mm² to 1.3 mm² and employs a screw termination method using tin-plated steel screws and contacts to resist corrosion and maintain conductivity. Rated for currents up to 10 A and voltages up to 200 V, it is suited for a range of applications in electronics and industrial control systems.
Installation is straightforward with through-hole mounting, simplifying the assembly process. These technical features make this RS PRO pluggable terminal block ideal for industrial, manufacturing, electronic assembly, and HVAC system connections where reliable, maintainable wiring is essential.
This terminal block has a green polyamide (PA66) housing known for UL94-V0 fire safety certification. It features 4 female contacts with a right-angle orientation for easy mounting. The screw termination method ensures secure wire connections within 0.13 mm² to 1.3 mm² wire size limits.
The terminal block supports a current rating of 10 A and operates at 200 V. It uses a through-hole mount design for straightforward PCB installation. The tin-plated steel screws and contacts provide resistance to corrosion and oxidation.
This versatile connector is suitable for electronic equipment and industrial circuit applications.
RS PRO is a trusted brand universally recognized for rigorous quality standards, meeting RoHS compliance and delivering products for demanding industrial and electronic applications. This pluggable terminal block series is part of their reliable, high-quality product offering.
Explore the RS PRO range for comprehensive electronic components and connectors suitable for diverse industrial and laboratory applications on EnvMart.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 10 A.
The terminal block accommodates wire sizes from 0.13 mm² to 1.3 mm².
This model features 4 female contacts.
The pitch of this terminal block is 3.5 mm.
The contacts are oriented at a right angle for easy mounting.
The housing is made of green polyamide (PA66), which is certified to UL94-V0 for fire safety.
The terminal block has a length of 14 mm, a width of 11.4 mm, and a depth of 15.6 mm.
It employs a screw termination method for secure wire connections.
Yes, this terminal block meets RoHS compliance standards.
It is suitable for electronic equipment and industrial circuit applications.
It uses a through-hole mount design for straightforward PCB installation.
