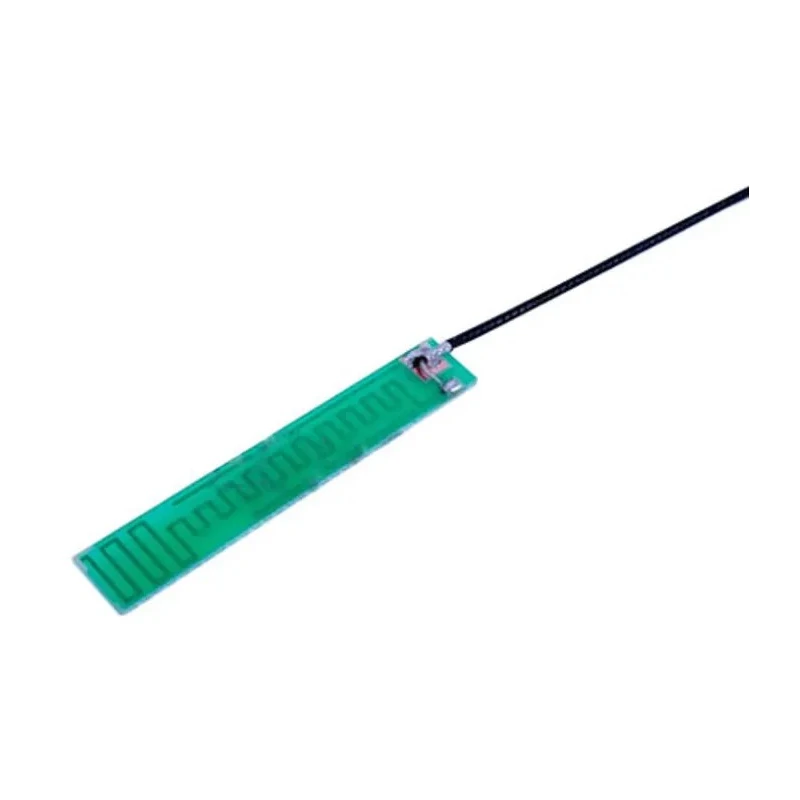

Siretta PCB WiFi Antenna 2.4GHz 0.1m Cable UFL Connector Internal Dipole ECHO18/0.1M/UFL/S/S/15

Free Delivery in India | Lowest Global Shipping Charges

Siretta PCB WiFi Antenna 2.4GHz 0.1m Cable UFL Connector Internal Dipole ECHO18/0.1M/UFL/S/S/15

Name: Siretta PCB WiFi Antenna 2.4GHz 0.1m Cable UFL Connector Internal Dipole ECHO18/0.1M/UFL/S/S/15
Brand: Siretta
SKU: 386153
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Siretta Condition New

Specifications

Country of Origin	India
Brand	Siretta
Model	ECHO18/0.1M/UFL/S/S/15
Cable Length	100mm
Connector Type	UFL
Bandwidth	10MHz
Series	Echo 18
Gain	0.8dBi
Maximum Frequency	2.4GHz
Minimum Frequency	2.4GHz
Internal/External	Internal
RF Protocols	WiFi
Antenna Physical Form	PCB
Antenna Mount Type	PCB
Directivity	Omni-Directional
Antenna Internal Construction	Dipole
Number of Bands	1

Key Features

This internal PCB antenna operates at 2.4 GHz frequency.
It features a 100 mm coaxial cable with a UFL connector for easy integration.
The antenna offers an omnidirectional radiation pattern with 0.8 dBi gain.
Operating temperature range is from -20° C to +60° C, suitable for various environments.
The antenna uses a vertical polarization with a quarter-wave dipole element.
Its compact form factor measures 37 mm by 6 mm, ideal for portable or watertight designs.
Has 50 ohm impedance ensuring compatibility with standard RF systems.
Offers 10 MHz bandwidth, supporting stable and efficient wireless signals.

Product Description

Siretta ECHO18/0.1M/UFL/S/S/15 PCB WiFi Antenna is a high-quality internal antenna designed for WiFi 2.4 GHz, Bluetooth, Zigbee, and ISM wireless communications. Its compact PCB form factor makes it well-suited for space-constrained applications such as portable devices and watertight enclosures, where reliable connectivity is essential.

Featuring a 37 mm by 6 mm antenna element with a vertical polarized quarter-wave dipole construction, it ensures omni-directional coverage and a peak gain of 0.8 dBi. The antenna is connected via a 100 mm 1.13 mm coaxial cable equipped with a UFL connector, simplifying installation and ensuring minimal signal loss.

Operating effectively at 2.4 GHz and providing a bandwidth of 10 MHz, this antenna is optimized for stable and efficient wireless performance. The 50 ohm impedance aligns with standard RF equipment requirements, facilitating easy integration into existing systems.

It withstands operating temperatures from -20° C to +60° C, making it suitable for industrial, commercial, and laboratory environments. Typical applications include WiFi modules, IoT devices, embedded systems, and other RF communication devices that require small size and robust wireless capability.

This antenna supports WiFi 2.4 GHz protocol and operates internally on a PCB form. It features a UFL connector and 100 mm coaxial cable for versatile connectivity. Compact dimensions of 37 mm x 6 mm allow for integration into small enclosures.

Omnidirectional dipole design provides consistent signal distribution. Temperature tolerance enables use in varied environmental conditions.

Perfect for electronics manufacturers, OEMs, and developers seeking compact WiFi antennas for embedded applications. Explore further selections in our WiFi Antennas category on EnvMart for compatible wireless components and tools.
