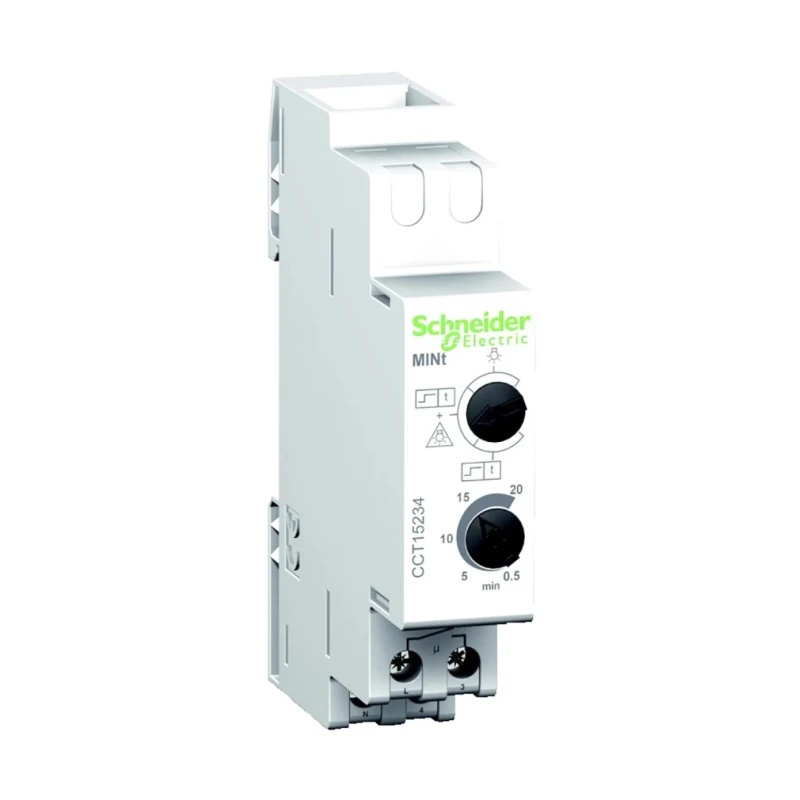

Schneider Electric Timer Light Switch Mint 230V CCT15234

Schneider Electric CCT15234 Timer Light Switch Mint 230V is designed for efficient time-controlled lighting applications within industrial, commercial, and residential electrical systems. Operating at 230V with an IP20 rating, this lighting timer switch supports modular timer functionality, managing loads up to 3600 W for incandescent and halogen light sources.

The unit operates with an adjustable time delay ranging from 30 seconds to 20 minutes, controlled via a potentiometer. It features automatic operation where any new activation restarts the timer, ensuring continuous timed control. Additionally, the override mode allows the lighting to remain permanently on when needed.

Distinct from standard timers, this model issues a pre-warning of lighting shutdown by flashing the connected light source near the end of the timer delay, enhancing awareness and safety.

The device supports two automatic operating modes: a timer with pre-warning and one without. Pushbutton controls allow up to two command sequences - short pulses under 2 seconds start and restart the adjustable delay or switch off lighting, while longer pulses initiate fixed delays of one hour, providing flexible operational modes for various applications.

With a compact modular form factor (89 mm height and 66 mm depth) and screw terminal connections, installation is straightforward in industrial control panels or building automation setups. The product is part of the Mint series and manufactured in Germany, ensuring precision engineering and reliable performance.

Features modular lighting timer operation up to 3600 W for incandescent and halogen lighting. Adjustable lighting time delay from 30 seconds to 20 minutes via potentiometer. Automatic operation with timer restart on new action.

Override function allows permanently on lighting. Lighting switching-off warning via light source flashing. Supports two automatic operating modes with or without pre-warning. Two command sequences per pushbutton enable flexible control.

Compact 89 mm height and 66 mm depth for modular installation. Screw terminal type for secure connections. Rated IP20 and operates at 230V AC maximum supply voltage. Manufactured in Germany ensuring quality and durability.

This Timer Light Switch is ideal for use in industrial automation, process control systems, commercial facilities, HVAC control, and residential building automation where timed lighting control improves energy efficiency and convenience.
