Schneider Electric Timer Light Switch 230V Modular Adjustable Timing Potentiometer Acti9

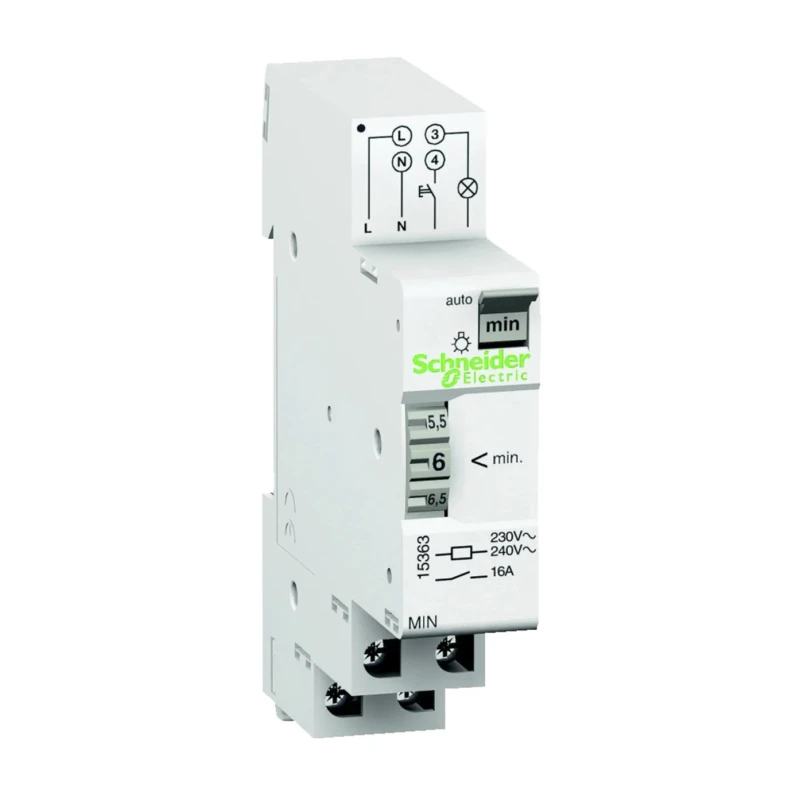

Schneider Electric Acti9 Timer Light Switch 230V is a modular lighting timer designed for precise automation in industrial, commercial, and residential settings. It supports incandescent and halogen loads up to 3600 W, facilitating timed lighting control with high reliability. Adjustment is done easily via an integrated potentiometer, permitting time delays from 30 seconds up to 20 minutes, making it versatile for various lighting automation needs.

The timer automatically restarts upon any new triggering action, ensuring continuous operational control. It also includes an override feature for maintaining permanent lighting when required. The device uses visual pre-warning signals by flashing the lighting before switch-off, enhancing safety and user awareness.

Two selectable automatic operating modes allow either timed control with or without pre-warning. The unit responds to pushbutton control pulses under or over 2 seconds, starting adjustable or fixed one-hour time delays respectively, with options to restart or switch off based on pulse duration. This flexibility allows sophisticated control sequences suitable for staircases, corridors, and other timed lighting applications.

The device features screw terminal connections for secure wiring and an IP20 protection rating suitable for indoor environments. Its compact form factor (83 mm height, 68 mm depth) enables easy installation in modular switch systems.

Manufactured in Germany, this timer conforms to REACH and RoHS standards, ensuring compliance with environmental and safety regulations. It is ideal for use in building automation, electrical control panels, industrial facilities, and residential lighting systems requiring automated time control.

Supports lighting loads up to 3600 W for incandescent and halogen lamps. Adjustable delay from 30 seconds to 20 minutes via potentiometer. Automatic restart of timing on new activation. Override function to keep lighting permanently on.

Pre-warning by lighting flashing before switch-off. Selectable operating modes with or without pre-warning. Accepts pushbutton pulses under and over 2 seconds for varied timing control. Screw terminal connectivity for secure wiring.

IP20 protection rating for indoor use. Compact size with 83 mm height and 68 mm depth. Compliant with REACH and RoHS standards. Manufactured in Germany. Explore more Schneider Electric products in the Timer Light Switch category on EnvMart for reliable industrial and residential automation solutions.
