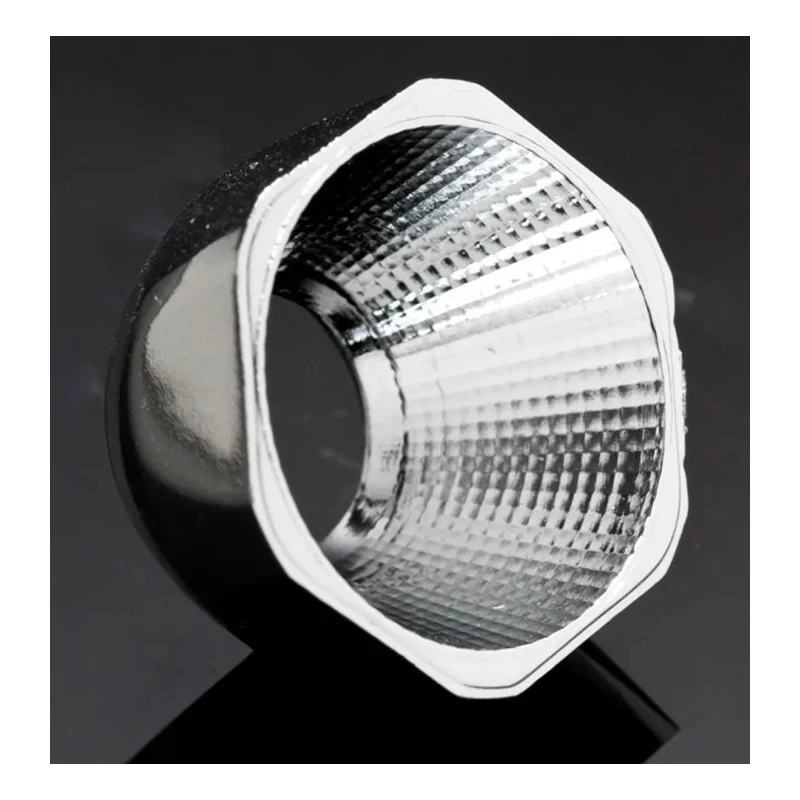

Ledil Bridget Series LED Reflector 53° Hexagonal Polycarbonate, Diameter 22.6mm Height 12.8mm C13556_BRIDGET-M-UNI
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 22.6mm |
| Brand | Ledil |
| Height | 12.8mm |
| Model | C13556_BRIDGET-M-UNI |
| Series | Bridget |
| Beam angle | 53° |
| For Use With | CXM-9 (Luminus), CLL02x/CLU024 (Citisen), XP-L HI (Cree), Mini Zenigata (GW5BM) (Sharp), CXA/B 15xx (Cree), Soleriq P6 (Osram), CLU700 (Citisen), BXRA ES Star (Bridgelux), Soleriq P9 (Osram) |
| Standards/Approvals | RoHS |
| Fixing Method | Glue |
| Reflector Material | Polycarbonate |
Key Features
- Part of the Bridget series designed for uniform light output.
- Hexagonal reflector style with diameter of 22.6 millimeters.
- Material used is aluminium-coated polycarbonate supporting high temperature operation.
- Fixing method involves adhesive glue for stable PCB mounting.
- Compatible with various LED chips including Cree, Osram, Bridgelux, Luminus, and Citisen models.
- Designed to maintain consistent beam quality and viewing angle.
- RoHS compliant and manufactured in China.
Product Description
Ledil C13556_BRIDGET-M-UNI is a high-quality LED reflector from the Bridget series featuring a 53-degree beam angle and hexagonal shape. Manufactured using aluminium-coated polycarbonate, this reflector supports high temperature operation and provides uniform round beam output.
With a diameter of 22.6mm and a height of 12.8mm, it offers a compact form factor suitable for various LED lighting applications. The reflector is designed to be glued onto the PCB, ensuring secure positioning during operation.
This reflector is compatible with multiple LED chip models such as CXM-9 (Luminus), CLLO2x/CLU024 (Citisen), XP-L HI (Cree), Mini Zenigata (GW5BM) (Sharp), CXA/B 15xx (Cree), Soleriq P6 and P9 (Osram), CLU700 (Citisen), and BXRA ES Star (Bridgelux). The viewing angle and beam uniformity are optimized for these chip types, but users are advised to verify compatibility with the latest LED data sheets.
Part of the Bridget series LED reflectors for versatile beam shaping. Hexagonal polycarbonate reflector with aluminium coating for durability and heat tolerance. Measures 22.6mm in diameter and 12.8mm in height. Fixing via adhesive glue suitable for PCB mounting.
RoHS compliant ensuring environmental safety. Compatible with a broad range of high-power LED chips. Optimized for consistent beam quality at a 53° angle. Manufactured in China under stringent quality controls.
This LED reflector is ideal for industrial, commercial, and laboratory LED lighting assemblies where beam shape and uniformity are critical. Utilized in applications such as electronic displays, architectural lighting, horticultural lighting, and specialized instrumentation.
Explore the complete range of LED lenses and reflectors at EnvMart for comprehensive lighting solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The beam angle of this model is 53 degrees, providing a uniform round beam output.
It has a diameter of 22.6mm and a height of 12.8mm, making it compact for various applications.
The reflector is constructed from aluminium-coated polycarbonate, which supports high temperature operation.
The fixing method involves adhesive glue, ensuring stable mounting during operation.
Yes, the reflector is RoHS compliant, ensuring it meets environmental safety standards.
This model is suitable for industrial, commercial, and laboratory LED lighting assemblies, including architectural and horticultural lighting.
The reflector is designed to be glued onto the PCB for secure positioning.
It is manufactured in China under stringent quality controls.
The height of the reflector is 12.8mm.
The primary function of this LED reflector is to maintain consistent beam quality and viewing angle for LED lighting applications.
