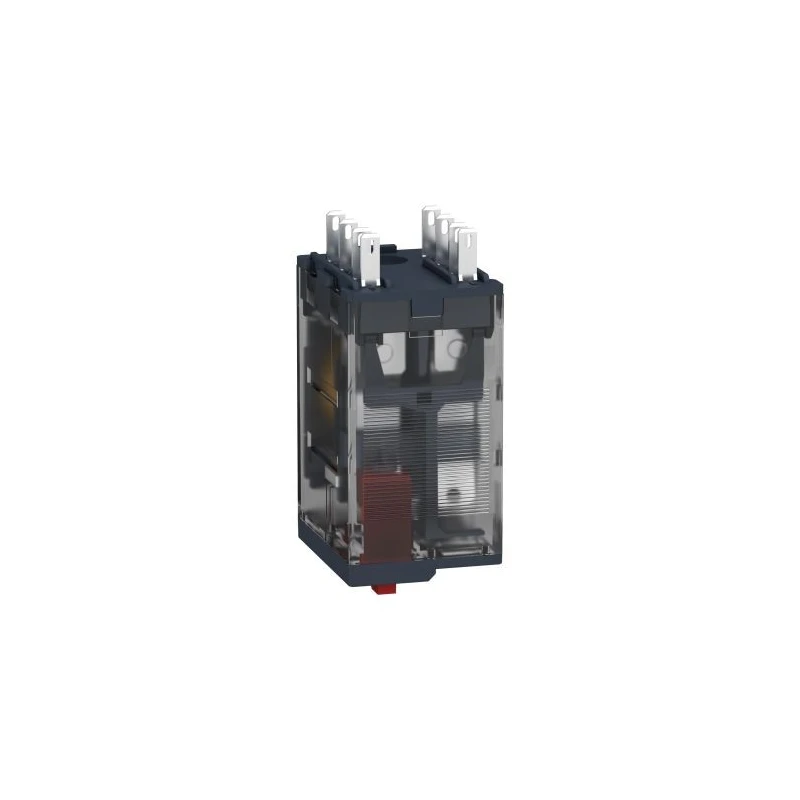

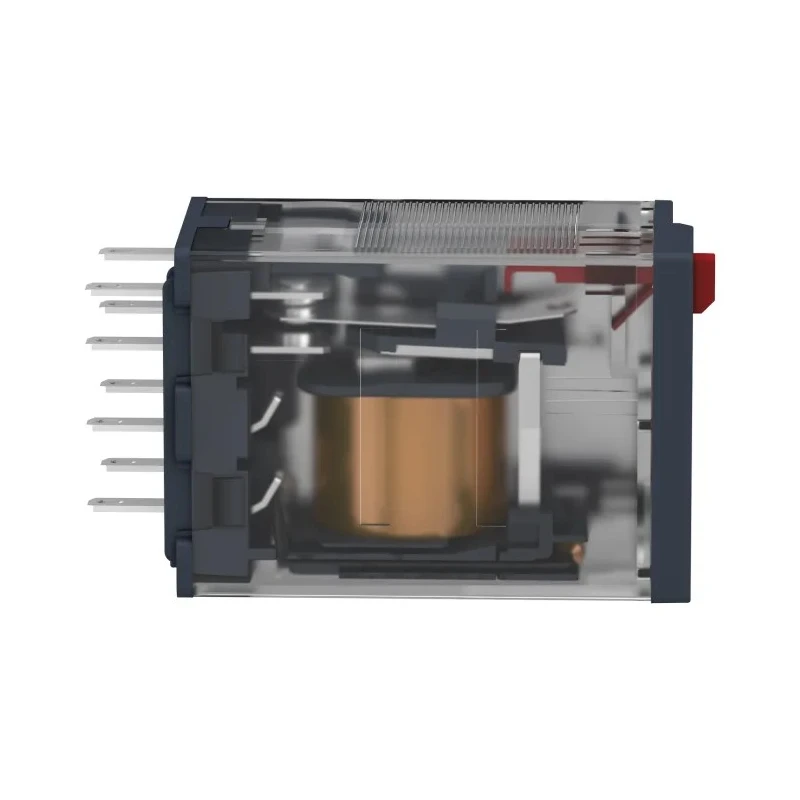

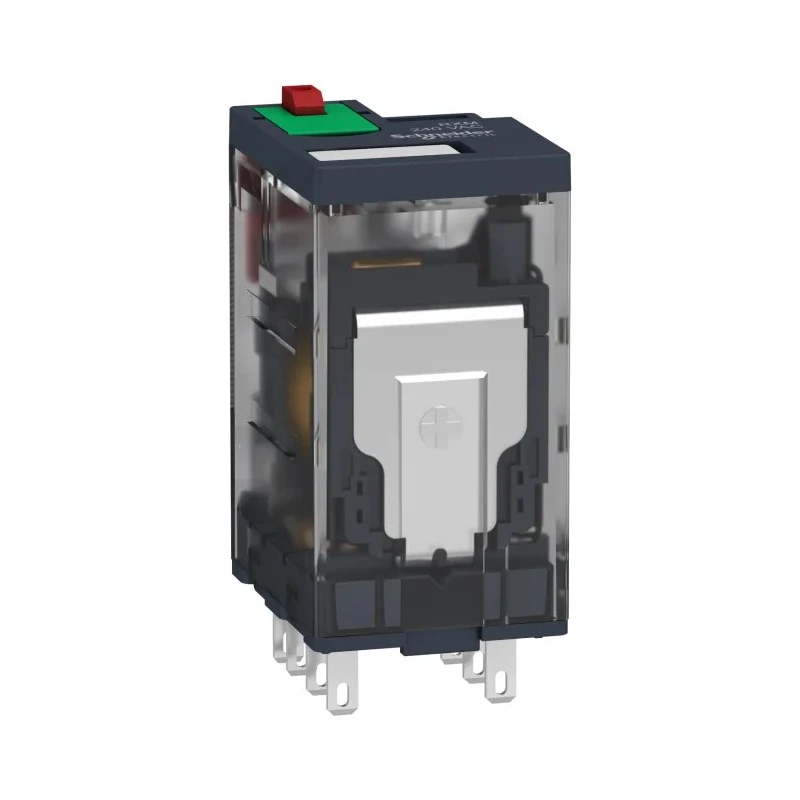

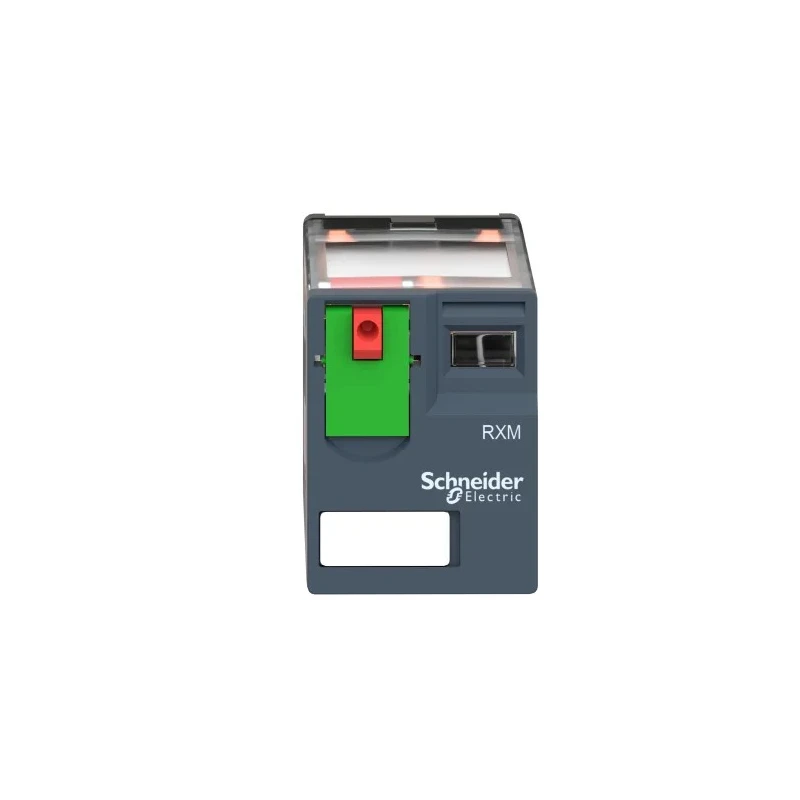

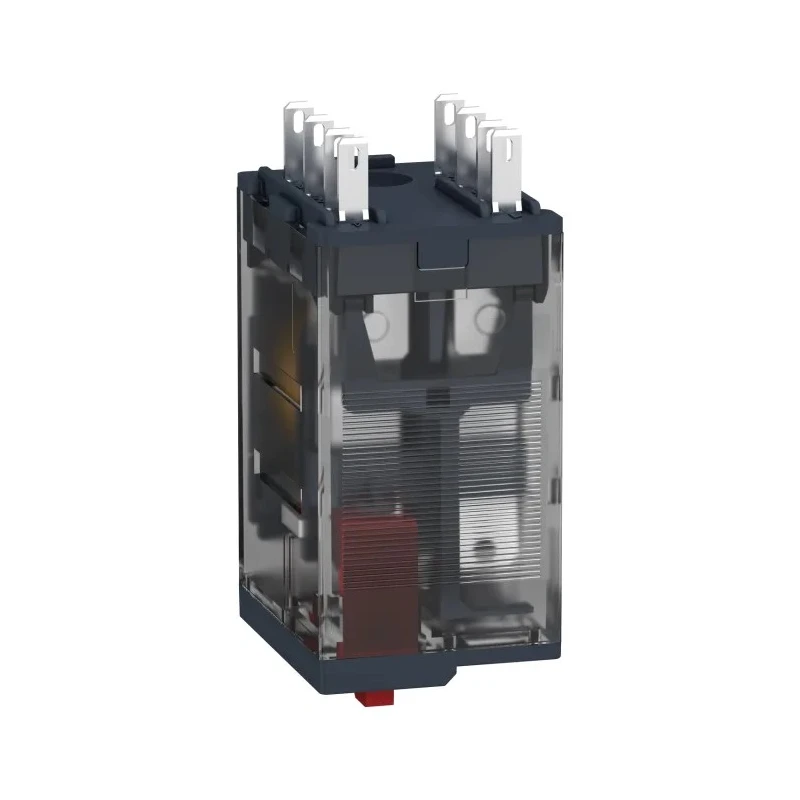

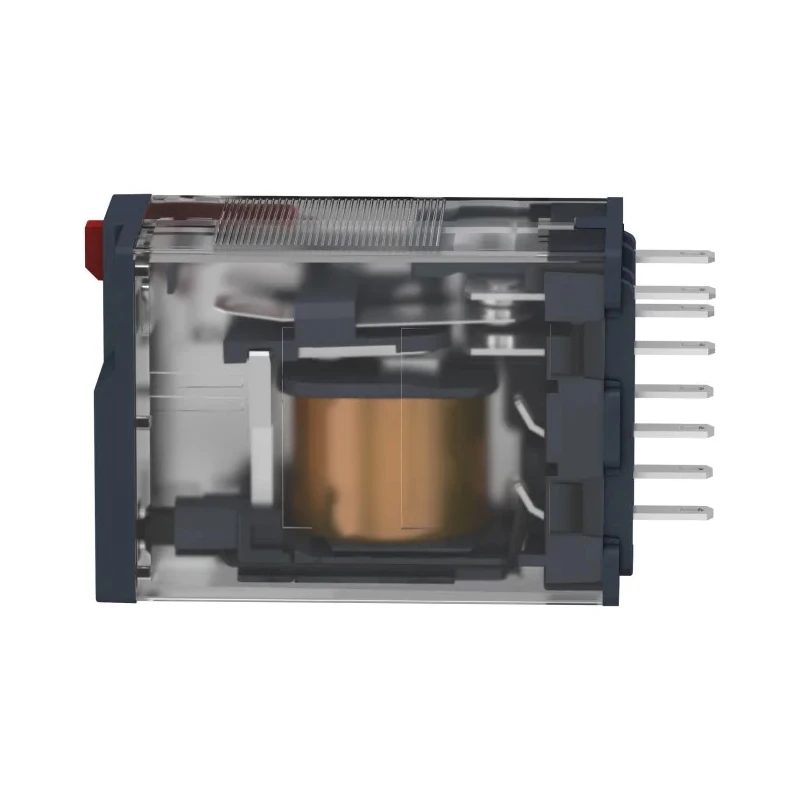

Schneider Electric Power Relay, 120V AC Coil, 8A Switching Current, 4 CO Contact Configuration RXM4AB1F7

Schneider Electric RXM4AB1F7 Power Relay is designed with a 120V AC coil and an 8A switching current capability, offering a 4 CO (Change Over) contact configuration. This relay belongs to the Harmony RXM series, known for robust performance in industrial automation settings where reliable switching is critical.

Measuring a compact 21mm in length, 47.7mm in width, and 27mm in height, the device is suitable for applications where space-saving is a priority. The plug-in terminal design facilitates quick installation and maintenance, making it ideal for automated control systems, machinery operation regulation, HVAC systems, and energy management devices.

Built with silver alloy contacts, the relay ensures durability and excellent conductivity, handling switching currents up to 8 amperes and switching voltages up to 250V AC and 28V DC. It operates reliably within a temperature range from -40°C to 55°C, making it versatile for various harsh environmental conditions.

This relay meets important regulatory and safety standards, including CSA and CE, underscoring its suitability for industrial, commercial, and manufacturing environments. The coil resistance of 3.6kΩ and coil power rating of 1.2W reflect efficient power consumption during coil energization.

The RXM4AB1F7 model is manufactured in China, representing Schneider Electric’s commitment to quality and performance. Its operational life extends to over 100,000 switching cycles, supporting long-term industrial applications.

Designed to switch currents up to 8 amperes effectively. Features a durable silver alloy contact material for reliable performance. Compact dimensions of 21mm length, 47.7mm width, and 27mm height. Operates efficiently across a wide temperature range from -40°C to 55°C.

Equipped with a plug-in terminal type for easy installation and replacement. Supports switching voltages up to 250V AC and 28V DC. Coil resistance rated at 3.6kΩ with coil power consumption of 1.2W. Complies with industry safety standards including CSA and CE certifications.

Part of the Harmony RXM series, renowned for industrial automation reliability. Manufactured in China with assured quality and durability.

This power relay is widely utilized in electrical control systems, automation setups, HVAC controllers, and energy management solutions to ensure reliable circuit switching. Its combination of compact size, robust contact material, and compliance with international standards makes it an essential component for reliable industrial and commercial operation.
