Alpha Wire Control Cable Xtra-Guard 4 Performance, 2 Cores, 0.35mm² 22 AWG, Screened, 30 m, Thermoplastic 45192 BK005

Alpha Wire 45192 BK005 Control Cable from the Xtra-Guard 4 Performance series is engineered for robust industrial performance and reliability. Featuring 2 conductor cores made of tin copper wire with a 0.35 mm² CSA (22 AWG), this cable is screened for EMI protection and jacketed in a durable black thermoplastic elastomer (TPE) material. The cable has a nominal diameter of 5.64 mm and is 30 meters long, making it well suited for medium-length control and instrumentation wiring tasks.

The cable jacket and insulation provide exceptional flexibility and resilience, functioning effectively in temperatures ranging from -50°C up to 125°C. Compared to PVC alternatives, its TPE composition is three times more flexible at extreme temperatures, offering longer service life and better mechanical resistance. The cable is flame resistant with an FT1 rating and complies with CE, CSA, and UL certifications, ensuring adherence to stringent safety standards.

Alpha Wire’s Xtra-Guard 4 cable is designed specifically for industries requiring dependable performance under challenging environmental conditions. It is widely applied in sectors such as paper manufacturing, mining operations, food and beverage processing, petrochemical plants, pipelines, and the military. It also supports power transmission in renewable energy applications like solar and wind power. Note that this cable is not recommended for continuous or high-flex applications.

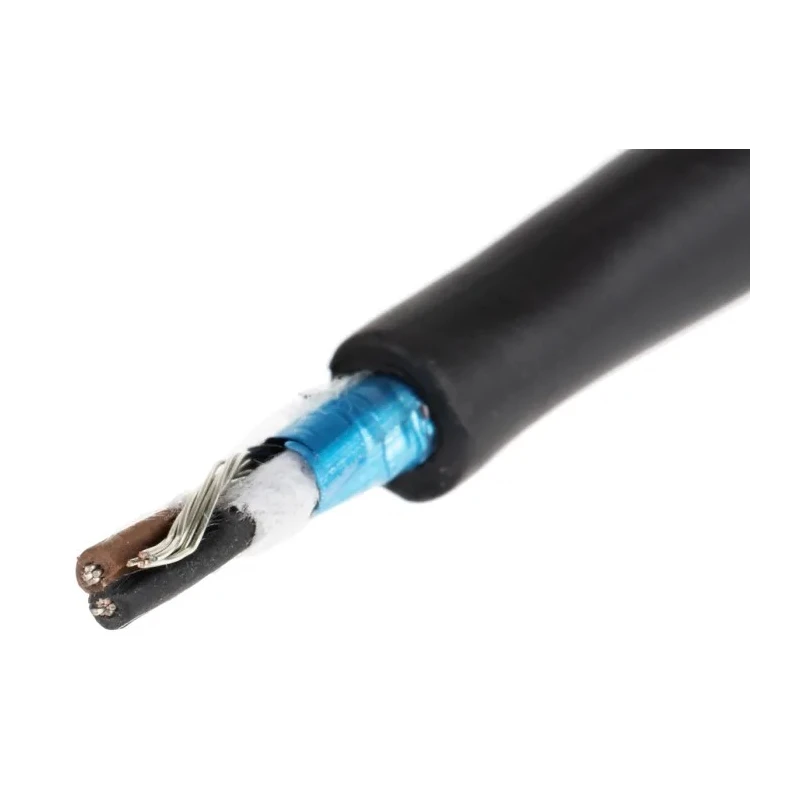

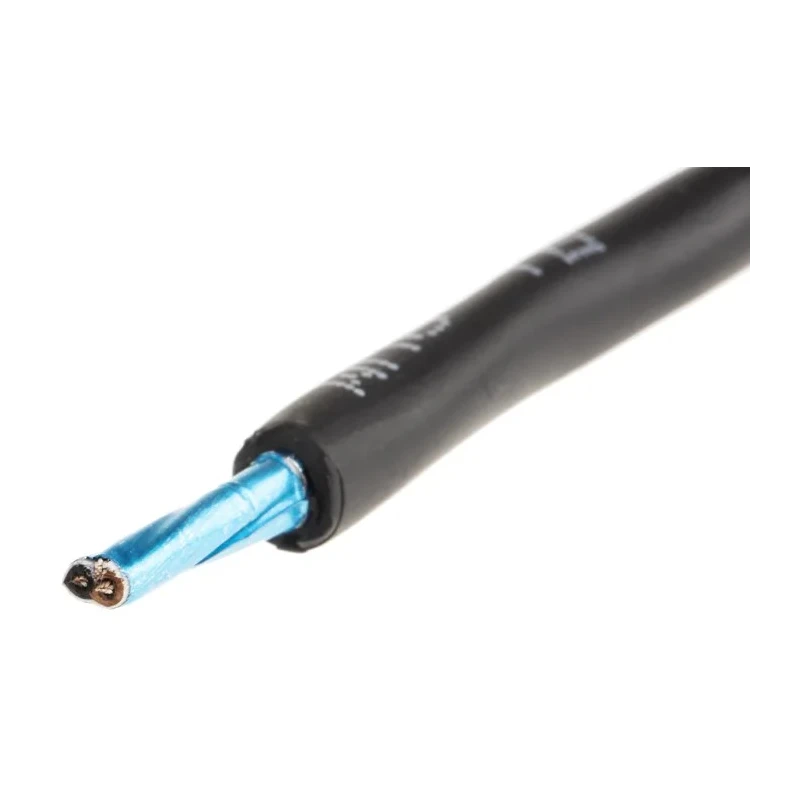

The cable features a foil shield for electromagnetic interference protection. Conductors are finely stranded (7 strands of 0.25 mm) to optimize flexibility and conductivity. The jacket thickness of 1.14 mm (0.045 inch) further enhances physical durability.

Insulation thickness is 0.41 mm (0.016 inch), ensuring electrical isolation and longevity. Installation is adaptable with recommended FIT heatshrink tubing models FIT-400 and FIT-600. The cable is Pennsylvania Bureau Deep Mining Safety approved, supporting mine-wide monitoring systems.

Its resistance to oil, water, chemicals, abrasion, and ultraviolet light ensures ruggedness in demanding environments.

Choose Alpha Wire Xtra-Guard 4 for industrial and commercial applications requiring high-performance Control Cables with extended temperature and mechanical durability. Explore other control and industrial cable products in our Electronics & Electricals > Wires & Cables section for comprehensive wiring solutions.
