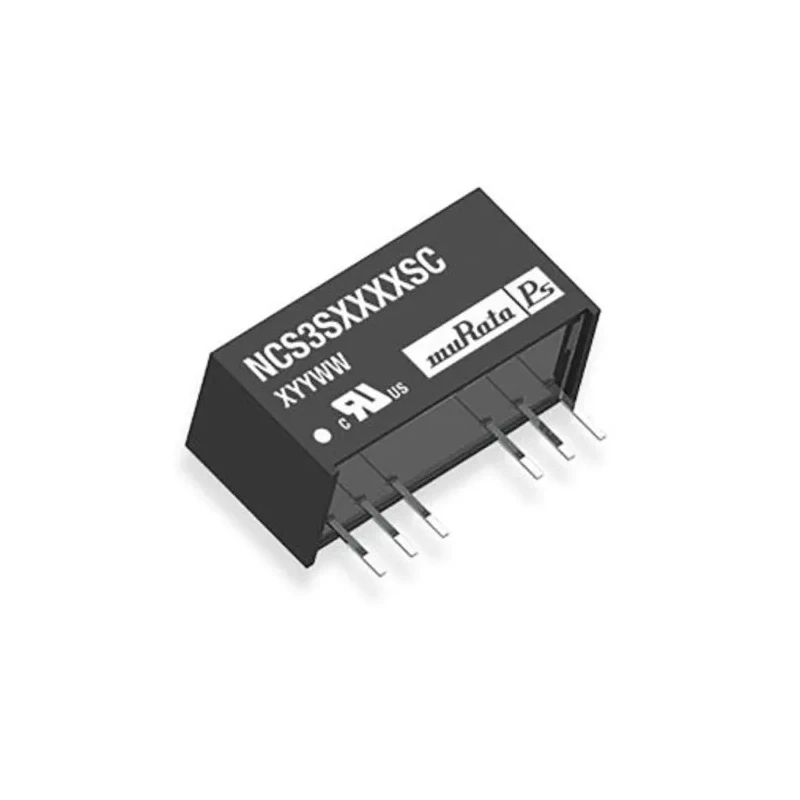

Murata Power Solutions DC/DC Converter Single Output 5V dc, 18V to 80V Input, 2W Through Hole Package NCS3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NCS3 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 80% |
| Length | 21.95mm |
| Model | NCS3 |
| Depth | 11.25mm |
| Gross Weight | 4.3g |
| Width | 9.45mm |
| Mount Type | Through Hole |
| Series | NCS3 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1117000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 80V |
| Standards/Approvals | UL, RoHS, CRE |
| Minimum Input Voltage | 18V |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 600mA |
Key Features
- Features single regulated isolated output optimized for telecommunications and battery powered systems.
- Wide input voltage range supports 9-36V and 18-75V variants for flexible deployment.
- Compact SIP form factor measures 21.95 mm length, 9.45 mm width, and 11.25 mm depth.
- Operates reliably from -40°C to 85°C ambient temperature with appropriate derating.
- Provides 1.5 kV dc isolation voltage for robust protection and noise immunity.
- Equipped with continuous short circuit protection to enhance durability.
- Ripple and noise levels are low at 75 mV peak-to-peak ensuring stable output.
- High efficiency of 80% reduces power loss and thermal stress.
Product Description
Murata Power Solutions NCS3S4805SC is a high-performance DC/DC converter providing a single 5V dc output with a power output of 2W. Designed to operate across a wide input voltage range from 18V up to 80V, this converter fits industrial and telecommunications applications that require reliable voltage conversion in a compact through hole SIP package.
The converter benefits from robust thermal performance with an operating temperature range from -40°C up to 85°C, allowing use in harsh environments. Its encapsulated design enhances heat dissipation, improving reliability and lifespan. A high isolation voltage of 1.5 kV dc ensures protection against electrical interference and system faults.
Applications for the NCS3 series include telecommunications equipment, battery powered systems, process control, and distributed power systems. The continuous short circuit protection and low ripple noise of 75 mV Pk-Pk provide industry-standard safety and signal integrity.
The compact SIP package measures 21.95 mm in length, 9.45 mm in width, and 11.25 mm in depth with a total gross weight of 4.3 grams. This form factor simplifies PCB layout in dense electronic assemblies.
The NCS3S4805SC converter achieves an efficiency of 80% and meets certifications and norms such as UL and RoHS, emphasizing quality and compliance. Single output regulated and isolated DC/DC converter. Wide operating input voltage and temperature ranges.
Continuous short circuit and noise protections included. Compact, highly reliable SIP package design. Ideal for industrial, laboratory, telecommunications, and measurement applications. Explore further DC/DC Converters and power supply components at EnvMart for comprehensive industrial and electronic parts requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 80V.
This converter provides a single output of 5V dc with a maximum output power of 2W.
The dimensions of the converter are 21.95 mm in length, 9.45 mm in width, and 11.25 mm in depth.
The converter achieves an efficiency of 80%, which helps reduce power loss and thermal stress during operation.
It has an isolation voltage of 1.5 kV dc, ensuring robust protection against electrical interference.
This unit operates reliably in an ambient temperature range from -40°C to 85°C.
Yes, it is equipped with continuous short circuit protection to enhance durability.
The ripple and noise levels are low at 75 mV peak-to-peak, ensuring stable output.
This model uses a through hole mounting type, suitable for PCB layout in dense assemblies.
It meets standards such as UL and RoHS, emphasizing quality and compliance.
This converter provides a single output, specifically designed for telecommunications and battery-powered systems.
The total gross weight of this unit is 4.3 grams.
