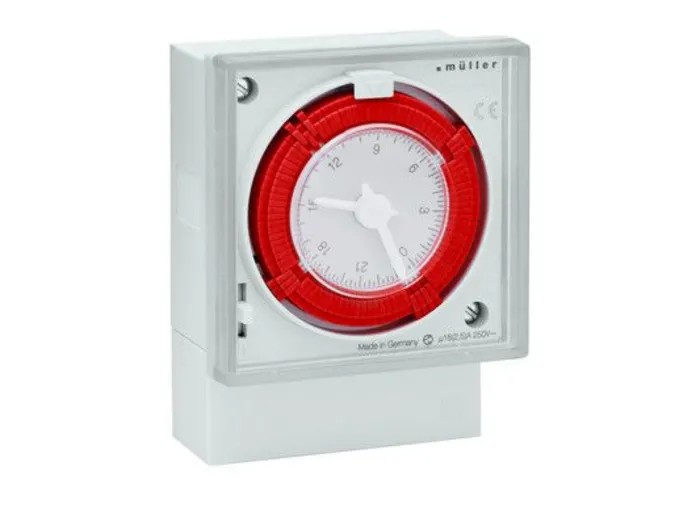

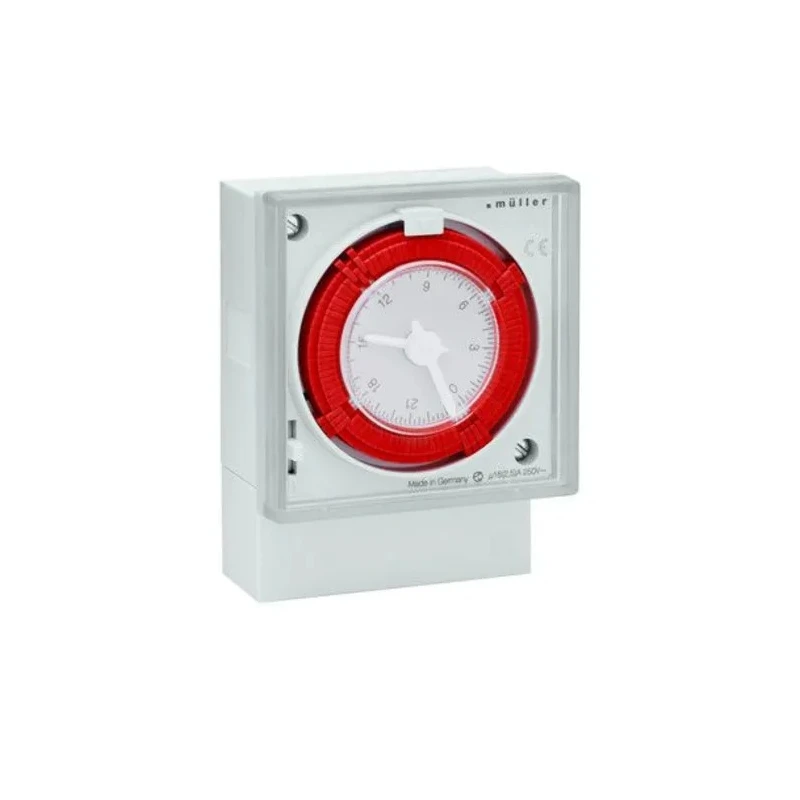

Muller Analogue DIN Rail Time Switch 230V FS 64.18 230V 50-60HZ

Muller FS 64.18 230V 50-60HZ Analogue DIN Rail Time Switch is designed for surface and switchboard panel mounting, providing precise control over electrical circuits through a 24-hour analogue time program.

This single channel time switch operates with a 15-minute segment length, measuring hours to facilitate accurate timing for daily or weekly programs. Its analogue display with close hands makes the switching program easy to read and manual override switch offers flexible control modes including Permanent OFF, Automatic, and Permanent ON.

The device is compact, measuring 72 x 72 mm with a height of 94.5 mm and depth of 48.4 mm, making it ideal for various panel installation requirements. Its robust design includes IP20 protection to prevent dust ingress during installation and operation.

Equipped with a contact configuration CO and a maximum supply voltage of 230V, it provides reliable performance for industrial and commercial automation applications. The built-in battery offers a 100-hour life to maintain operation during power outages, ensuring uninterrupted control.

The time switch complies with key industry standards including RoHS, DIN EN 60730-1, DIN EN 60730-2-7, and ISO 15693, affirming its quality and safety in process control environments.

The product features a single channel with hours as the measurement unit. Segment length is fixed at 15 minutes for accurate timing. Contact configuration is CO enhancing versatility. Maximum supply voltage is 230V suitable for common installations.

Battery life ensures up to 100 hours of power backup. Compact dimensions of 72 x 72 mm with height and depth suitable for panel mounting. Manual override allowing Permanent OFF, Automatic, or Permanent ON function. IP20 protection class offers dust protection.

Complies with RoHS, DIN EN 60730-1, DIN EN 60730-2-7, ISO 15693 standards.

This Muller Analogue DIN Rail Time Switch is ideal for use in industrial automation systems, process control panels, electrical distribution boards, and HVAC control applications. Reliable and easy to program, it enhances operational effectiveness by providing scheduled control of electrical devices.
