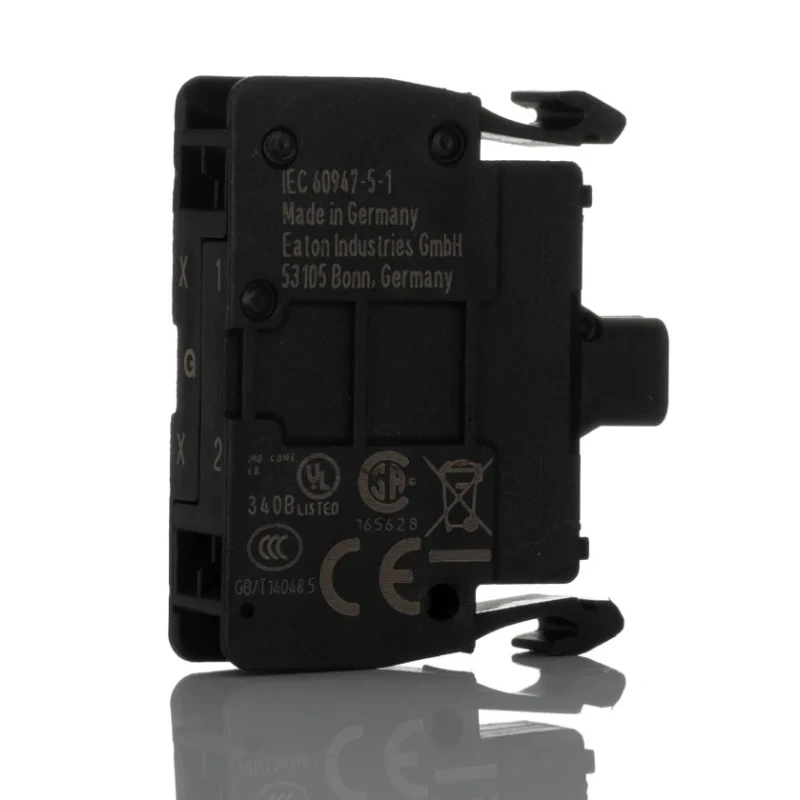

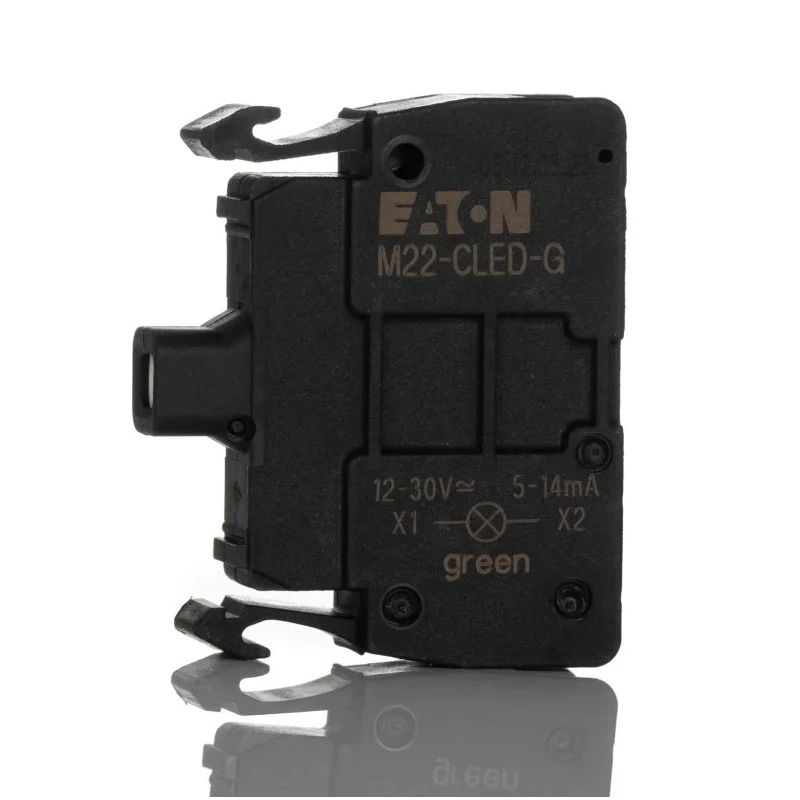

Eaton M22 Series LED Light Block 12 V AC/DC, 30 V AC/DC, Green LED Indicator 216571 M22-CLED-G

Eaton 216571 M22-CLED-G LED Light Block is part of the M22 series designed to provide efficient and reliable illuminated indication in control and automation systems. This green LED light block operates on both AC and DC voltages of 12 V and 30 V, making it highly compatible for a wide range of industrial applications including medical equipment, testing devices, domestic appliances, and electronic systems.

The light block features a robust screw terminal for secure electrical connections and does not include a body fixing collar, allowing flexible mounting options. It is built to withstand harsh environmental conditions with an operating temperature range from -25°C to +70°C.

The device delivers a low current consumption of 15 mA and offers an electrical lifespan of approximately 100,000 hours at room temperature, ensuring long-term dependability. The compact dimensions of 71 mm length, 30 mm width, and 39 mm height allow it to fit efficiently in control panels and modular assemblies.

Standards compliance includes IEC 60947-5-1, CE, CSA, and UL 508 certifications, guaranteeing safety and performance. Protection level IP20 ensures touch-proof characteristics and defends against intrusion of objects greater than 12 mm in size. The light block is also tested to withstand impulse voltages up to 6000 V AC, providing reliable operation under electrical surges.

Installation convenience is enhanced by allowing mounting in any position. It supports wiring with conductors ranging from 0.5 to 2.5 mm² cross-sectional area, making it versatile for various electrical setups.

The light block features a green LED illumination for clear status indication. It supports voltages of 12 V AC, 12 V DC, 30 V AC, and 30 V DC. Current rating is 15 mA, ensuring low power consumption. Designed with a screw terminal type for reliable electrical connections.

Operating temperature range spans from -25°C up to +70°C, suitable for harsh industrial environments. The device complies with IEC 60947-5-1, CE, CSA, UL standards for safety and performance. It is compatible with conductors of cross-section 0.5 to 2.5 mm² for versatile wiring.

The light block measures 71 mm in length, 30 mm width, and 39 mm height. Electrical lifespan is rated at 100,000 hours at +25°C. The unit is touch-proof with an IP20 rating and withstands impulse voltages up to 6000 V AC.

This Eaton M22 Series Light Block is suitable for use in industrial control panels, manufacturing machines, HVAC systems, laboratory equipment, and commercial electronics requiring reliable visual signalling. It enhances operational safety and efficiency by clearly indicating equipment status under various electrical environments.
