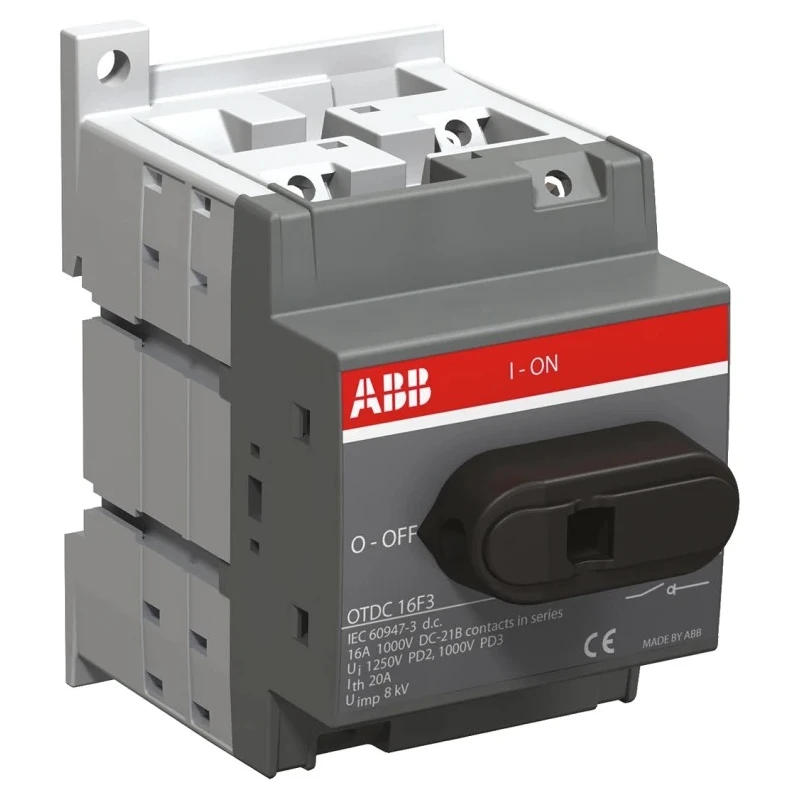

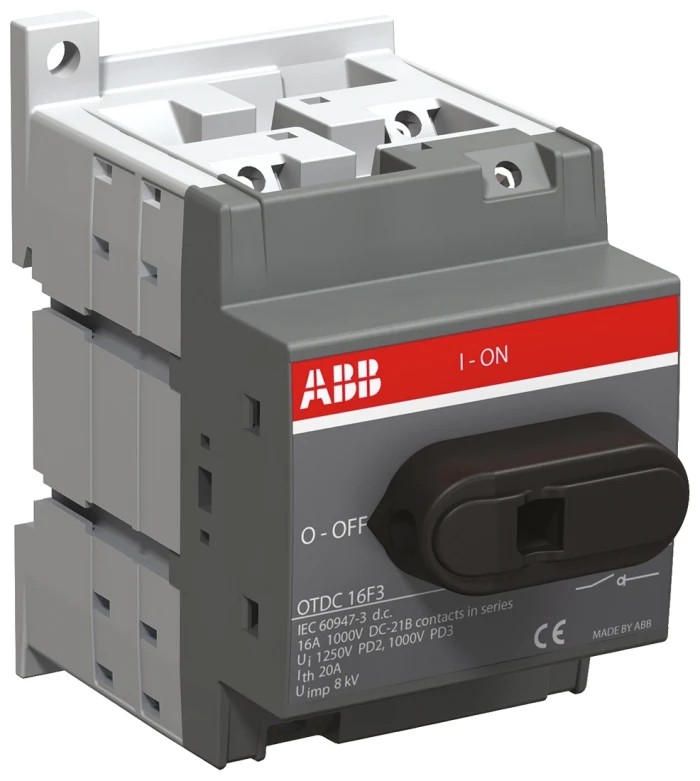

ABB 3-Pole Surface Isolator Switch IP20, 16A, 75 kW OTDC16F3 1SCA121457R1001

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole Surface Isolator Switch IP20, 16A, 75 kW OTDC16F3 1SCA121457R1001



Category Isolator Switch Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Length	52.5mm
Model	IP20
Depth	77.6mm
IP Rating	IP20
Width	89mm
Mount Type	Surface
Series	OT
Maximum Operating Temperature	60°C
Minimum Operating Temperature	0°C
Switching Current	16A
Terminal type	Screw
Handle Colour	Red
Number of Poles	3
Standards/Approvals	IEC, UL
Switching DC Voltage	1000V dc
Switching AC Voltage	415V ac
Switching Power	75kW
ABB 2-Pole Base Isolator Switch -, IP20, 16A, 75 kWBrand	ABB
ABB 3-Pole Surface Isolator Switch -, IP20, 25A, 7.5 kWBrand	ABB

Key Features

The switch features a surface mount type with a red handle for easy operation and high visibility.
Supports switching voltages up to 1000V DC and 415V AC for versatile use in solar and industrial systems.
Constructed to operate safely within temperature ranges of 0°C to 60°C for reliable performance.
Equipped with screw-type terminals suitable for fine stranded wires up to 16 mm and provides quick installation.
Complies with IEC and UL standards ensuring high safety and quality standards.
Compact dimensions of 89mm width, 52.5mm length, and 77.6mm depth allow easy panel integration.
This model does not support auxiliary contacts or padlock compatibility but offers unique safety features.
Ideal for use as the main isolator or string isolator in photovoltaic systems and motor control centers.

Product Description

ABB OTDC16F3 1SCA121457R1001 is a 3-Pole Surface Isolator Switch rated IP20, designed for safe and reliable isolation of electrical circuits in photovoltaic systems. With a 16A switching current and 75 kW switching power capability, it is suitable for isolating single strings or arrays of solar panels, battery banks, and serving as a main switch for photovoltaic applications.

This isolator switch is built with a robust red handle for quick and safe operation and is intended for surface mounting for convenient installation.

Its operational voltage supports up to 1000V DC and 415V AC, and it performs reliably within ambient temperatures from 0°C to 60°C. The switch utilizes screw terminal connections that accommodate fine stranded wires up to 16mm, ensuring secure and effective wiring.

The compact dimensions make it suitable for integration into motor control centers, switchboards, and various machines. The product complies with IEC and UL standards, ensuring adherence to international safety and quality requirements.

Although the switch does not have auxiliary contacts or padlock compatibility, it provides unique safety features that enhance operational security. Its symmetrical design allows independent polarity connections, enhancing installation flexibility.

ABB OTDC series switch disconnectors are specifically engineered for photovoltaic applications but are versatile for use across construction, industrial automation, HVAC systems, and manufacturing environments.

The switch offers compact size and simple, quick installation. It ensures safe and reliable isolation in electrical circuits. Designed to handle switching power up to 75 kW and operating current of 16A. Complies with IEC and UL standards ensuring global safety and quality.

Ideal for photovoltaic systems, motor control centers, and machine main switching. For more reliable and efficient electrical isolation solutions, explore the ABB range of Isolator Switches and related electrical components on EnvMart.
