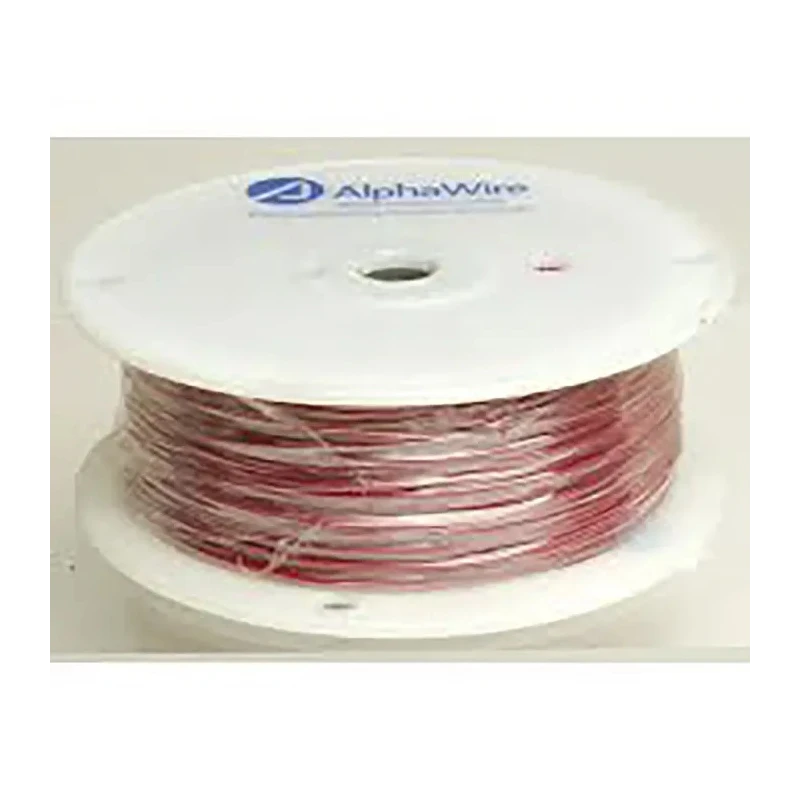

RS PRO Ecogen Ecowire Plus Series Red 0.08 mm² Hook Up Wire 28 AWG 7/0.12 mm Core Strands 305 m 6820 RD001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.08mm² |
| Model | 6820 RD001 |
| Cable Length | 305m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 0.79mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Cable Type | Single Core |
| Wire Diameter | 0.031 Inch (0.79 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 28 AWG (0.09mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Red |
| American Wire Gauge | 28AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.12mm |
| Size of Strands | 0.12mm |
| Stranding | 7/36 (7 x 0.12) |
Key Features
- Constructed with stranded bare copper conductors for excellent conductivity.
- Insulated with modified polyphenylene ether (mPPE) for superior dielectric strength and reduced wall thickness.
- Rated for voltage up to 300 V and temperature range from -40°C to +110°C.
- The wire is halogen-free, RoHS and Reach compliant, and environmentally friendly with no heavy metals.
- Ideal for use in solar power, transportation, wind power, industrial and medical equipment.
- The red jacket improves visibility in complex wiring environments.
- EcoWire Plus insulation provides high resistance to oils, solvents, fuels and hazardous fluids.
- The wire length of 305 meters supports large-scale electrical and automation projects.
Product Description
Alpha Wire 6820 RD001 Ecogen Ecowire Plus Series Hook Up Wire features 0.08 mm² cross-sectional area with 28 AWG standard and 7/0.12 mm core strands, delivering reliable electrical performance for industrial and commercial wiring needs.
The wire is insulated with modified polyphenylene ether (mPPE), which is lighter, tougher, and offers superior dielectric strength compared to traditional PVC insulation. This material allows thinner insulation walls, reducing bulk without compromising safety or durability.
Designed to operate within a temperature range of -40°C to +110°C and a maximum voltage of 300 V, this hook-up wire is suitable for demanding factory environments requiring fluid resistance and enhanced durability.
The stranded bare copper conductors ensure excellent electrical connectivity, while the red jacket color aids in easy identification during complex wiring and installation processes.
EcoWire Plus insulation is 100% recyclable, contains no halogens or heavy metals, and meets RoHS, REACH, CE, and ISO 6722 standards, making it an environmentally responsible choice for contemporary electrical installations.
Applications include solar power systems, transportation wiring, wind power installations, industrial machinery, and medical devices, where safety, reliability, and environmental compliance are crucial.
Stranded bare copper conductors for superior conductivity. Modified polyphenylene ether insulation offers thin wall and high dielectric strength. Temperature range from -40°C to +110°C supports varied industrial conditions.
Rated for 300 V operation ensuring safety and performance. Red jacket color enhances visibility during wiring. Compliant with CE, ISO 6722, RoHS, and Reach regulations. Eco-friendly and recyclable insulation material reduces environmental impact.
Suitable for solar, transportation, wind power, industrial, and medical applications.
Choose Alpha Wire Ecogen Ecowire Plus for reliable, high-performance hook-up wire that meets stringent industrial standards. Explore the Electronics & Electricals category at EnvMart for compatible cables and wiring accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 300 V.
This hook-up wire operates safely within a temperature range of -40°C to +110°C.
The cross-sectional area of this wire is 0.08 mm².
The conductors are made of stranded bare copper, which provides excellent conductivity.
It is insulated with modified polyphenylene ether (mPPE), which offers superior dielectric strength and reduced wall thickness.
The total length of this hook-up wire is 305 meters.
The outside diameter of this model is 0.79 mm.
This wire is compliant with CE, ISO 6722, REACH, and RoHS standards.
It is suitable for applications in solar power systems, transportation wiring, wind power installations, industrial machinery, and medical devices.
The insulation thickness of this wire is 0.008 inches (0.20 mm).
The wire consists of 7 strands, each measuring 0.12 mm.
The jacket of this hook-up wire is red, which improves visibility during installation.
