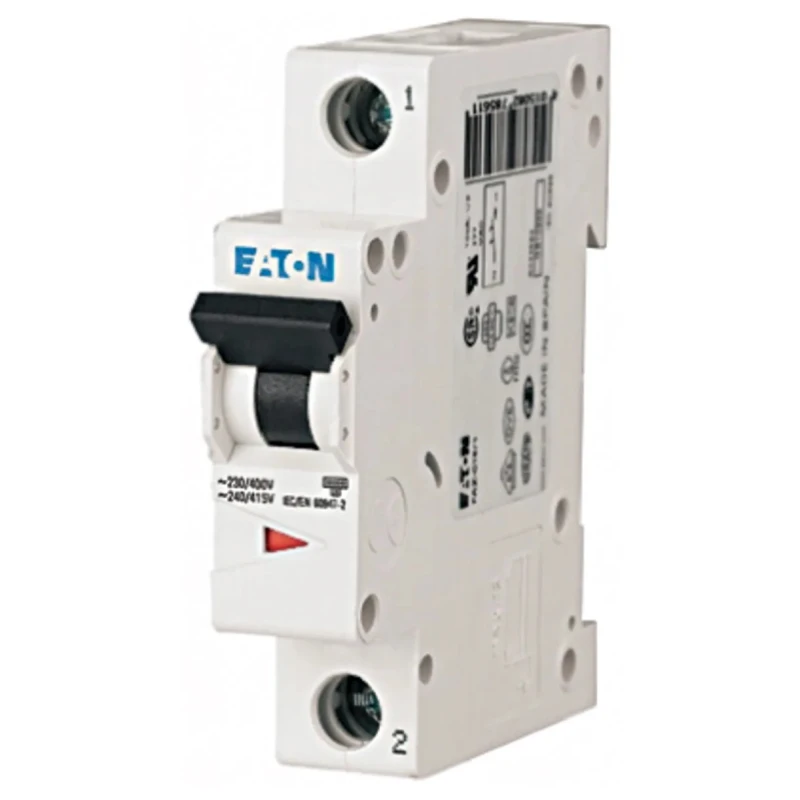

Eaton xEffect Miniature Circuit Breaker 1-Pole 63A Type C 400V AC 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 63A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Features thermal-magnetic overcurrent protection ensuring fast short-circuit interruption.
- Suitable for electrical distribution boards and control circuits.
- Provides protection against overload and short-circuit damage.
- Includes trip-free mechanism preventing defeat by holding switch in ON position.
- Designed with finger-proof safety and clear contact position indication via toggle switch.
- Compact module width of 17.5 mm per pole allows space-saving panel installation.
- Mountable easily on DIN rail with 3-position rail design.
- Available with rated currents from 0.5A up to 63A and breaking capacity options of 6kA or 10kA.
Product Description
Eaton FAZ6 miniature circuit breaker 1-pole model FAZ6 is rated at 63A current and Type C tripping characteristic, operating at 400V AC with a breaking capacity of 6 kA. This MCB is part of Eaton's xEffect series, offering reliable electrical protection for industrial, commercial, and residential installations.
The breaker uses thermal-magnetic tripping mechanism to provide effective overload and short-circuit protection, ensuring the safety and longevity of connected electrical equipment. Its compact design with 17.5 mm module width per pole facilitates easy installation on standard DIN rails in electrical distribution boards.
Safety features include a trip-free mechanism that prevents the switch from being held in the ON position, plus finger-proof construction to enhance user safety. The toggle switch provides a clear visual indication of contact status.
The FAZ6 series supports a wide range of rated currents from 0.5A to 63A with breaking capacities of 6 kA or 10 kA depending on the model type. The device supports current ratings suitable for various circuit protection requirements and complies with IEC 60947-2 standards.
Installation is simplified by a 3-position DIN rail mounting system and clear terminal connection guides. Eaton's xEffect series also includes complementary accessories such as interlocks, busbars, auxiliary contacts, and tripping modules to enhance electrical system functionality.
Thermal-magnetic overcurrent protection for fast, reliable safety. Compact 17.5 mm per pole width saves panel space. Trip-free mechanism and finger-proof design ensure user safety. Suitable for use in industrial, manufacturing, and residential electrical systems.
Easy DIN rail mounting with 3-position rail mechanism. Complies with IEC 60947-2 and related standards. 6 kA breaking capacity supports protection against short circuit faults. Clear toggle switch position indication for operational status.
This Eaton FAZ6 Miniature Circuit Breaker delivers reliable circuit protection to enhance safety and durability of your electrical distribution system. Explore further Eaton xEffect MCB products and accessories on EnvMart to fulfill your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton FAZ6 Miniature Circuit Breaker has a current rating of 63A.
This model has a breaking capacity of 6 kA.
The rated AC voltage for the Eaton FAZ6 is 400V AC.
The FAZ6 uses a thermal-magnetic tripping mechanism for overload and short-circuit protection.
The width of this circuit breaker is 17.5 mm per pole.
This model is designed for DIN rail mounting.
The FAZ6 has Type C tripping characteristics, which trip instantaneously when the flow-through current is 5 to 10 times the rated current.
It includes a trip-free mechanism to prevent the switch from being held in the ON position and a finger-proof design for enhanced user safety.
The depth of this circuit breaker is 62 mm.
The Eaton FAZ6 has an IP20 rating, indicating it is protected against solid objects greater than 12.5 mm but not against water.
This miniature circuit breaker is suitable for use in industrial, commercial, and residential electrical systems.
The Eaton FAZ6 Miniature Circuit Breaker is manufactured in India.
