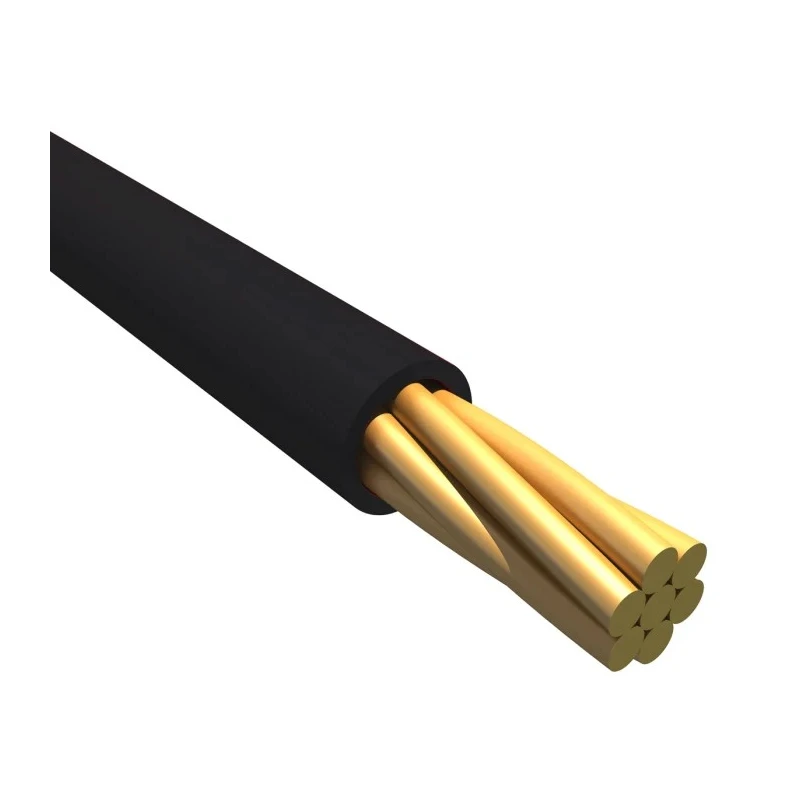

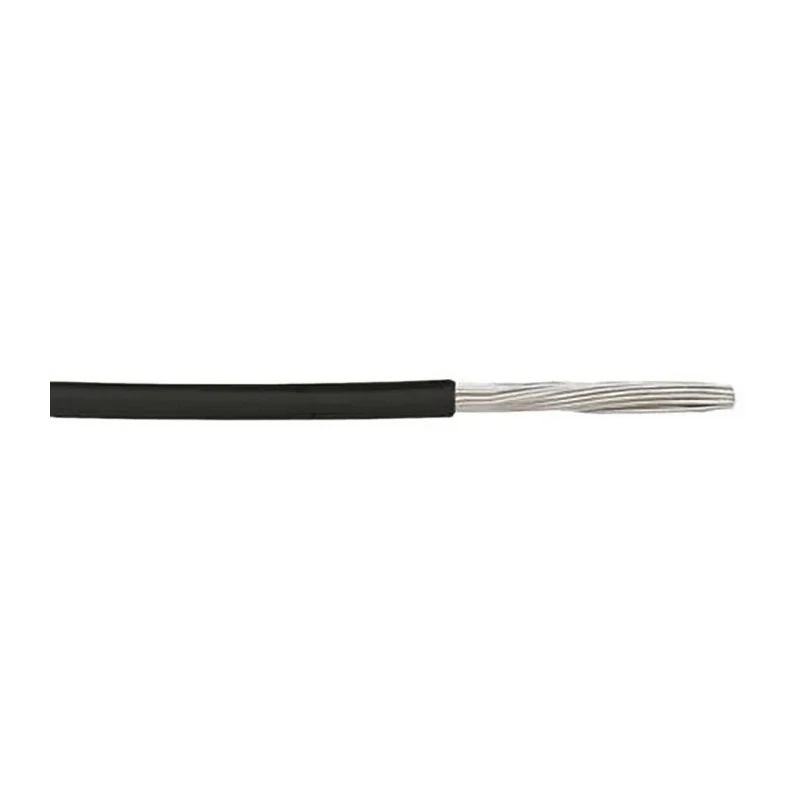

Alpha Wire EcoWire Plus 26 AWG 0.13 mm² Black Hook Up Wire 7/0.16 mm Strands 305 m 300V 110°C 6821 BK001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.13mm² |
| Model | 6821 BK001 |
| Cable Length | 305m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 0.89mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.035 Inch (0.89 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 26 AWG (0.14 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 26AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.16mm |
| Size of Strands | 0.16mm |
| Stranding | 7/34 (7 x 0.16) |
Key Features
- Consists of 7 strands of 0.16 mm diameter copper wires for flexibility.
- Supports operating voltages up to 300 volts with excellent dielectric strength.
- Insulation thickness is 0.20 mm, providing superior toughness and fluid resistance.
- Rated for temperature range from -40°C to 110°C, suitable for demanding environments.
- Compliant with CE, ISO 6722, RoHS, and REACH standards for safety and environmental requirements.
- MPPE insulation enables lighter weight, reduced wall thickness, and easy recyclability.
- Ideal for industrial, medical, transportation, solar, and wind power applications.
- Contains no halogens or heavy metals, meeting WEEE requirements.
Product Description
Alpha Wire 6821 BK001 EcoWire Plus Series Black Hook Up Wire is a premium-quality 26 AWG (0.13 mm²) single core wire insulated with modified polyphenylene ether (MPPE). The wire is designed for robust industrial and automation applications requiring a durable, flame retardant cable that is also environmentally conscious.
This hook-up wire features 7 strands of 0.16 mm diameter high-quality copper conductors, providing outstanding flexibility and conductivity. The black MPPE jacket offers excellent chemical and fluid resistance while maintaining mechanical toughness.
EcoWire Plus wire operates reliably in temperature ranges from -40°C to +110°C and supports a voltage rating up to 300 V. Its flame retardant and low smoke halogen-free properties enhance safety in wiring systems.

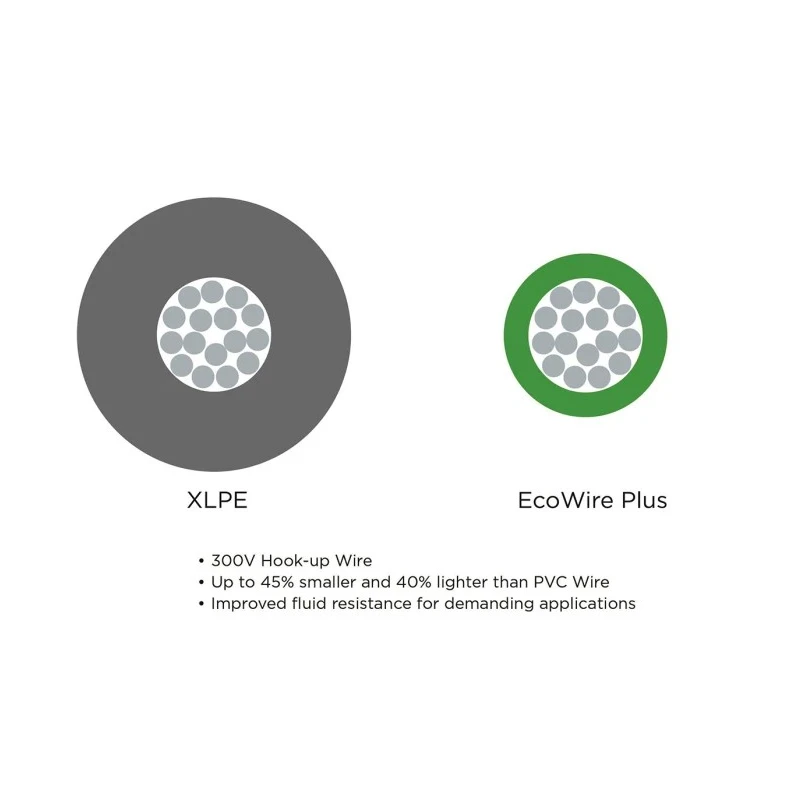

The product meets stringent international standards such as CE, ISO 6722 thin and ultra-thin wall, RoHS, and REACH compliance, confirming its suitability for global industrial use. The mPPE insulation enables a thinner wall construction compared to PVC alternatives, reducing cable weight and improving handling.

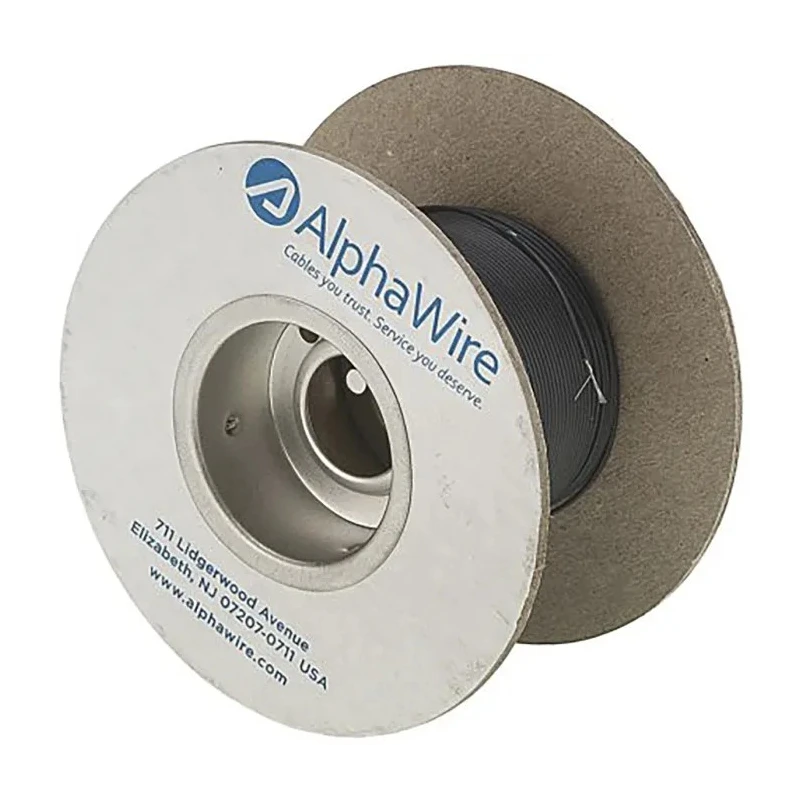

This 305-meter reel is ideal for applications including solar power systems, transportation equipment, medical devices, wind power installations, and demanding factory environments where fluid resistance and environmental compliance are essential.
7 strands x 0.16 mm copper conductor for excellent flexibility. MPPE insulation provides superior dielectric strength and reduced weight. Rated for 300 V operation and thermal range of -40°C to 110°C. Flame retardant, low smoke halogen free for enhanced safety.
Complies with CE, ISO 6722, RoHS, and REACH standards. Contains no hazardous materials; fully recyclable design. Suitable for industrial, laboratory, automation, and medical uses.
Alpha Wire EcoWire Plus 6821 BK001 is a reliable choice for efficient and safe wiring solutions in industrial, laboratory, HVAC, and manufacturing sectors. Explore more cables and wires in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of up to 300V.
The wire is rated for a temperature range from -40°C to +110°C.
This model consists of 7 strands of 0.16 mm diameter copper conductors.
The insulation thickness is 0.20 mm (0.008 inches).
It features modified polyphenylene ether (MPPE) insulation, which provides excellent chemical and fluid resistance.
The outside diameter of the wire is 0.89 mm.
It complies with CE, ISO 6722, RoHS, and REACH standards.
The wire comes in a reel length of 305 meters.
The conductor size is 26 AWG (0.13 mm²).
It is ideal for industrial, medical, transportation, solar, and wind power applications.
The wire is flame retardant and low smoke halogen-free, enhancing safety in wiring systems.
The core stranding consists of 7 strands of 0.16 mm each, providing flexibility.
