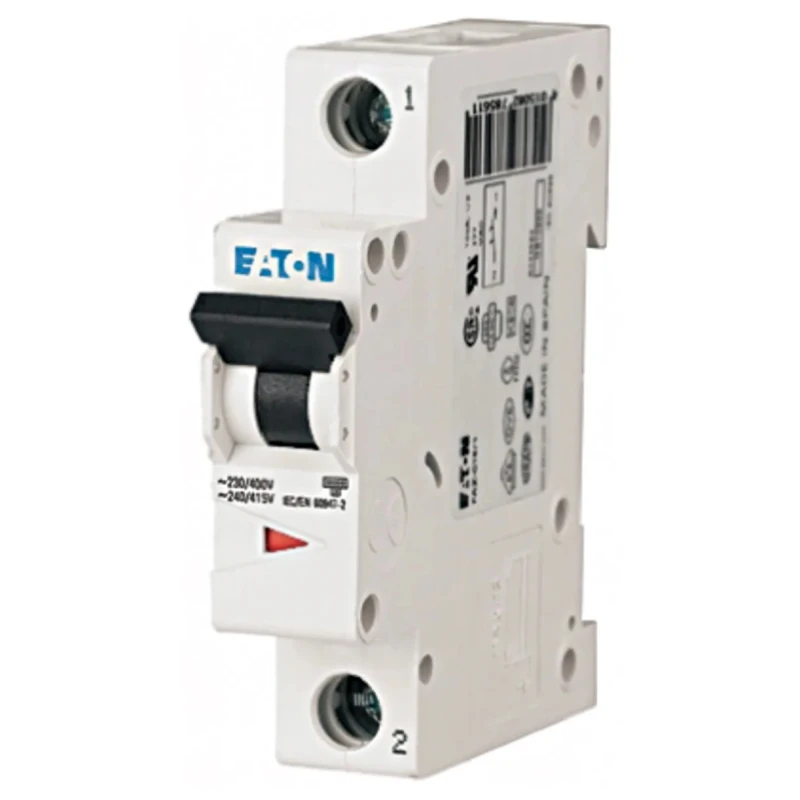

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 10A, Type D, 400V AC, 6 kA Breaking Capacity 168062 FAZ6-D10/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 168062 FAZ6-D10/1 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | xEffect |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type D |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Single pole miniature circuit breaker rated for 10 amperes.
- Type D tripping characteristic for selective protection.
- Suitable for a rated AC voltage of 400 volts.
- Breaking capacity of 6 kiloamperes ensures reliable fault interruption.
- Mounts easily on DIN rail for secure installation.
- Screw terminal type ensures firm conductor connections.
- Compact width of 17.5 millimeters allows space-efficient setups.
- Depth of 62 millimeters for standard panel fitting.
Product Description
Eaton 168062 FAZ6-D10/1 Miniature Circuit Breaker is a 1-pole device with a current rating of 10 amperes, designed to provide circuit protection in electrical installations up to 400V AC. With a tripping characteristic of Type D, it offers selective breaking for specialized applications where instantaneous protection is required. The breaker has a breaking capacity of 6 kA, enabling it to safely interrupt fault currents and protect downstream equipment.
The device is part of Eaton's xEffect series, a reliable and updated range certified to IEC and EN 60898 standards. The breaker mounts easily on a DIN rail and features screw terminals for secure wiring connections. Its compact dimensions of 17.5 mm width and 62 mm depth facilitate efficient panel designs while maintaining accessibility.
The instantaneous break time enables quick disconnection during fault conditions, which enhances safety. The toggle switch reset actuator is designed for ease of operation and durability. The unit has an IP20 rating, providing basic protection against accidental contact with live parts but requiring enclosure protection against moisture.
This Miniature Circuit Breaker is widely used in industrial, commercial, and residential electrical distribution systems. It is suitable for protecting circuits with inductive and resistive loads, preventing overloads and short circuits.
Single pole, 10A current rating. Type D tripping for specialized protection. Rated 400V AC voltage. 6 kA breaking capacity for fault protection. DIN rail mounting. Screw terminal connection. Compact 17.5mm width. Depth of 62mm.
Instantaneous break time. Toggle switch reset actuator. Complies with EN 60898, IEC standards. IP20 protection rating.
Compatible for use in electrical automation, manufacturing facilities, commercial power distribution, and residential circuit panels. Eaton's xEffect breakers deliver dependable performance and safety compliance.
Explore the full range of circuit protection solutions on EnvMart for industrial and electrical professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10 amperes.
It has a breaking capacity of 6 kiloamperes (kA), allowing it to safely interrupt fault currents.
It features a Type D tripping characteristic, which is designed for selective protection in specialized applications.
The breaker is rated for an AC voltage of 400 volts.
It mounts easily on a DIN rail, ensuring secure installation.
The breaker has a compact width of 17.5 millimeters and a depth of 62 millimeters.
It features screw terminals for secure wiring connections.
This model has an IP20 rating, providing basic protection against accidental contact with live parts.
It complies with EN 60898 and IEC standards, ensuring safety and performance compliance.
It is equipped with a toggle switch reset actuator for ease of operation.
This unit is suitable for use in industrial, commercial, and residential electrical distribution systems, protecting circuits with inductive and resistive loads.
It has an instantaneous break time, allowing for quick disconnection during fault conditions.
