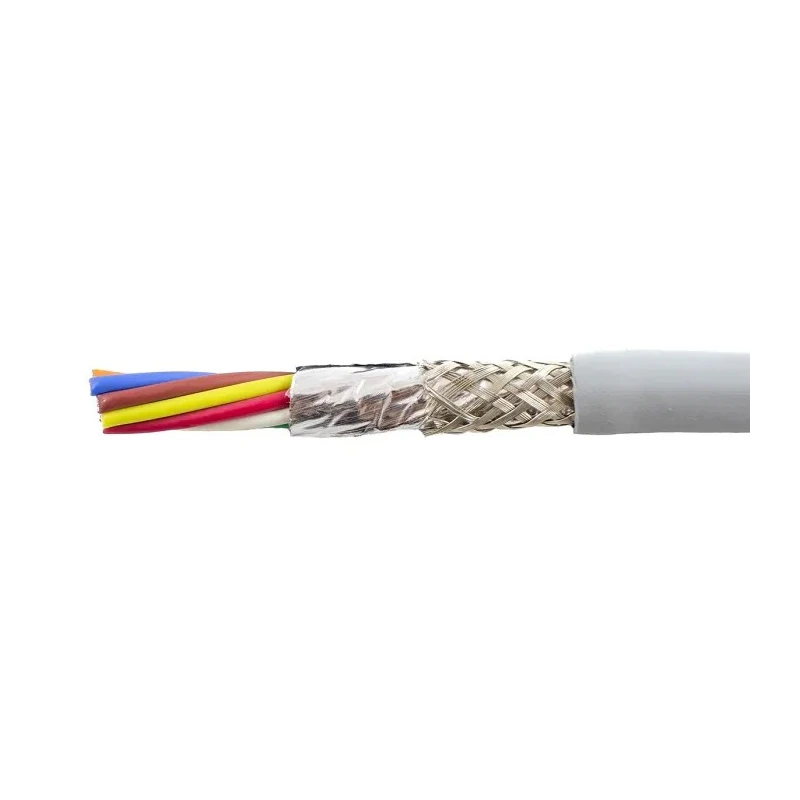

Alpha Wire Ecogen Ecocable Mini Control Cable 8 Cores 0.09mm² 28 AWG Screened 300V 30m 78308 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78308 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.19mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.165 inch (4.19 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CE, CSA |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.079mm |
| Size of Strands | 0.079mm |
| Cable CSA | 0.09mm² |
| Conductors | 8, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- The cable has a 30-meter length with a grey modified polyphenylene ether jacket.
- It features a voltage rating of 300V and can operate in temperatures ranging from -40°C to +80°C.
- Construction includes a stranded conductor type with 19 strands per core for enhanced flexibility.
- The cable has a nominal outside diameter of 4.19 mm and incorporates a Supra-Shield® foil plus braid for excellent EMI protection.
- Complies with UL, CE, and CSA standards and is halogen free for safety.
- The cable is fully recyclable, lightweight, and designed to minimize outgassing.
- Suitable for communication, telecommunication, automation, and industrial machine safety applications.
Product Description
Alpha Wire 78308 SL005 Ecogen Ecocable Mini Control Cable is a premium screened control cable featuring 8 cores of stranded tin copper wire with a conductor cross-section of 0.09mm² (28 AWG). It is designed with a modified polyphenylene ether (mPPE) jacket and insulation that provides outstanding dielectric properties, is halogen free, and offers excellent temperature resistance from -40°C to +80°C.
The cable's nominal outside diameter is 4.19 mm with a jacket thickness of 0.38 mm and insulation thickness of 0.18 mm, making it smaller and lighter than comparable PVC cables. The Supra-Shield foil plus braid shielding combines triple-layer aluminium/polyester/aluminium foil with tinned copper braid, ensuring superior electromagnetic interference (EMI) performance for sensitive industrial and communication equipment.
This control cable is fully recyclable with a specific gravity of 1.03 and low outgassing characteristics, contributing to environmentally conscious industrial practices. It supports a voltage rating of 300V which makes it suitable for diverse automation and electrical power control systems. The stranded conductor design enhances mechanical flexibility for installation in complex machinery or confined spaces.
Alpha Wire Ecogen Ecocable Mini is compliant with recognized UL, CE, and CSA standards ensuring high quality and safety benchmarks. It does not have hazardous area certification but is widely used in industrial automation, electronic circuits, telecommunication, studios, and machinery protection under NFPA 79 compliance.
The 8 individual conductors are color-coded black, brown, red, orange, yellow, green, blue, and violet for easy identification during wiring tasks. This cable effectively aids in clean and interference-free data transmission over extended distances.
The cable length is 30 meters, ideal for various industrial control applications. Tinned copper conductors provide corrosion resistance enhancing cable longevity. The mPPE jacket provides excellent dielectric properties reducing cable diameter and weight.
High mechanical flexibility due to stranded conductor construction (19 strands per core). Screened with Supra-Shield® foil plus braid to reduce EMI and signal noise. Voltage rating of 300V suitable for a broad range of industrial control and automation tasks.
Halogen free and fully recyclable, contributing to safer and environmentally friendly installations. Explore our Electronics & Electricals and Wires & Cables categories on EnvMart for more Control Cable solutions from leading brands like Alpha Wire.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 300V, making it suitable for various automation and electrical power control systems.
This control cable can operate at temperatures up to 80°C.
The cable features 8 cores, which are color-coded for easy identification during wiring tasks.
The cable is constructed with tin copper wire for the conductors and a modified polyphenylene ether (mPPE) jacket.
The nominal outside diameter of this control cable is 4.19 mm.
It incorporates Supra-Shield® foil plus braid shielding for excellent electromagnetic interference (EMI) protection.
Yes, the cable is halogen-free, contributing to safer installations and reducing harmful emissions.
The jacket thickness is 0.38 mm, providing a lightweight and compact design.
The cable can operate at temperatures as low as -40°C.
It complies with UL, CE, and CSA standards, ensuring safety and quality benchmarks.
The stranded conductor design, featuring 19 strands per core, enhances mechanical flexibility for installation in confined spaces.
The cable has a length of 30 meters, suitable for various industrial control applications.
