Alpha Wire Ecogen Ecocable Mini Screened Control Cable 8 Cores 0.38mm² 22 AWG 300V Grey Modified Polyphenylene 78138 SL005
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78138 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.85mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.191 inch (4.85 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.16mm |
| Size of Strands | 0.16mm |
| Cable CSA | 0.38mm² |
| Conductors | 8, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/34 |
Key Features
- The cable features tinned copper stranded conductors ensuring excellent conductivity and corrosion resistance.
- It has a screened foil shield to minimize electromagnetic interference for clean signal transmission.
- Operates reliably over a temperature range from -40°C to +80°C suited for industrial environments.
- The compact design with a 4.85mm outside diameter makes it lightweight and space-saving.
- Jacket and insulation are made from halogen-free, recyclable modified polyphenylene ether material.
- Complies with CE, CSA, and UL standards ensuring quality and safety assurance.
- Available in 30 meter length for medium distance wiring applications.
- Provides halogen-free flame resistance, making it safe for industrial and automation uses.
Product Description

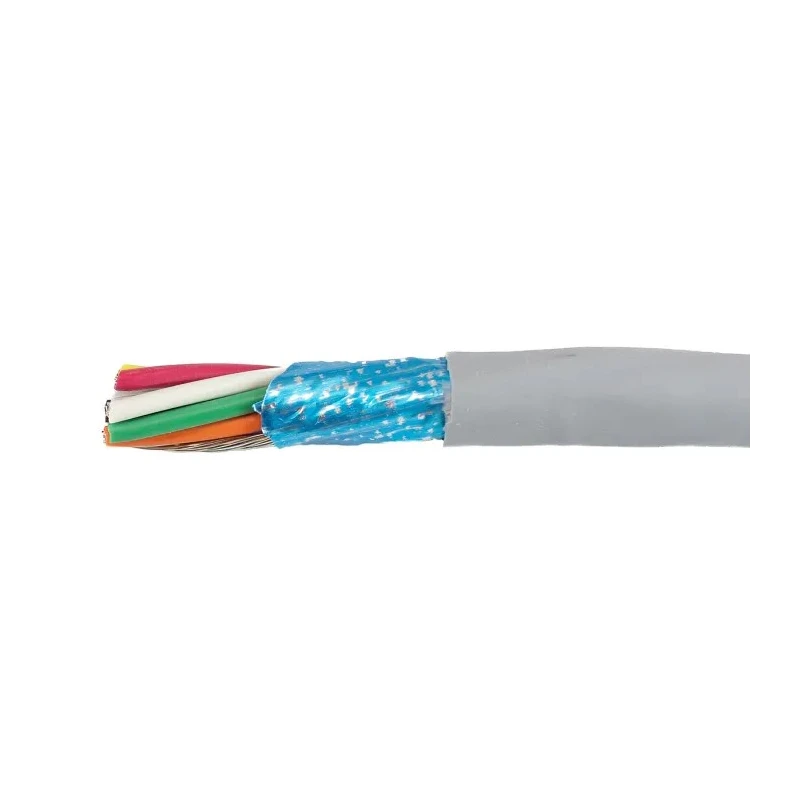

Alpha Wire 78138 SL005 Ecogen Ecocable Mini Screened Control Cable is a high-quality 8-core cable with 0.38mm² (22 AWG) tinned copper stranded conductors suitable for 300 Volt operation. It features a grey modified polyphenylene ether (mPPE) jacket and insulation that provides durability, chemical resistance, and environmentally friendly performance.

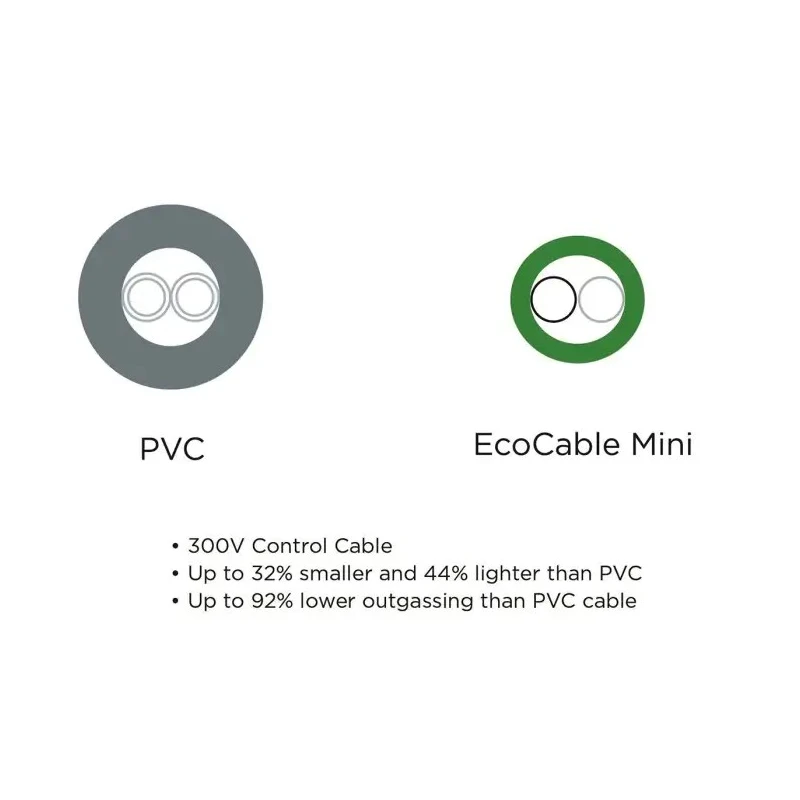

This screened cable includes an aluminium/polyester foil shield with tinned copper drain wire to protect against electromagnetic interference (EMI), ensuring reliable signal integrity even in industrial, automation, and communication applications. The cable's compact 4.85mm nominal diameter and thin jacket thickness contribute to a smaller, lighter cable compared to conventional PVC alternatives.
Temperature ratings from -40°C to +80°C allow the cable to function effectively in harsh environmental conditions, while zero halogen composition enhances safety during exposure to fire or heat. This cable is fully recyclable, supporting sustainable installations.
Typical applications include cabling for radio transmitters, electronic circuits, telecommunication systems, industrial automation controls, and studio setups. It also meets NFPA 79 guidelines to ensure protection against fire and electrical hazards in machinery.
The cable's 8 colour-coded cores (black, brown, red, orange, yellow, green, blue, violet) facilitate easy identification during installation. Compliant with international standards such as UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, and WEEE, guaranteeing global acceptance and performance reliability.
The modified polyphenylene ether insulation and jacket offer low outgassing and specific gravity of 1.03, contributing to lightweight cable assemblies. Foil shielding combined with tinned copper conductor improves electrical performance by reducing noise and interference.
Stranding of 19 strands per conductor provides flexibility and improved mechanical strength. This cable is ideal for electrical power and industrial cable requirements where space, weight, and environmental considerations are critical.
Explore top-quality Control Cables and electrical wiring in the Electronics & Electricals category at EnvMart for all your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this control cable is 80°C.
The nominal diameter of this model is 4.85mm.
This cable has 8 cores, which are color-coded as follows: black, brown, red, orange, yellow, green, blue, and violet.
The insulation is made from modified polyphenylene ether (mPPE), which provides durability and chemical resistance.
This control cable is rated for 300 volts.
The cable is available in a length of 30 meters.
It features a screened foil shield with an aluminum/polyester foil and a tinned copper drain wire to minimize electromagnetic interference.
This model complies with CE, CSA, and UL standards, ensuring quality and safety assurance.
The conductors are made of tinned copper stranded wire, which ensures excellent conductivity and corrosion resistance.
The minimum operating temperature for this cable is -40°C.
Each conductor consists of 19 strands, providing flexibility and improved mechanical strength.
The cable is halogen-free, providing enhanced safety during exposure to fire or heat.
