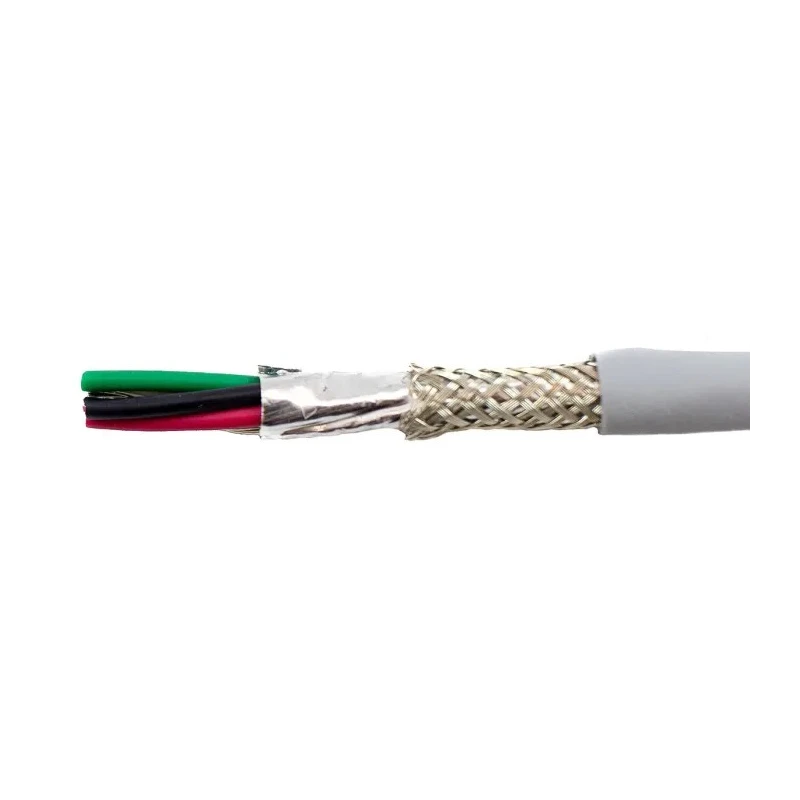

Alpha Wire Ecogen Ecocable Mini Control Cable, 4 Cores, 0.61mm² 20 AWG, Screened, 300V, 30 m, Grey Modified 78344 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78344 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.98mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.196 inch (4.98 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.203mm |
| Size of Strands | 0.203mm |
| Cable CSA | 0.61mm² |
| Conductors | 4, Black, Red, White, Green |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/32 |
Key Features
- The cable has a cross-sectional area of 0.61mm² (20 AWG) with 19 strands per conductor.
- It features a grey modified polyphenylene ether jacket that is halogen free and highly durable.
- The cable length is 30 meters with an outside diameter of 4.98mm.
- It operates at 300V with a temperature range from -40°C to +80°C.
- Supra-Shield foil and braid shielding provides excellent EMI protection.
- The cable is lightweight, fully recyclable, and has low outgassing characteristics.
- Suitable for communication, telecommunication, automation, radio transmitter, and NFPA 79 compliant industrial machinery applications.
Product Description
Alpha Wire 78344 SL005 Ecogen Ecocable Mini Control Cable is a multi-core screened control cable designed with a 0.61mm² (20 AWG) tin copper stranded conductor and a robust grey modified polyphenylene ether (mPPE) jacket.
This cable is rated for 300 volts and operates in a temperature range of -40°C to 80°C, making it suitable for harsh industrial environments and automation systems. It is halogen-free, reducing toxic emissions in fire situations, and features a lightweight design due to its innovative mPPE materials.
The Supra-Shield construction consists of triple layer aluminium/polyester/aluminium foil shielding combined with a tinned copper braid. This design ensures excellent resistance against electromagnetic interference (EMI), making it ideal for sensitive communication and control signal transmissions.
The cable length is 30 meters with an outside diameter of 4.98mm and a jacket thickness of 0.38mm. The stranded construction of 19 x 0.203mm strands per conductor provides flexibility and durability.
EcoCable Mini cables are fully recyclable and environmentally friendly, with low specific gravity and outgassing properties. They fulfill UL, CSA, and CE standards and comply with NFPA 79 for industrial machinery safety.
The cable's mPPE jacket and insulation result in a smaller wall thickness and lighter weight compared to PVC alternatives. It supports applications in communication, radio transmitters, telecommunication links, electronic circuits, and automation controls.
Suitable for use in industrial environments requiring robust, halogen-free, and shielded control cables.
This Control Cable is an excellent choice for industrial automation, electrical power distribution, and HVAC controls. The product supports the growing demand for eco-conscious cabling solutions with robust performance.
Explore more in our Electrical Power & Industrial Cables section at EnvMart for additional control and communication cable products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 300 volts.
It can operate at a maximum temperature of 80°C.
This control cable features 4 cores.
The conductors have a cross-sectional area of 0.61mm² (20 AWG).
The jacket is made of modified polyphenylene ether, and the insulation thickness is 0.18 mm.
The cable length is 30 meters with an outside diameter of 4.98mm.
It features Supra-Shield foil and braid shielding for excellent EMI protection.
Yes, the cable is halogen-free, reducing toxic emissions in fire situations.
It complies with UL, CSA, and CE standards, as well as NFPA 79 for industrial machinery safety.
It is suitable for communication, telecommunication, automation, and industrial machinery applications.
The conductors are made of tin copper wire.
Each conductor consists of 19 strands of 0.203mm.
