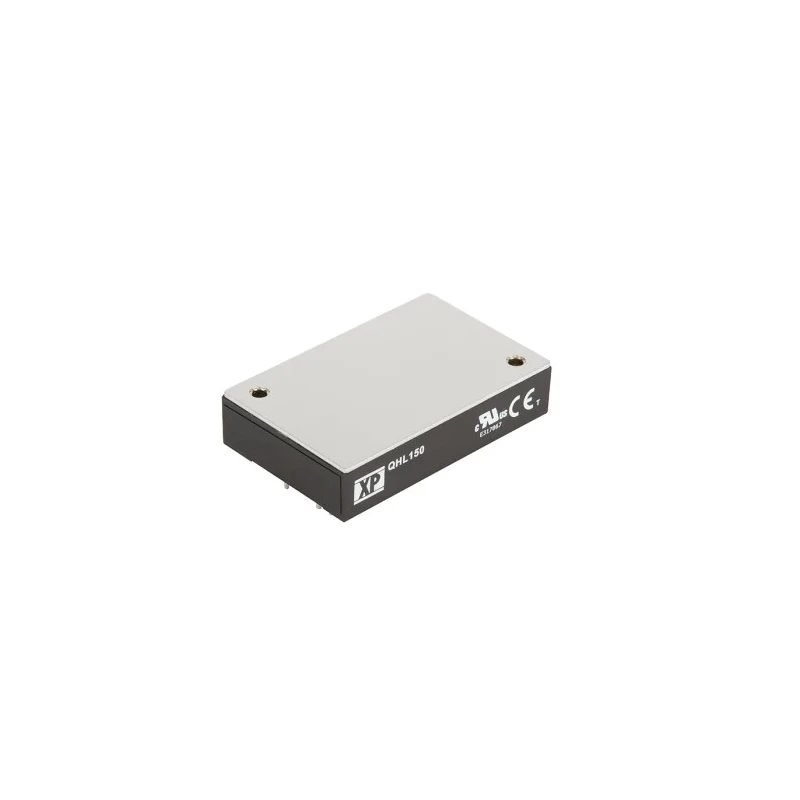

XP Power DC/DC Converter Quarter Brick 48V DC Output 3.2A 180-425V DC Input 150W Through Hole Mounting QHL150
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power QHL150 DC/DC Converter, 48V dc/ 3 |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 57.9mm |
| Model | QHL150 |
| Depth | 12.7mm |
| Gross Weight | 65g |
| Width | 36.8mm |
| Mount Type | Through Hole |
| Series | QHL150 |
| Maximum Operating Temperature | 100°C |
| Package Type | Quarter Brick |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 150W |
| Maximum Input Voltage | 425V dc |
| Minimum Input Voltage | 180V |
| Number of Pins | 8 |
| Output Voltage 1 | 48V dc |
| Output Current 1 | 3.2A |
| Isolation Voltage | 3kV ac |
Key Features
- The converter provides a maximum output power of 150W with 89% efficiency.
- Designed for thermal operation between -40°C to 100°C, suitable for harsh environments.
- Includes 3kV AC isolation and low ripple noise of 200mV peak-to-peak for stable performance.
- Compact dimensions of 57.9mm length, 36.8mm width, and 12.7mm depth fit standard quarter brick slots.
- Features remote On/Off control and output trim adjustment from -20% to +10% for flexible regulation.
- Robust design with 8 pins and a mean time between failures (MTBF) of 1,000,000 hours.
- Through hole mounting offers reliable mechanical and electrical connection.
Product Description
XP Power QHL150 DC/DC Converter QHL150 model delivers a regulated single output of 48V DC at a maximum current of 3.2A and output power of 150W. It accepts a wide input voltage range from 180V to 425V DC and is packaged in an industry standard quarter brick form factor suitable for through-hole mounting.
This converter provides excellent efficiency of 89% while maintaining low ripple and noise levels at 200mV peak-to-peak, enhancing the reliability and quality of sensitive electronic applications. The device features an isolation voltage rating of 3kV AC, ensuring safe operation in power distribution systems.
Operating temperature ranges from -40°C to +100°C, allowing use in demanding industrial, laboratory, and commercial environments. It includes protective functions such as overtemperature protection and remote On/Off control for integration flexibility.
The quarter brick package measures 57.9mm in length, 36.8mm in width, and 12.7mm in depth, weighing approximately 65 grams. This compact size facilitates space-efficient power solutions especially in distributed power architectures from AC front ends, PFC front ends, and battery systems.
Additional features include output voltage trimming from -20% to +10%, enabling precise voltage adjustments for system compatibility. The converter is designed for long-term reliability with an MTBF of one million hours and is manufactured in Taiwan, Province Of China.
The converter is ideal for power supply and distribution applications, industrial automation, telecommunications, and instrumentation. Its robust design and long operating life suit critical applications requiring dependable DC power conversion.
The product supports effective modular power system design and integration. Explore a wide selection of high-quality DC/DC Converters at EnvMart to find compatible power solutions meeting your industrial and commercial system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150W.
It accepts a wide input voltage range from 180V to 425V DC.
This converter has an efficiency rating of 89%.
The dimensions of the package are 57.9mm in length, 36.8mm in width, and 12.7mm in depth.
It provides a regulated output voltage of 48V DC at a maximum current of 3.2A.
The isolation voltage rating is 3kV AC.
The operating temperature range is from -40°C to 100°C.
It weighs approximately 65 grams.
It includes output trim adjustment from -20% to +10% for flexible regulation.
This unit is designed for through hole mounting.
The MTBF is rated at 1,000,000 hours.
It is suitable for power supply and distribution applications, industrial automation, telecommunications, and instrumentation.
