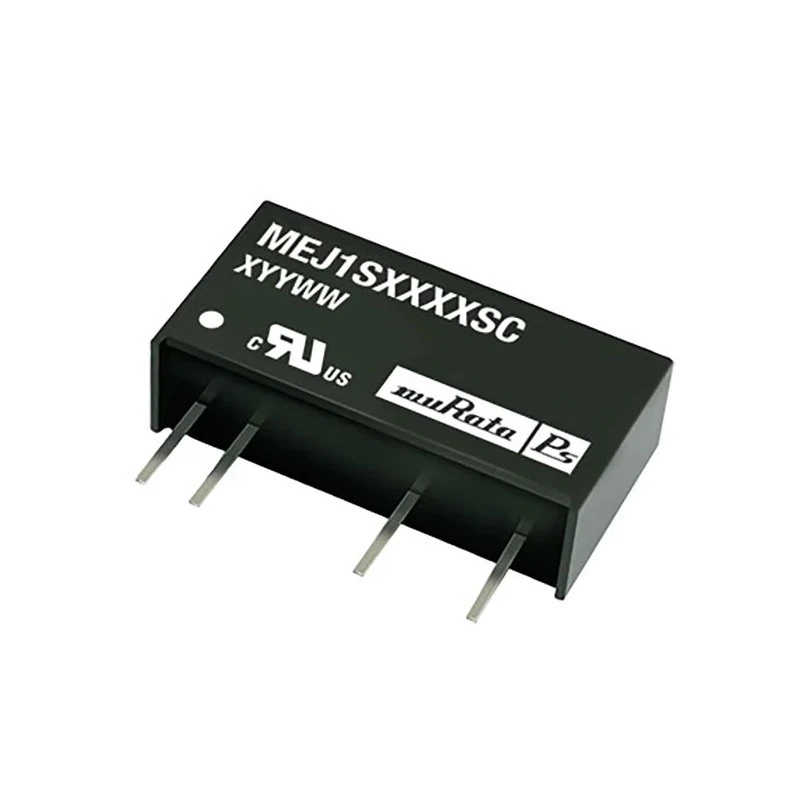

Murata Power Solutions Isolated 1W SIP DC/DC Converter, 9V DC Output, 5.5V/4.5V Input, Through Hole, Max 85°C MEJ1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MEJ1 DC/DC Converter, 9V dc |
| Brand | Murata Power Solutions |
| Efficiency | 74% |
| Length | 19.65mm |
| Model | MEJ1 |
| Depth | 12.65mm |
| Gross Weight | 2.1g |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | MEJ1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3939000h |
| Number of outputs | 1 |
| Ripple and Noise | 70mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | CRE, RoHS, UL |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 200mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 5.2kV dc |
| Output Current 2 | 111mA |
Key Features
- The converter offers an output current of 200 mA and maximum output power of 1 W.
- It provides a high isolation voltage of 5.2 kV DC between primary and secondary circuits.
- Features a 7-pin SIP package with dimensions of 19.65mm length, 9.8mm width, and 12.65mm depth.
- Typical energy efficiency is approximately 74%, optimized for low power applications requiring safety and isolation.
- Operating temperature range is from -40°C to 85°C, suitable for demanding industrial environments.
- Complies with CRE, RoHS, and UL standards ensuring safety and environmental compliance.
- Robust design with UL 94V-0 rated encapsulation and toroidal magnetics inside.
- Ideal for medical equipment safety barriers, IGBT drivers, control systems, and low power industrial applications.
Product Description
Murata Power Solutions MEJ1 is a series of isolated 1 Watt SIP single-output DC/DC Converters designed to provide reliable power conversion with high safety and isolation standards. The MEJ1 model features a 9V DC output at 200 mA, with input voltages ranging from 4.5V to 5.5V DC. Packaged in a compact 7-pin SIP through-hole mount form factor, it offers a small footprint (19.65mm x 9.8mm x 12.65mm) suitable for integration into various industrial and medical power designs.
This converter complies with the third edition of medical safety standards, providing 2 MOOPs based on 200 Vrms working voltage between primary and secondary circuits and 1 MOOP between the primary and enclosure, enhancing operator protection in critical applications. The device's maximum isolation voltage is 5.2 kV DC, making it ideal for applications requiring a high degree of isolation such as agency-approved safety barriers for medical equipment.
Featuring a high energy efficiency of 74%, the MEJ1 series delivers stable power with a ripple and noise of 70 mV Pk-Pk, supporting low noise voltage-sensitive circuits. It operates reliably across a broad temperature range from -40°C to +85°C. The encapsulated SIP package incorporates UL 94V-0 flame-retardant material and toroidal magnetics for enhanced durability and thermal regulation.
Typical usage includes IGBT drivers, control systems, medical instrumentation, and other low power electronics requiring safety isolation. The MEJ1 converter is pin compatible with Murata's MEV, NMV, NMK, MEJ2, and NMJ series, simplifying system upgrades and replacements.
The converter delivers a stable 9 V DC output at up to 200 mA current. It accepts supply voltages from 4.5 to 5.5 V DC, ensuring wide input compatibility. 7-pin SIP package offers through-hole mount ease and compact size.
Isolation voltage rated at 5.2 kV DC enhances electrical safety. Compliant with RoHS and UL safety certifications for quality assurance. High reliability with MTBF of approximately 3.9 million hours. Energy efficient conversion at 74% typical efficiency reduces heat generation.
Suitable for industrial, medical, and control system applications. Operating temperature from -40°C to +85°C for harsh environment use.
Murata Power Solutions' MEJ1 series stands as a trusted component for engineers designing isolated high-reliability power solutions. Explore EnvMart's range for more power converters and DC/DC modules designed to meet stringent industry demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a stable output voltage of 9V DC with a maximum output current of 200 mA.
The converter accepts input voltages ranging from 4.5V to 5.5V DC.
The maximum isolation voltage is rated at 5.2 kV DC, enhancing electrical safety in applications.
The SIP package has dimensions of 19.65mm in length, 9.8mm in width, and 12.65mm in depth.
The typical energy efficiency is approximately 74%, which helps in reducing heat generation during operation.
It operates reliably across a temperature range from -40°C to 85°C, suitable for harsh environments.
It complies with CRE, RoHS, and UL standards, ensuring safety and environmental compliance.
The ripple and noise is specified at 70 mV Pk-Pk, which supports low noise voltage-sensitive circuits.
This model features a single output, providing a straightforward power solution.
The gross weight of this converter is 2.1 grams, making it lightweight for integration into various applications.
It is ideal for use in medical instrumentation, IGBT drivers, control systems, and other low power industrial applications.
Yes, it is pin compatible with Murata's MEV, NMV, NMK, MEJ2, and NMJ series, facilitating easy upgrades and replacements.
