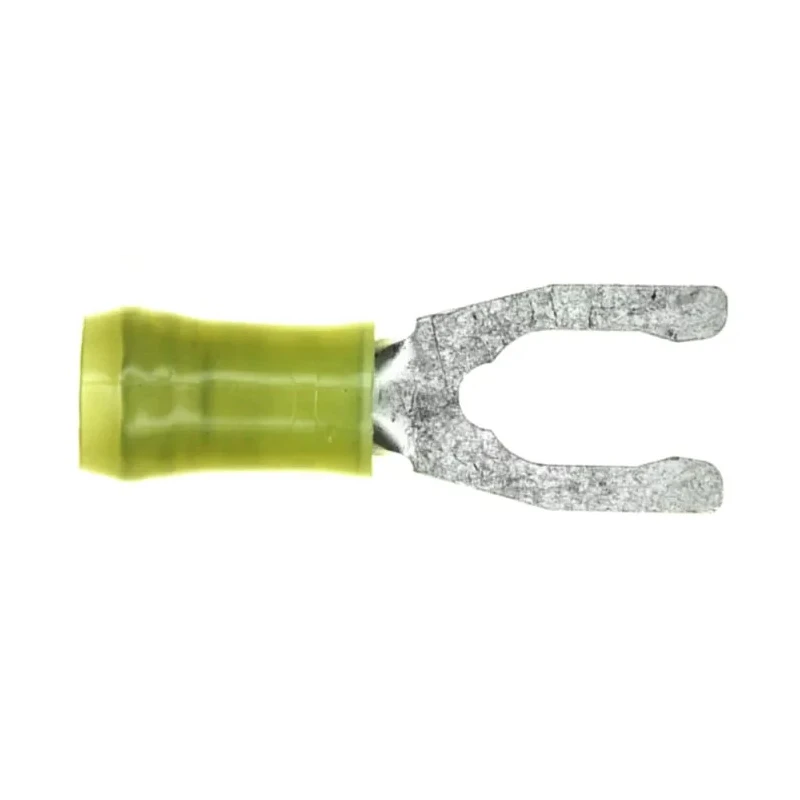

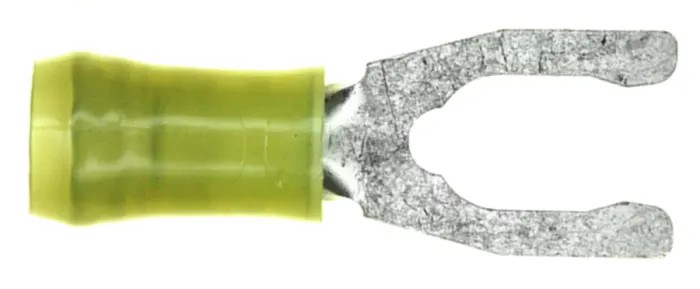

TE Connectivity Insulated Fork Terminal 12 AWG to 10 AWG M6 Stud Size Nylon Yellow 52433-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.99mm |
| Model | 52433-1 |
| Width | 11.1mm |
| Insulation | Insulated |
| Overall Length | 32.74mm |
| Contact Material | Phosphor Bronze |
| Series | 52433 |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M6 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Insulated with color-coded nylon sleeve to ensure easy wire size identification.
- Features copper sleeve surrounding barrel to support wire insulation after crimping.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Designed funnelled wire entry prevents wire strand turn back and facilitates fast wire insertion.
- Suitable for a wide range of applications including instruments, lighting, power supplies, and aerospace.
- Wire size range from 12 AWG (3 mm²) to 10 AWG (6 mm²) with a thickness of 0.99 mm.
- Overall length of 32.74 mm and width of 11.1 mm providing a compact design.
Product Description
TE Connectivity 52433-1 insulated fork terminal is engineered for reliable electrical connections in diverse industrial and commercial applications. It supports wire sizes from 12 AWG to 10 AWG, designed with a robust high conductivity copper body and a yellow nylon insulated sleeve for easy identification and protection against abrasion.
The copper sleeve that surrounds the barrel enhances insulation support post-crimping, reducing the risk of insulation fraying or conductor breakage when the wire bends. The serrated wire barrel ensures a secure crimp providing maximum contact and tensile strength, critical for dependable circuit performance.
Its funnelled wire entry design facilitates rapid and easy wire insertion while preventing back-stranding of wires, which is essential in high-speed manufacturing environments. The fork terminal is suitable for instrumentation, control panels, power supplies, lighting, transportation, lifting equipment, motor assemblies, aerospace, and appliances.
The terminal conforms to superior manufacturing practices though it has no specific certifications listed. The compact dimensions of 32.74 mm length and 11.1 mm width combined with a thickness of 0.99 mm allow it to be used efficiently in space-sensitive applications.
High conductivity copper body for excellent electrical flow. Nylon insulated sleeve, colour coded yellow for wire size 12 AWG to 10 AWG identification. Copper sleeve supports wire insulation durability after crimping. Serrations provide improved electrical contact and mechanical strength.
Funnelled wire entry design reduces wire strand damage during assembly. Broad application spectrum including industrial, instrumentation, aerospace, and power systems. Compact design offering ease of installation where space is limited.
Each PIDG terminal is manufactured with precision to ensure uniform insulation thickness and reliable crimps across production batches. This product is ideal for users requiring consistent terminal performance in demanding environments.
Explore the range of high-quality Fork Terminals and related wire terminal products on EnvMart for reliable wiring solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated fork terminal supports wire sizes from 12 AWG (3 mm²) to 10 AWG (6 mm²).
The overall length of this terminal is 32.74 mm, with a width of 11.1 mm and a thickness of 0.99 mm.
The contact material is phosphor bronze, which is known for its excellent conductivity.
It features a nylon insulated sleeve, which is color-coded yellow for easy identification of wire size.
This model is designed for an M6 stud size.
The funnelled wire entry design facilitates rapid and easy wire insertion while preventing wire strand turn back, enhancing assembly efficiency.
It is suitable for a wide range of applications including instrumentation, control panels, power supplies, lighting, and aerospace.
The serrated wire barrel provides maximum contact and tensile strength after crimping, ensuring reliable electrical connections.
The country of origin for this insulated fork terminal is India.
The contact plating is tin, which helps improve conductivity and protect against corrosion.
This product does not have specific certifications listed, but it is manufactured to superior practices.
The thickness of this insulated fork terminal is 0.99 mm.
