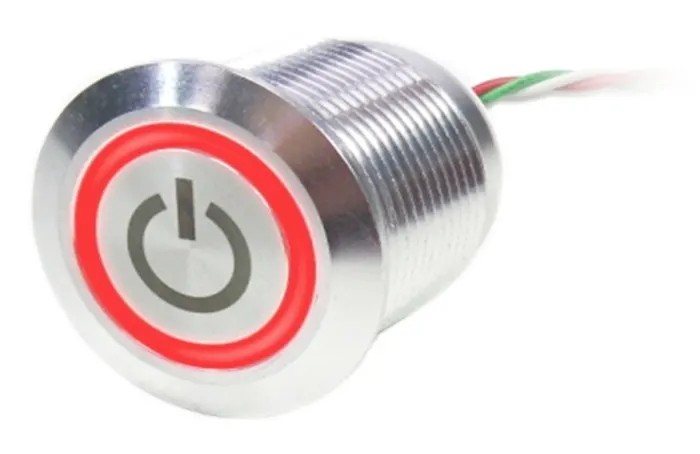

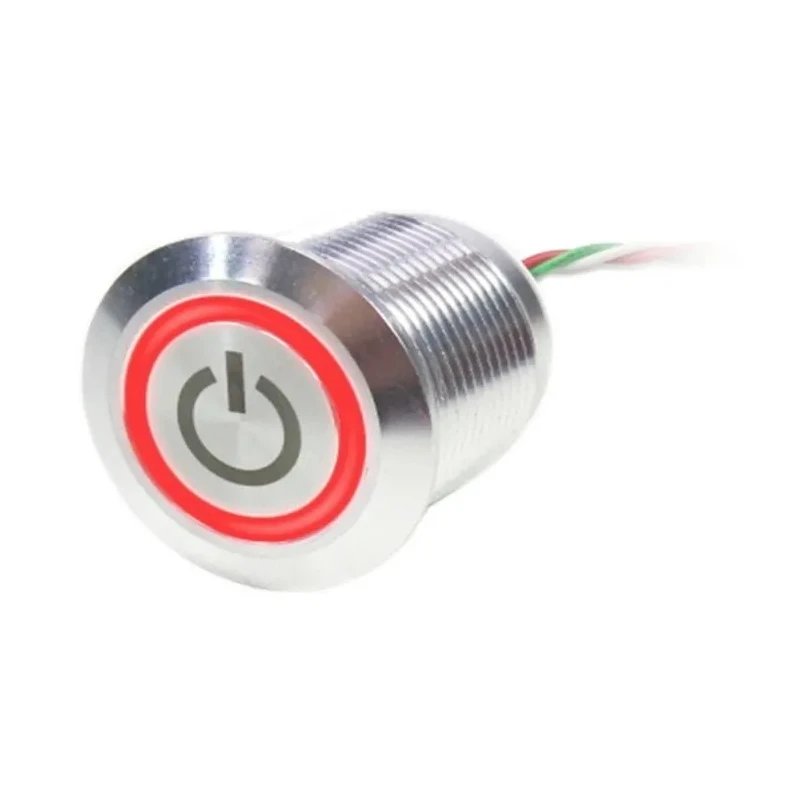

RS PRO Capacitive Switch Latching NC Illuminated Red Green IP68 Polycarbonate Brass 8232738P

RS PRO 8232738P Capacitive switch features a latching mechanism with normally closed functionality, designed with an illuminated red and green LED configuration to provide clear operational feedback. This switch has a sturdy polycarbonate housing and brass contacts, ensuring durability and reliability in industrial and commercial installations.

With an IP68 ingress protection rating, the switch is highly resistant to dust and water, making it ideal for challenging environments such as food processing and medical industries where hygiene and moisture resistance are critical. The capacitive sensing technology allows it to detect the slightest touch, including activation through gloves, enhancing operational safety and convenience.

The switch is rated for maximum input voltage of 30V dc and minimum input voltage of 5V dc, with a current rating of 1.5A. It operates reliably across a wide temperature range from -40°C to 125°C and includes UV resistance for enhanced outdoor durability.

Physical dimensions of 20 mm height, width, and depth provide a compact form factor, and a 300 mm wire length facilitates flexible installations. The metallic housing and actuating surface contribute to a professional finish and mechanical robustness.

Detects even the slightest touch for enhanced sensitivity. Flexible usage options across various industrial and commercial applications. Auto-calibration adapts the switch to changing environmental conditions. Illumination via red and green LEDs supports clear visual feedback.

Polycarbonate housing offers toughness and resistance to harsh environments. Nominal voltage input range between 5V dc and 30V dc. Durable brass contacts for long service life. IP68 protection ensures dust-tight and continuous immersion resistance.

Wide operating temperature range from -40°C to 125°C. UV resistant against UVA and UVB exposure. 300 mm wire length for flexible wiring.

This RS PRO capacitive switch is suited to industrial automation, medical equipment, and food processing machines requiring high reliability and environmental resistance. Explore more at EnvMart in the Capacitive Switch category.
