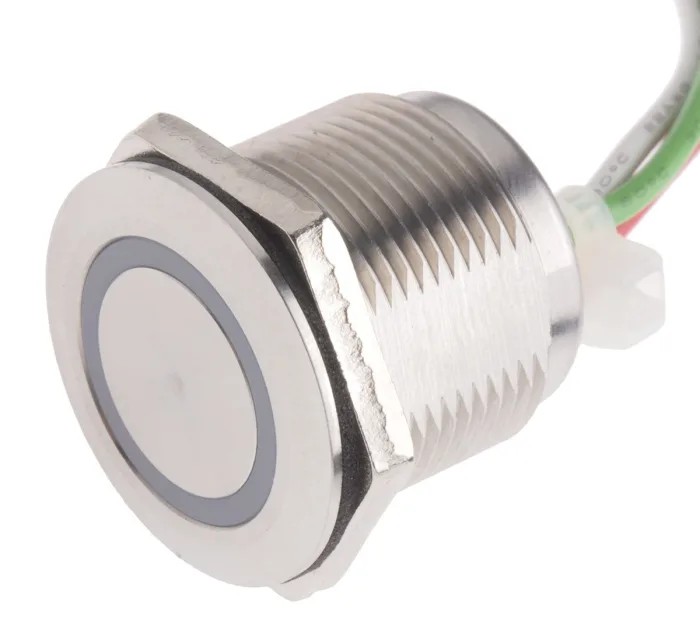

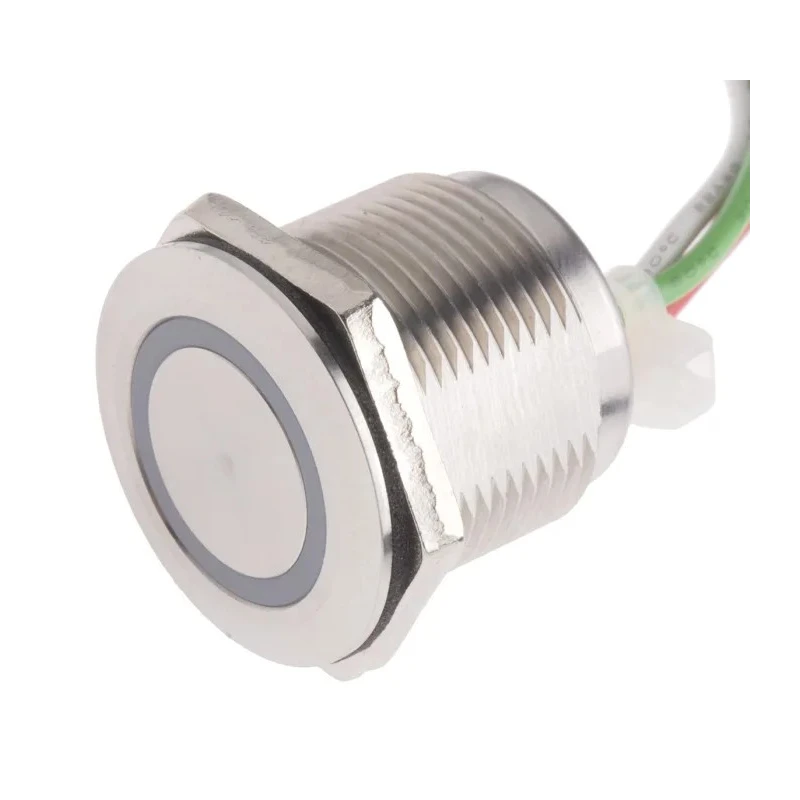

RS PRO Capacitive Switch Latching Normally Open Illuminated Blue IP68 Brass 8232766P
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 20mm |
| Model | 8232766P |
| Depth | 20mm |
| IP Rating | IP68 |
| Width | 20mm |
| Wire Length | 300 mm |
| Housing Material | Polycarbonate |
| Contact Material | Brass |
| Current Rating | 1.5A |
| Switch Type | Capacitive |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| UV Resistance | UVA / UVB |
| Maximum Input Voltage | 30V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 5V dc |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Metallic |
| Housing Colour | Metallic |
Key Features
- The switch detects the slightest touch for sensitive operation.
- Made from polycarbonate housing with brass contacts for durability.
- Supports input voltage range from 5V dc to 30V dc.
- Operates reliably between -40°C and 125°C temperature.
- Rated current is 1.5A AC with UV resistance.

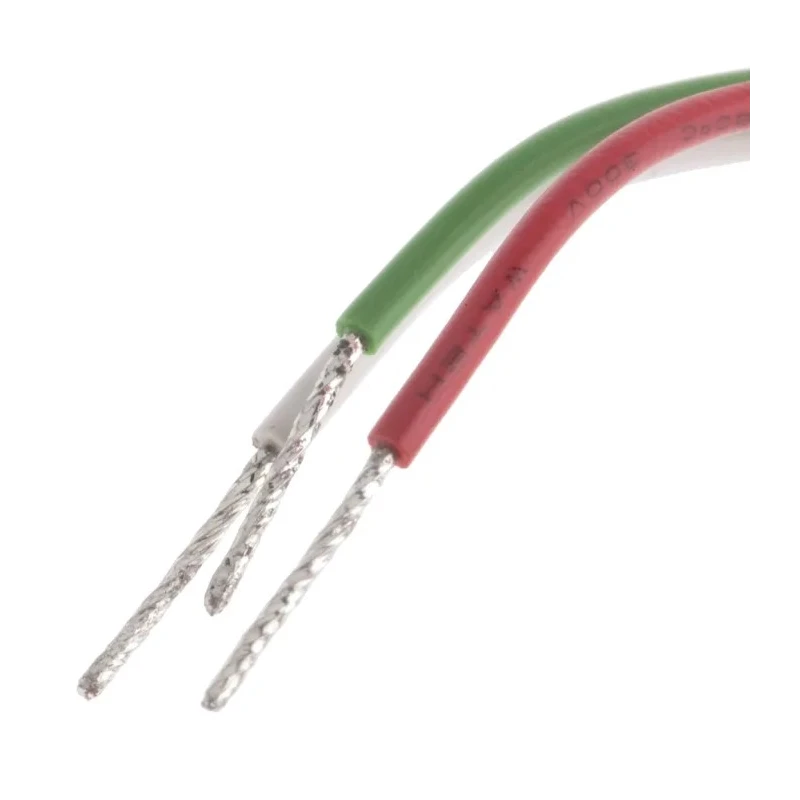

- Includes a 300 mm wire length for easy wiring.
- Suitable for harsh environments with IP68 ingress protection.
- Ideal for food and medical industry applications using gloved hands.
Product Description
RS PRO 8232766P capacitive switch is a highly reliable and durable latching switch with normally open functionality. It is illuminated with a blue LED and constructed with a polycarbonate housing complemented by brass contacts, ensuring strong resistance to environmental factors such as moisture and dirt. The compact switch measures 20 mm in height, width, and depth, making it easy to integrate into various equipment.
This switch operates within a voltage range of 5V dc to 30V dc and handles a current rating of 1.5A AC. It supports UV resistance (UVA / UVB), helping maintain longevity under sunlight exposure. With an IP68 rating, the switch offers complete protection against dust ingress and water immersion, suitable for demanding industrial environments.
The operating temperature ranges from -40°C up to 125°C, accommodating extreme conditions. The switch comes with a 300 mm wire length for easy installation. Its auto calibration feature enables adaptive sensitivity, ensuring reliable activation even by gloved hands, making it ideal for applications in the food and medical industries.
Features and benefits include sensitive touch detection, illumination with various color options, and robust construction for long-lasting use in harsh environments. This product is RoHS compliant, indicating adherence to safety and environmental standards.
The switch detects the slightest touch for sensitive operation. Made from polycarbonate housing with brass contacts for durability. Supports input voltage range from 5V dc to 30V dc. Operates reliably between -40°C and 125°C temperature.
Rated current is 1.5A AC with UV resistance. Includes a 300 mm wire length for easy wiring. Suitable for harsh environments with IP68 ingress protection. Ideal for food and medical industry applications using gloved hands.
This RS PRO capacitive switch model 8232766P is suited for various industrial, laboratory, medical, and food processing applications where high sensitivity and environmental resistance are essential. Browse the RS PRO Capacitive Switch category for more industrial electrical switches and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports an input voltage range from 5V DC to 30V DC.
It has a rated current of 1.5A AC.
This model measures 20 mm in height, width, and depth.
It operates reliably between -40°C and 125°C.
It has an IP68 rating, providing complete protection against dust ingress and water immersion.
The housing is made from polycarbonate and the contacts are brass, ensuring durability.
Yes, it features sensitive touch detection, making it ideal for operation with gloved hands, especially in food and medical applications.
The switch is illuminated with a blue LED.
Yes, it is resistant to UVA and UVB, which helps maintain longevity under sunlight exposure.
It includes a wire length of 300 mm for easy installation.
This switch is RoHS compliant, indicating adherence to safety and environmental standards.
It operates as a latching switch with normally open functionality.
