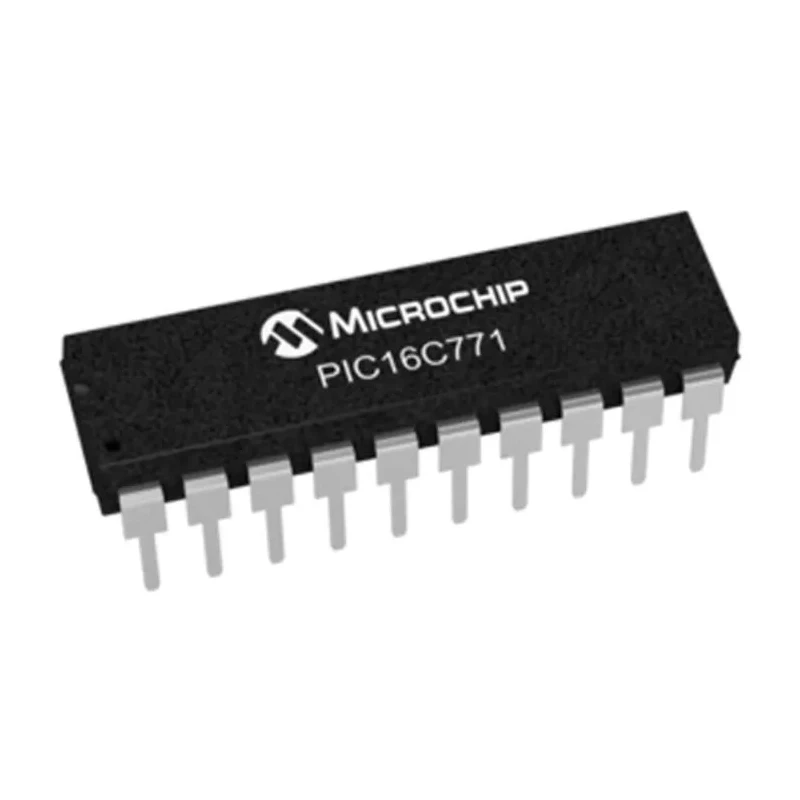

Microchip 8-bit PIC Microcontroller PIC16C771-I/P, 20 MHz, 7kB OTP EEPROM, 20-Pin PDIP

Microchip PIC16C771-I/P is an 8-bit PIC microcontroller designed for embedded system applications requiring reliable performance and legacy support. It operates at a maximum clock frequency of 20 MHz and contains 7kB OTP EEPROM program memory with 256 bits of RAM, enabling efficient code execution and data storage.

The device comes in a 20-pin PDIP package suitable for through-hole mounting, offering 15 programmable I/O pins. This microcontroller family uses RISC architecture with an 8-level hardware stack and 35 14-bit instructions for optimized instruction processing. It includes a 6-channel 12-bit ADC for high-resolution analog signal conversion.

Additional features include enhanced capture, compare, PWM (ECCP) modules for precise motor control and signal generation, multiple timers (two 8-bit and one 16-bit), and a Master Synchronous Serial Port (MSSP) supporting SPI and I2C for communication.

Robustness is ensured through integrated Watchdog Timer (WDT), Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), and Programmable Brown-out Reset (PBOR), supporting reliable operation in varied environments.

This microcontroller is ideal for industrial automation, electronic instrumentation, laboratory devices, manufacturing controls, and embedded system designs especially in legacy applications where OTP EEPROM memory is preferred.

Operates at 20 MHz clock frequency. 7kB OTP EEPROM program memory with 256-bit RAM. 20-pin PDIP through-hole package. 15 programmable input/output pins. RISC architecture with 35 instructions. 6-channel 12-bit ADC for analog inputs.

ECCP module supports advanced PWM control. Includes watchdog and power management timers. Supports SPI and I2C communication protocols. Suitable for industrial, lab, and embedded electronics. Explore more Microcontrollers and related components at EnvMart for your electronic design needs.
