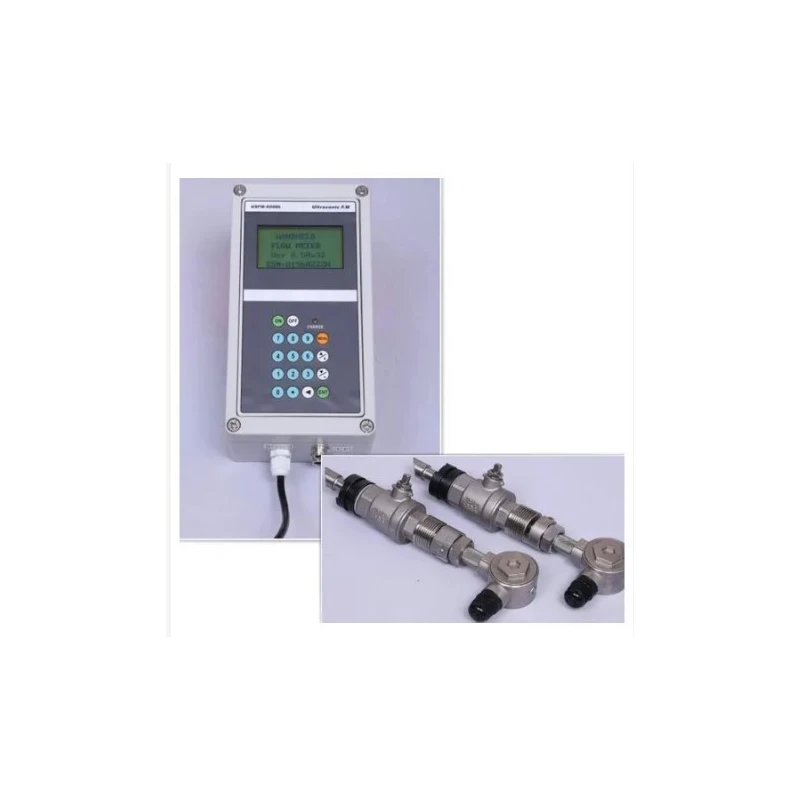

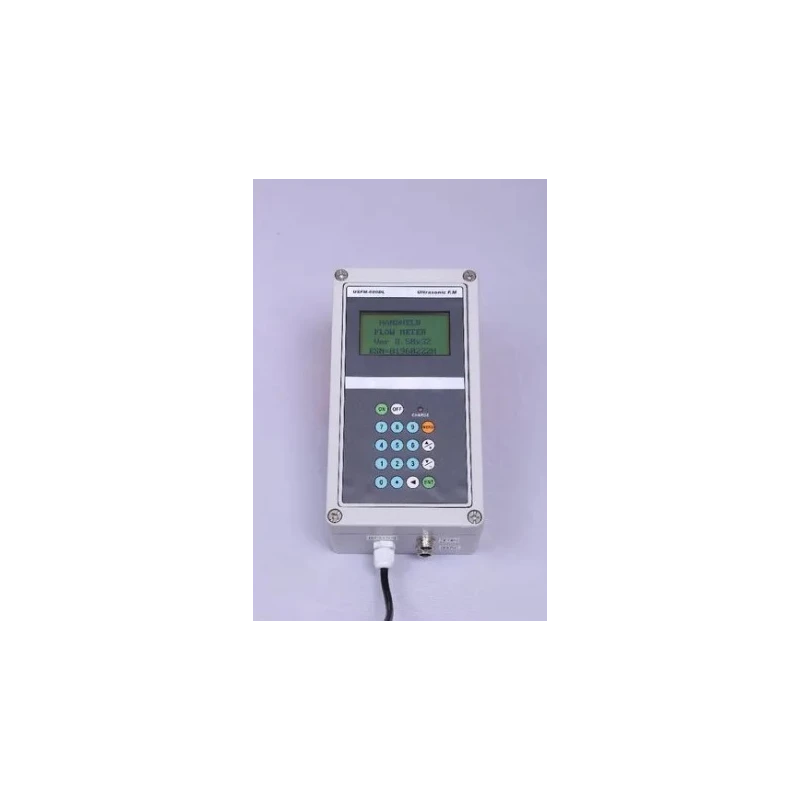

Acorn Controls Ultrasonic Flow Meter Fixed Type With Insertion Sensor And In Built Data Logger USFM600DL

Name: Acorn Controls Ultrasonic Flow Meter Fixed Type With Insertion Sensor And In Built Data Logger USFM600DL
Brand: ESPL
SKU: ACDTZ
Price: 1381.15 USD
Availability: InStock



SKU ACDTZ Category Flow Meter Brand ESPL Condition New

Specifications

Accuracy	TypicallyLess Than +-1% above 0.5m/s Max +-2%
Display	4 lines x16 character Back-lit Alphanumeric
Warranty	1 Year
Brand	Acorn Controls
Material	All metalsmost plastics & lined pipe
Power	Internal rechargeable battery
Packaging Type	Corrugated Box
Applications	Industrial
Temperature range	Zero to Seventy DegCel. for standard and extend upto one hundred sixty for high temperature
Pipe Size	DN -25mm to 3000mm ( as per Transducers)
Model	USFM600DL Wall Mounted U/S FM with Logger
Protection Class	IP65
Velocity	+-0.1 to +-32 mtrs /s bi-directional
Type Of Data Logger	Digital Data Logger
No. Of Channels	Single Channel
Computer Interface	RS232C (with USB interface cable optional with Down load utility by Acorn Controls)
Transducer Cable	Standard 2 x 5m long

Key Features

High Reliability & Longlife,Excellentapplication &Service supported by flow metering experts

Product Description

Acorn Controls Ultrasonic Flow Meter Fixed Type With Insertion Sensor And In Built Data Logger, USFM600DL is based on the principle that sound waves traveling in the direction of flow of the fluid require less time than when traveling in the opposite direction. A typical application for an Ultrasonic Flow Meter is measuring flow of liquid in full pipes, also measurement of liquids such as water, wastewater, acids and solvents, chemicals and hydrocarbons and oils, also to monitor and control heating, ventilation and air conditioning systems.

High durability
Easy to operate

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The accuracy of this ultrasonic flow meter is typically less than ±1% above 0.5 m/s, with a maximum accuracy of ±2%.

The operating temperature range for the USFM600DL is from 0 to 70 degrees Celsius, extendable up to 160 degrees Celsius for high-temperature applications.

This model is compatible with pipe sizes ranging from DN 25mm to 3000mm, depending on the transducers used.

It includes a digital data logger for recording flow data.

The flow meter is powered by an internal rechargeable battery.

The USFM600DL has a protection class rating of IP65, indicating it is dust-tight and protected against water jets.

The velocity measurement range for this flow meter is ±0.1 to ±32 meters per second in a bi-directional flow.

It features a 4 lines x 16 character back-lit alphanumeric display for easy reading of measurements.

This model comes with an RS232C computer interface, and a USB interface cable is optional for downloading data.

It can measure flow through all metals, most plastics, and lined pipes.

This ultrasonic flow meter supports a single channel for flow measurement.

This ultrasonic flow meter is suitable for industrial applications, including measuring flow of liquids such as water, wastewater, and various chemicals.
